- Place of Origin:CN;GUA
- Weight:38kg
- Size:(L)552 *(W)110 *(H)239 *(TH)239mm
- Voltage:12v
- Model Number:FL12-125Ah
- Brand Name:CSPOWER
- Maintenance Type:Free
- Nominal Capacity:125Ah
- Sealed Type:Sealed
- Usage:ups, solar, inverter, telecom
1. CSPOWER Deep Cycle storage battery structure
2. CSPOWER Front Terminal deep cycle gel battery for Telecom /Solar specificaiton
| FL12-125 | |||
| Nominal Voltage | 12V (6 cells per unit) | ||
| Design Floating Life @ 25℃ | 12 Years | ||
| Nominal Capacity @ 25℃ | 10 hour rate @12.5A,10.8V | 125Ah | |
| Capacity @ 25℃ | 20hour rate (6.63A,10.8V) | 132.6Ah | |
| 5 hour rate (22.0A,10.5V) | 1100Ah | ||
| 1 hour rate (79.8A,9.6V) | 79.8Ah | ||
| Internal Resistance | Full Charged Battery @ 25℃ | ≤4.9mΩ | |
| Ambient Temperature | Discharge | -20℃~60℃ | |
| Charge | -10℃~60℃ | ||
| Storage | -20℃~45℃ | ||
| Max.Discharge Current | @ 25℃ 750A(5s) | ||
| Capacity affected by Temperature (10 hour ) | 40℃ | 105% | |
| 25℃ | 100% | ||
| 0℃ | 85% | ||
| -15℃ | 65% | ||
| Self-Discharge @ 25℃per Month | 3% | ||
| Charge (Constant Voltage) @ 25℃ | Standby Use | Initial Charging Current Less than 32.0A Voltage 13.6-13.8V | |
| Cycle Use | Initial Charging Current Less than 32.0A Voltage 14.4-14.9V | ||
| Dimension (mm*mm*mm) | Length(mm) 562±1 Width(mm) 114±1 Height(mm) 188±1 Total Heigth(mm) 188±1 | ||
| Weight (kg) | Weight(kg) 38.5±3% | ||
Summary for front terminal gel battery
As a well renowned front access lead acid battery manufacturer in China, CSPOWER offers the widest selection of front access AGM batteries and GEL VRLA batteries. The gel technology has numerous superiorities over the equivalent AGM battery range, especially for telecommunication applications.

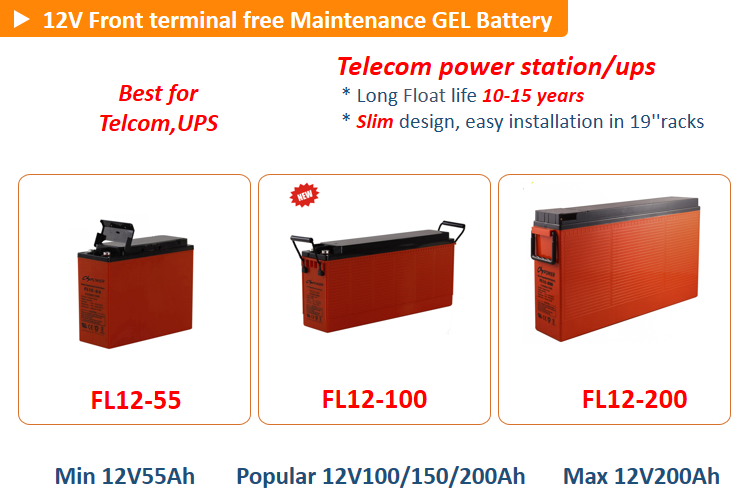

The FL type front terminal battery comes with long lasting design life and front access connections for fast, easy installation and maintenance, and is ideally suitable for telecom outdoor equipment, renewable energy systems and other severe environments.
Features for telecom battery
1. This stationary battery comes with a superior gel electrolyte where sulfuric acid is evenly mixed with silica fume and acid layering does not exist.
2. The electrolyte is gel like and immobile, which enables no leakage and uniform reaction of battery plates.
3. Serving as perfect power supply equipment, the front access lead acid battery is designed with slim shape. Front access terminal connection is convenient for installation and maintenance, and space serving.
4. Radial type grid design and tight assembly technology enable prominent high rate discharge performance for our GEL VRLA battery.
5. Due to a unique design, the electrolyte volume of this battery can not reduce in use, and it requires no watering during service life.
6. Special anti-corrosion grid alloy is utilized so that the energy storage device comes with more than 12years of design life at 25degree.
7. High purity raw materials ensure super low battery self discharge.
8. Thanks to the use of gas recombination technology, our industrial battery boasts extremely high seal reaction efficiency and yields no acid mist, thus friendly and pollution-free to the environment.
9. By means of special design and high reliable sealing technology, the battery is well sealed, thus ensuring definite safety.
12v 125ah front terminal telecom battery maintenance free batteries
All our energy storage batteries meet:
ISO9001, ISO14001, OHSAS18001, IEC61427, CE-EMC; CE-LVD and Solar Product Certification, etc.
Deep Cycle Gel battery Application
Telecom, Electric Utilities, Control Equipments, Security Systems, Medical Equipments, UPS systems, Railroad Utilities, Photovoltaic Systems, Renewable Energy System and so on.
CSPOWER BATTERY TECH CO.,LTD is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Q: Can you print my logo on the battery cover?
A: Yes, OEM is available,we can print your logo on the battery case freely. Welcome to send us your logo design and dicuss with us about the details.
Q: How long is your delivery time?
A: Usually it takes about 10-20 days for production varies with products.Urgent delivery it in 5days
Q: What is your warranty policy?
A: We provide 3 ~ 5 years different warranty.
Q: Why Choose CSPOWER?
A: 1) Cspower had specilized at solar/ups battery since 2003.
2) 20000KWH production capacity to guarantee the best deliver time
3) Comprehensive certificates approval: CE / ISO / IEC
4) A professional experienced team to provide you high-quality service before and after sale.
