- Place of Origin:CN;GUA
- Voltage:12v
- Sealed Type:Sealed
- Maintenance Type:Free

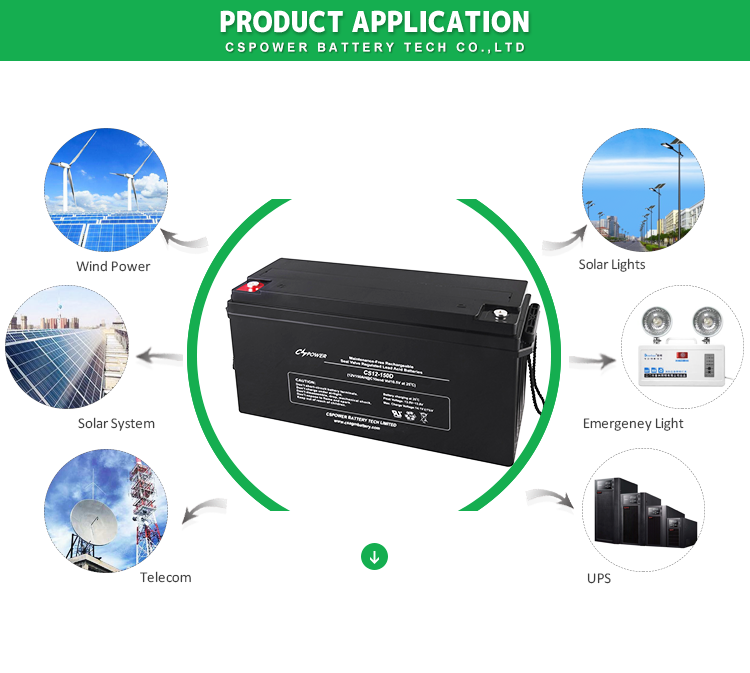

- Usage:UPS systems, Inverter;Solar&Wind; Emergency Power Systems;Telecom
- Brand Name:CSPOWER/ OEM Brand
- Model Number:CS12-150
- Size:484*171*241*241 (mm)
- Weight:43.5kg/PC
- Nominal Capacity:150AH
12V 150ah Deep Cycle AGM VRLA Storage Battery for UPS
| 1. 30% more cyclic life through innovation at the PAM additives 2. Long life expectancy of 10 years in floating condition 3. Thick flat plate with high Tin low Calcium alloy 4. Wide operating temperature range from -20 °C to 50°C 5. 3% Low self-discharge rate 6. Very good deep cycle performance: up to 700 cycles @50% DOD 7. Excellent deep discharge recovery capability. |  |

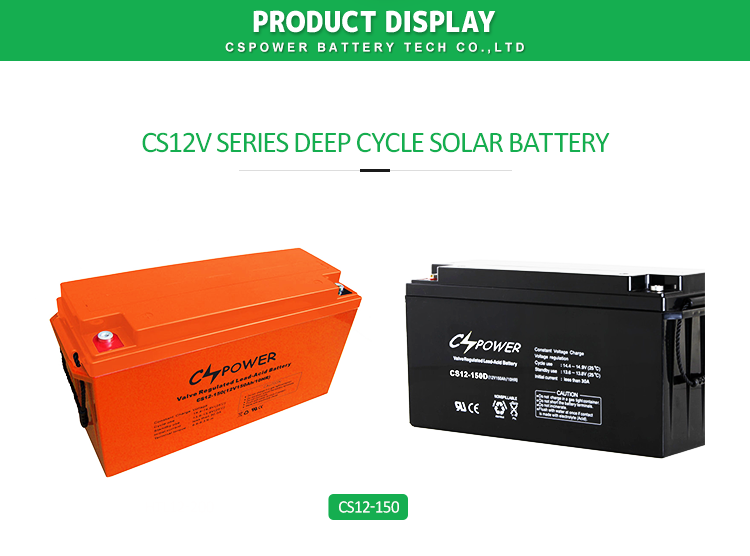

CS12-150 maintenance free deep cycle battery12v 150Ah
- 30% more cyclic life through innovation at the PAM additives
- Long life expectancy of 10 years in floating condition
- Thick flat plate with high Tin low Calcium alloy
- Wide operating temperature range from -20 °C to 50°C
- 2%Low self-discharge rate
- Very good deep cycle performance: up to 500 cycles @80% DOD
- Excellent deep discharge recovery capability
2. CS12-150 maintenance free deep cycle battery12v 150Ah specificaiton

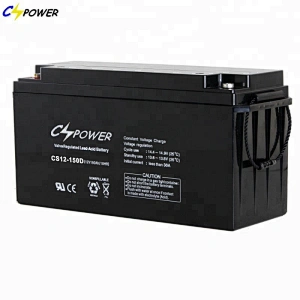

CS12-150D
Nominal Voltage
12V (6 cells per unit)
Design Floating Life @ 25℃
10 Years
Nominal Capacity @ 25℃
10 hour rate @15.0A,10.8V
150Ah
Capacity @ 25℃
20 hour rate (8.03A, 10.8V)
160.6Ah
5 hour rate (27.4A, 10.5V)
137Ah
1 hour rate (87.4A,9.6V)
87.4Ah
Internal Resistance
Full Charged Battery @ 25℃
≤3.5mΩ
Ambient Temperature
Discharge
-15℃~45℃
Charge
-15℃~45℃
Storage
-15℃~45℃
Max.Discharge Current
@ 25℃ 900A(5s)
Capacity affected by Temperature (10 hour )
40℃
105%
25℃
100%
0℃
85%
-15℃
65%
Self-Discharge@25℃per Month
3%
Charge (Constant Voltage) @ 25℃
Standby Use
Initial Charging Current Less than 37.5A Voltage 13.6-13.8V
Cycle Use
Initial Charging Current Less than 37.5A Voltage 14.4-14.9V
Dimension (mm*mm*mm)
Length 484±1 * Width 171±1 * Height 241±1 (Total Height 241±1)
Weight (kg)
43.5±3%
More capacity of CS series Vrla agm battery, please kindly Clickhere
Q: Can you print my logo on the battery cover?
A:Yes, OEM is available,we can print your logo on the battery case freely. Welcome to send us your logo design and discuss with us about the details.
Q:How long is your delivery time?
A:Usually it takes about 10-20 days for production varies with products. Urgent delivery it in 5days.
Q: What is your warranty policy?
A: We provide 1 ~ 5 years different warranty.
Q:Why Choose CSPOWER?

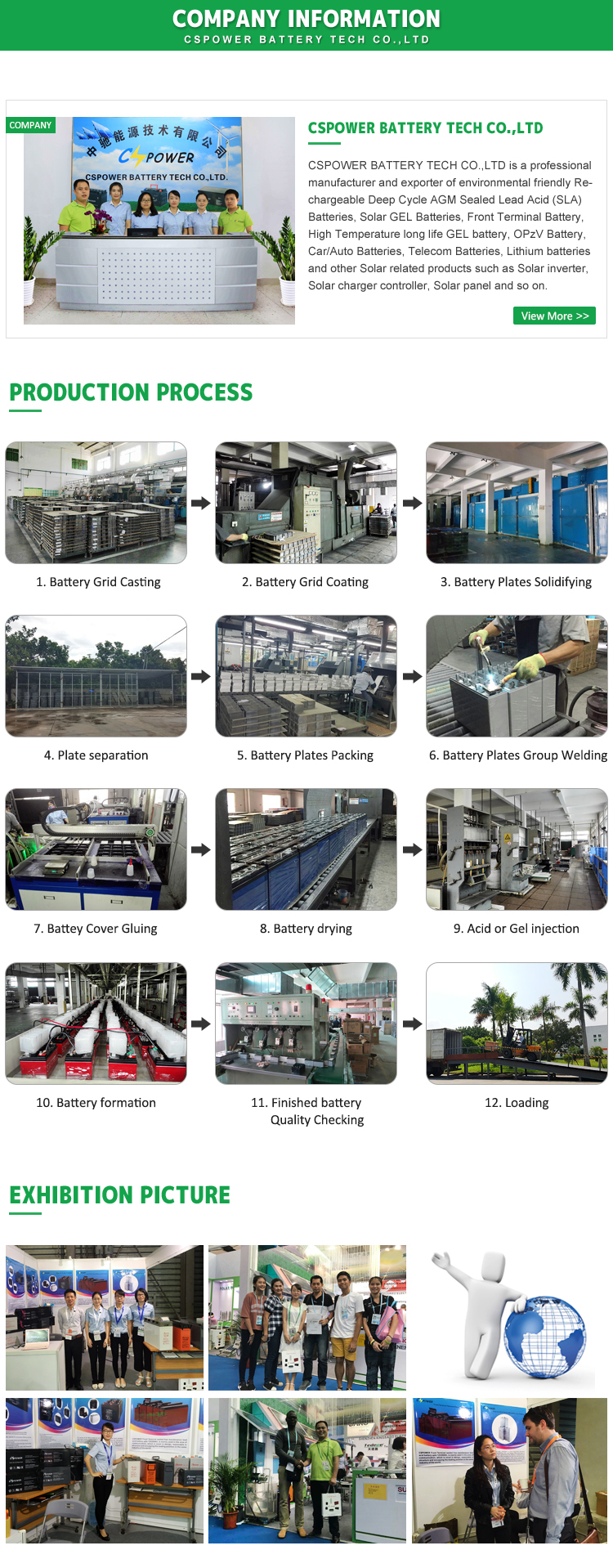

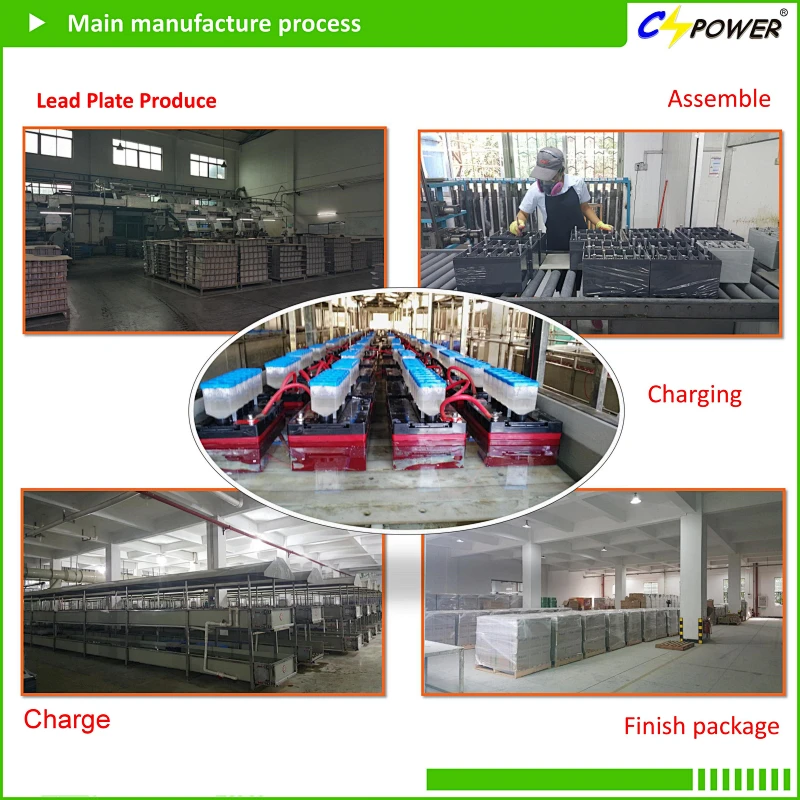

A: 1) Nearly 13 years leading manufacturer,all production lines in our factory are automatic and imported from Germany.
2) 20000KWH production capacity to guarantee the best deliver time
3) The good construction warranty - 1-5 years free replacement no need return.
4) Comprehensive certificates approval: CE / ISO / IEC
5) The reasonable and most competitive price without sacrifice of quality.
6) A professional experienced team to provide you high-quality service before and after sale.
