- Place of Origin:CN;GUA
- Weight:25 kg
- Size:331 * 174 * 214* 219 (MM)
- Voltage:12v
- Model Number: CS12-90
- Brand Name:CSPOWER/OEM Brand
- Maintenance Type:Free
- Nominal Capacity:90Ah
- Sealed Type:Sealed
- Usage:UPS systems, Inverter;Solar&Wind; Emergency Power Systems;Telecom

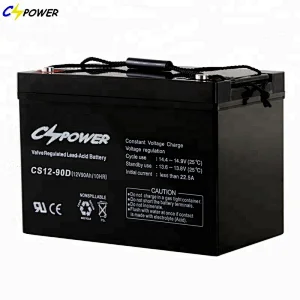

12V 90ah Lead Acid VRLA Deep Cycle Battery 48V Price
|  |
CS12-90 | |||
Nominal Voltage | 12V (6 cells per unit) | ||
Design Floating Life @ 25℃ | 10 Years | ||
Nominal Capacity @ 25℃ | 10 hour rate @ 9.0A,10.8V | 90Ah | |
Capacity @ 25℃ | 20 hour rate (5.0A, 10.8V) | 100Ah | |
5 hour rate (16.4A, 10.5V) | 82Ah | ||
1 hour rate (59.9A,9.6V) | 59.9Ah | ||
Internal Resistance | Full Charged Battery @ 25℃ | ≤5.5mΩ | |
Ambient Temperature | Discharge | -15℃~45℃ | |
Charge | -15℃~45℃ | ||
Storage | -15℃~45℃ | ||
Max.Discharge Current | @ 25℃ 540A(5s) | ||
Capacity affected by Temperature (10 hour ) | 40℃ | 105% | |
25℃ | 100% | ||
0℃ | 85% | ||
-15℃ | 65% | ||
Self-Discharge@25 ℃ per Month | 3% | ||
Charge (Constant Voltage) @ 25℃ | Standby Use | Initial Charging Current Less than 22.5A Voltage 13.6-13.8V | |
Cycle Use | Initial Charging Current Less than 22.5A Voltage 14.4-14.9V | ||
Dimension (mm*mm*mm) | Length 331±1 * Width 174±1 * Height 214±1 (Total Height 219±1) | ||
Weight (kg) | 25±3% | ||
Q: Can you print my logo on the battery cover?
A:Yes, OEM is available,we can print your logo on the battery case freely. Welcome to send us your logo design and discuss with us about the details.
Q:How long is your delivery time?
A:Usually it takes about 10-20 days for production varies with products. Urgent delivery it in 5days.
Q: What is your warranty policy?
A: We provide 1 ~ 5 years different warranty.
Q:Why Choose CSPOWER?
A: 1) Nearly 13 years leading manufacturer,all production lines in our factory are automatic and imported from Germany.
2) 20000KWH production capacity to guarantee the best deliver time
3) The good construction warranty - 1-5 years free replacement no need return.
4) Comprehensive certificates approval: CE / ISO / IEC
5) The reasonable and most competitive price without sacrifice of quality.
6) A professional experienced team to provide you high-quality service before and after sale.
