- Place of Origin:CN;GUA
- Type:Li-Ion
- Housing:Metal
- Application:Power Tools
- Application:Electrocar
- Application:Energy storage
- Application:LAPTOP
- Certification:ce
- Anode Material:Lithium iron phosphate
- Brand Name:CSPOWER/OEM
- Model Number:BT-B4875E-6-I
- Discharge Current:10A-50A
- Charge Current:10A-50A
- Weight:45kgs

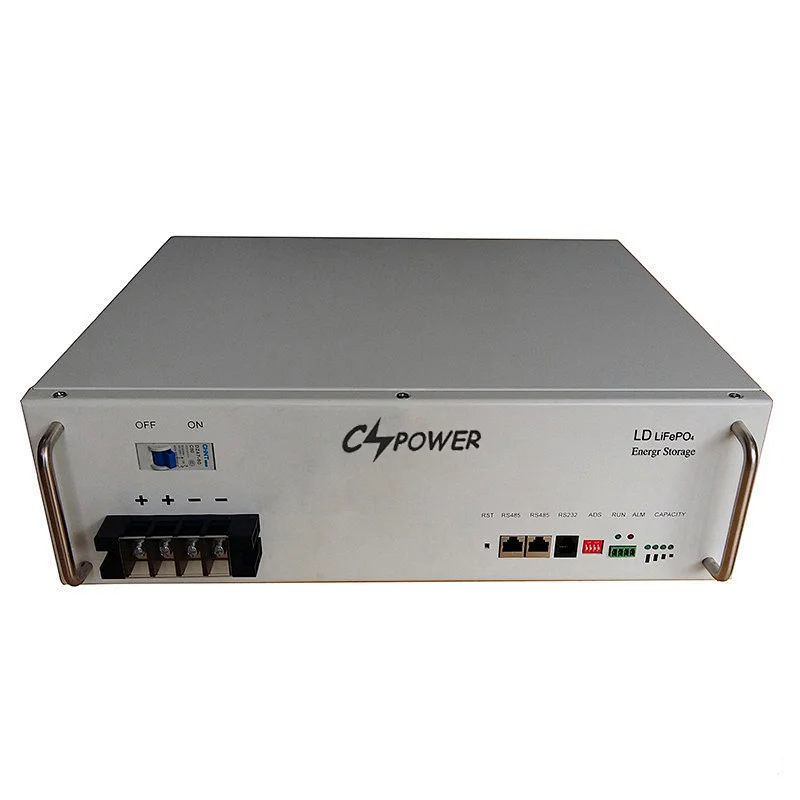

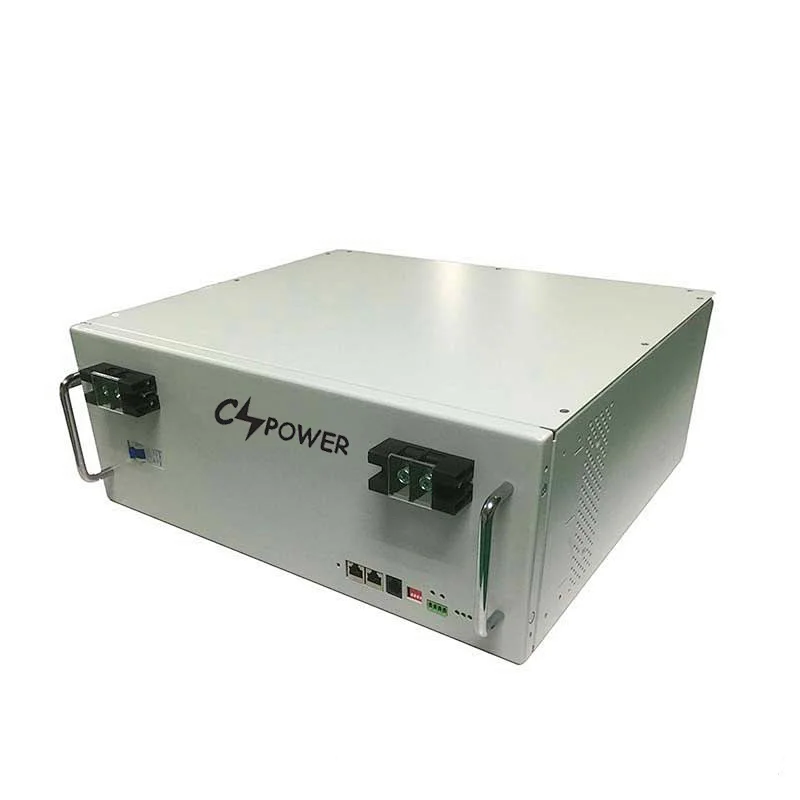

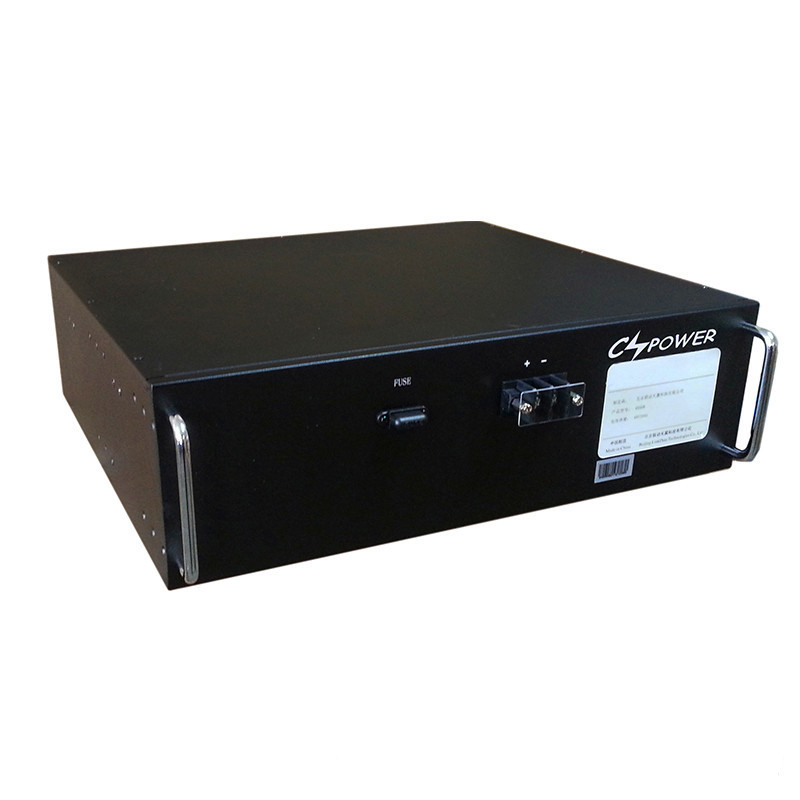

48V75Ah LiFePO4 battery pack rechargeable for solar power 100%DOD use
LiFePO4 battery
Lithium Battery
long life battery
12v200AH Lithium Battery
deep cycle battery
rechargeable battery
free maintenance battery
Lithium Battery pack
LiFePO4 Battery pack
Solar Battery
Characteristics
Lithium Iron Phosphate (LiFePO4)Battery, the longest life among battery field.
Voltage: 12V, 24V, 48V
Capaicty: upto 12V200Ah, 24V100Ah, 48V100Ah.
Designed floating service life: over 20years @25ºC
Cyclic usage: 100%DOD, >2000 cycles
80%DOD, >3000 cycles
48V75Ah LiFePO4 battery pack rechargeable for solar power 100%DOD use
Features for CSPOWER Lithium battery
Due to the demand for energy saving strategies, CSPOWER delivers a full range of battery power systems with multiple nominal voltages (12V/24V/48V/240V/etc.). It is smaller in size and lighter in weight, but it has longer cycle life, temperature durability is stronger, and energy storage is more efficient. With the accurate and reliable battery management system (BMS), our lithium battery power system is a better solution for achieving highest efficiency and reliability. After years of practice, we have the most extensive experience in backup power supply in the industry, and we will continue to provide the best battery products.
48V75Ah LiFePO4 battery pack rechargeable for solar power 100%DOD use
Advantages for CSPOWER LiFePO4 Battery
- Energy density is high. The volume and weight of lithium battery is 1/3 to 1/4 of the traditional lead acid battery with the same capacity.
Energy conversion rate is 15% higher than that of a traditional lead acid battery, the advantage of energy saving is obvious. Self-discharge rate < 2% per month. - Broad temperature adaptability. Products perform well at a temperature of -20°C to 60°C, without air conditioning system.
- Cycle durability for a single cell is 2000 cycles, which is 3 to 4 times more than the cycle durability of a traditional lead acid battery.
- Higher discharge rate, faster charging and dischargingWhen there is a need for backup power supply for a period of 10 hours or less, we could reduce up to 50% of the capacity configuration, comparing to lead acid battery.
- High security. Our lithium battery is safe, electrochemical materials are stable, no fire or explosion under extreme conditions such as high temperature, short circuit, drop impact, piercing, etc
- Optional LCD digital display. Optional LCD digital display can install in the front panel of battery and show battery voltage, capacity, current information, etc.
48V75Ah LiFePO4 battery pack rechargeable for solar power 100%DOD use
BMS of LiFePO4 Battery
Overcharge detection function
Over discharge detection function
Over current detection function
Short detection function
Balance function
Temperature protection
48V75Ah LiFePO4 battery pack rechargeable for solar power 100%DOD use
Sepcificaion of LifePO4 battery (19 inch)
| MODEL | Voltage | Capacity | Dimension (mm) | Weight (kg) | ||
| (V) | (Ah) | Length | Width | Height | (±3%) | |
| BT-B1240F-6-I | 12 | 40 | 442 | 385 | 44 | 10 |
| BT-B1250F-6-I | 12 | 50 | 442 | 385 | 44 | 12 |
| BT-B1280F-6-I | 12 | 80 | 442 | 385 | 88 | 17.5 |
| BT-B12100F-6-I | 12 | 100 | 442 | 385 | 88 | 20 |
| BT-B12200F-6-I | 12 | 200 | 442 | 385 | 132 | 38 |
| BT-P1260F-6-I | 12 | 60 | 442 | 250 | 88 | 12 |
| BT-P12100F-6-I | 12 | 100 | 442 | 385 | 88 | 19 |
| BT-P12200F-6-I | 12 | 200 | 442 | 385 | 132 | 38 |
| BT-B2410E-6-I | 24 | 10 | 442 | 310 | 44 | 8 |
| BT-B2420E-6-I | 24 | 20 | 442 | 310 | 44 | 13 |
| BT-B2460E-6-I | 24 | 60 | 442 | 385 | 88 | 22 |
| BT-B24100E-6-I | 24 | 100 | 442 | 385 | 132 | 38 |
| BT-P2420E-6-I | 24 | 20 | 442 | 310 | 88 | 13 |
| BT-P2460E-6-I | 24 | 60 | 442 | 385 | 88 | 22 |
| BT-P24100E-6-I | 24 | 100 | 442 | 385 | 132 | 38 |
| BT-B4810X-6-I | 48 | 10 | 442 | 385 | 44 | 8 |
| BT-B4820X-6-I | 48 | 20 | 442 | 385 | 44 | 12 |
| BT-B4830X-6-I | 48 | 30 | 442 | 385 | 88 | 18 |
| BT-B4840X-6-I | 48 | 40 | 442 | 385 | 88 | 25 |
| BT-B4850X-6-I | 48 | 50 | 442 | 385 | 132 | 35 |
| BT-B48100X-6-I | 48 | 100 | 442 | 400 | 222 | 63 |
| BT-P4810X-6-I | 48 | 10 | 442 | 385 | 44 | 9 |
| BT-P4820X-6-I | 48 | 20 | 442 | 385 | 44 | 14 |
| BT-P4830X-6-I | 48 | 30 | 442 | 385 | 88 | 20 |
| BT-P4840X-6-I | 48 | 40 | 442 | 385 | 88 | 28 |
| BT-P4850X-6-I | 48 | 50 | 442 | 385 | 132 | 35 |
| BT-P4875X-6-I | 48 | 75 | 442 | 385 | 176 | 45 |
| BT-P48100X-6-I | 48 | 100 | 442 | 400 | 222 | 63 |
Remarks: BT-P series Lithium -Ion battery with communication interface
48V75Ah LiFePO4 battery pack rechargeable for solar power 100%DOD use Application
Electric Vehicles,electric mobility
Solar/wind energy storage system
UPS, backup power
Telecommunication
Medical equipment
Lighting and so on

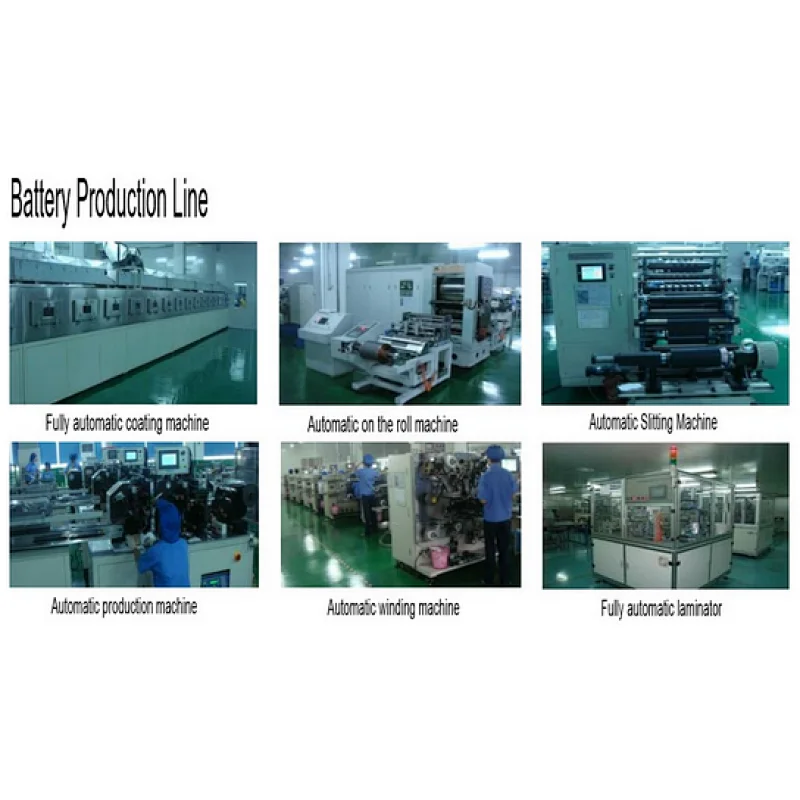

48V75Ah LiFePO4 battery pack rechargeable for solar power 100%DOD use Factory pictures

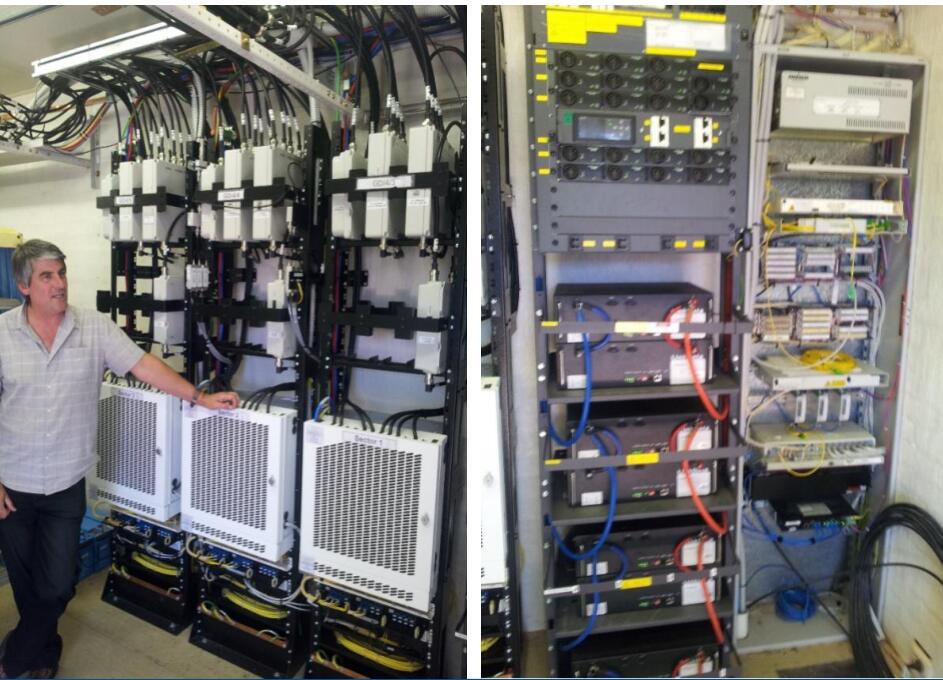

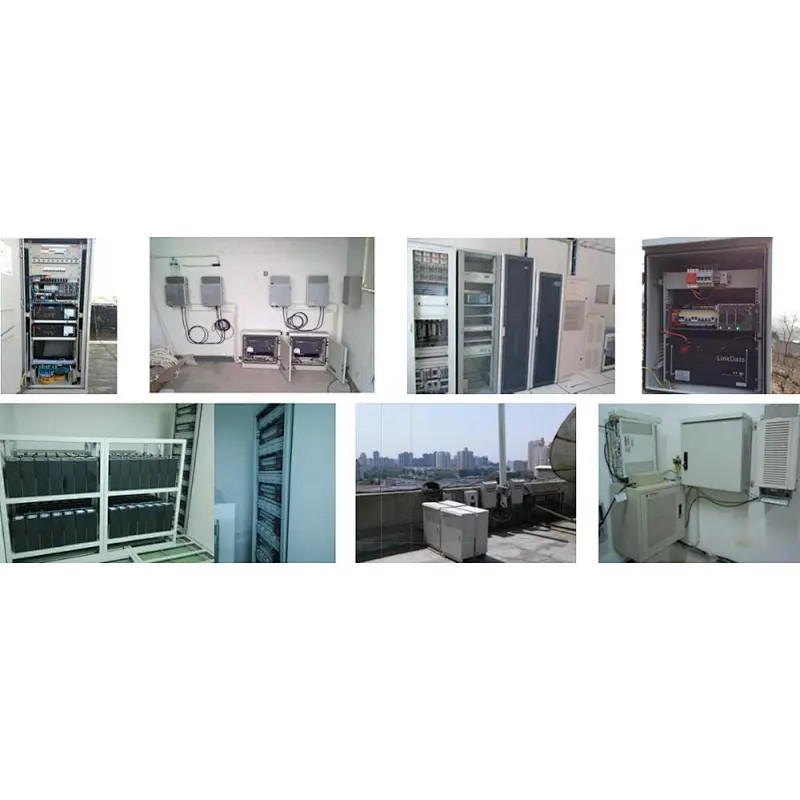

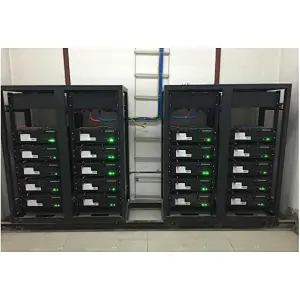

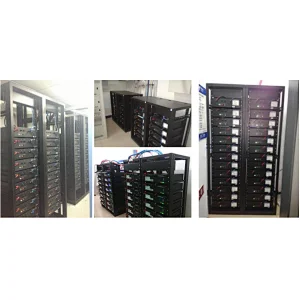

Application showing
48V75Ah LiFePO4 battery pack rechargeable for solar power 100%DOD use
