- Place of Origin:CN;GUA
- Usage:UPS
- Sealed Type:Sealed
- Maintenance Type:Free
- Brand Name:CSPOWER / OEM brand
- Model Number:CH12-170W(12V 42AH)
- Weight:13.8 kg

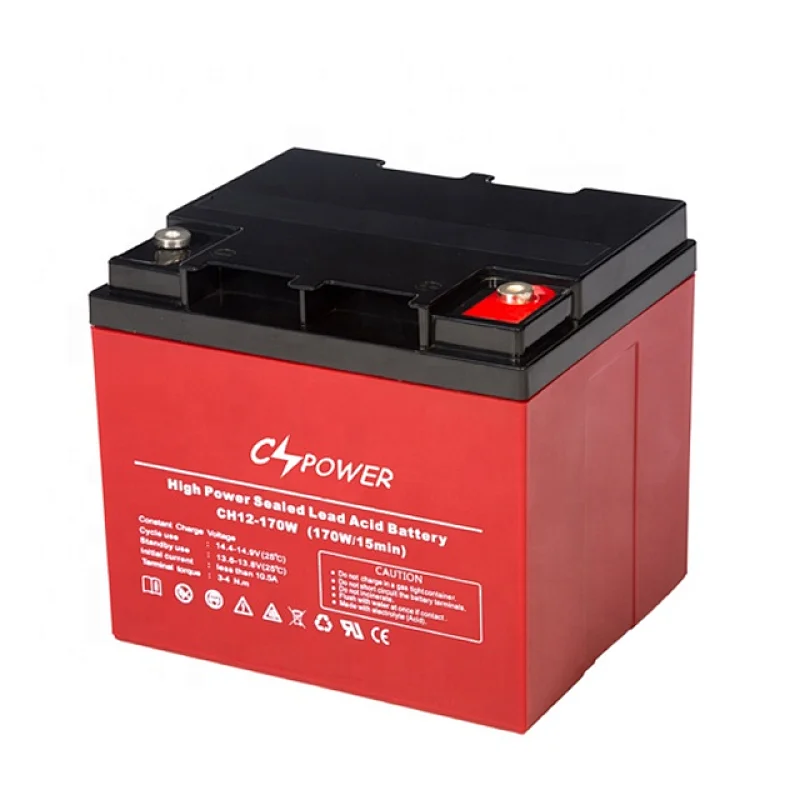

CH12-170W 12V 170W/15min High rate sealed lead acid battery for UPS
CSPOWER High discharge rate AGM battery: it is kind of special sealed free maintenance lead acid battery, also called high rate discharge battery, it is ideal for space limited applications which require more power than what can be delivered by a standard lead acid battery.
>Characteristics
CH SERIES HIGH DISCHARGE AGM BATTERY
Voltage: 12V
Capacity: 12V35W~12V900W
CSPOWER MODEL | Voltage | CAPACITY | Capacity | Dimension (mm) | Weight (kg) | Terminal | Bolt | |||
| (V) | (W/CELL) | (Ah) | Length | Width | Height | Total Height | (±3%) | |||
| CH12-35W | 12 | 35/15min | 8/10HR | 151 | 65 | 94 | 100 | 2.55 | F2 | / |
| CH12-55W | 12 | 55/15min | 12/10HR | 152 | 99 | 96 | 102 | 3.8 | F2 | / |
| CH12-85W | 12 | 85/15min | 20/10HR | 181 | 77 | 167 | 167 | 6.5 | T1 | M5×16 |
| CH12-115W | 12 | 115/15min | 28/10HR | 165 | 126 | 174 | 174 | 8.7 | T2 | M6×16 |
| CH12-145W | 12 | 145/15min | 34/10HR | 196 | 130 | 155 | 167 | 11 | T3 | M6×16 |
| CH12-170W | 12 | 170/15min | 42/10HR | 197 | 166 | 174 | 174 | 13.8 | T3 | M6×16 |
| CH12-300W | 12 | 300/15min | 80/10HR | 260 | 169 | 211 | 215 | 25 | T3 | M6×16 |
| CH12-370W | 12 | 370/15min | 95/10HR | 307 | 169 | 211 | 215 | 31 | T3 | M6×16 |
| CH12-420W | 12 | 420/15min | 110/10HR | 331 | 174 | 214 | 219 | 33.2 | T4 | M8×16 |
| CH12-470W | 12 | 470/15min | 135/10HR | 407 | 174 | 210 | 233 | 39 | T5 | M8×16 |
| CH12-520W | 12 | 520/15min | 150/10HR | 484 | 171 | 241 | 241 | 47 | T4 | M8×16 |
| CH12-680W | 12 | 680/15min | 170/10HR | 532 | 206 | 216 | 222 | 58.5 | T5 | M8×16 |
| CH12-770W | 12 | 770/15min | 220/10HR | 522 | 240 | 219 | 224 | 68 | T6 | M8×16 |
| CH12-800W | 12 | 800/15min | 230/10HR | 520 | 269 | 204 | 209 | 70 | T6 | M8×16 |
| CH12-900W | 12 | 900/15min | 255/10HR | 520 | 268 | 220 | 225 | 79 | T6 | M8×16 |
| CH6-720W | 6 | 720/15min | 180/10HR | 260 | 180 | 247 | 251 | 30.8 | T5 | M8×16 |
> Features for High discharge rate AGM battery
1. Due to special and unique design, this electric power storage comes with high rate discharge performance, high specific power, and over 20% higher energy output than an ordinary battery.
2. The industry battery employs unique corrosion resistant grid alloy and special electrolyte solution, thus keeping excellent low temperature performance and long service life.
3. It is completely made from high purity materials, our AGM lead acid battery has nearly no self discharge. thus can put in stock long time.
4. The CSPOWER high rate battery adopts gas recombination technology, this power supply equipment boasts super high seal reaction efficiency and thereby generates no acid mist. Thus, it is environmently friendly.
5. The improve structure design and advance sealing technology ensures reliable seal, and so bringing clients high safety.
>Application
CSPOWER high rate discharge AGM batteries are the best choice for the applications requiring small capacity but large discharge current such as high effect UPS system, starter, electric power tools, etc.
1. Telecommunication systems including exchange board, microwave station, mobile base station, data center, radio and broadcast station;
2. Suitable power battery for electric tool, toy, portable dust collector and unmanned handling robot;
3. Signal system, emergency lighting system, security and protection system;
4. EPS and UPS system.
All our energy storage batteries meet:
ISO9001, ISO14001, OHSAS18001, IEC61427, CE-EMC; CE-LVD and Solar Product Certification, etc.

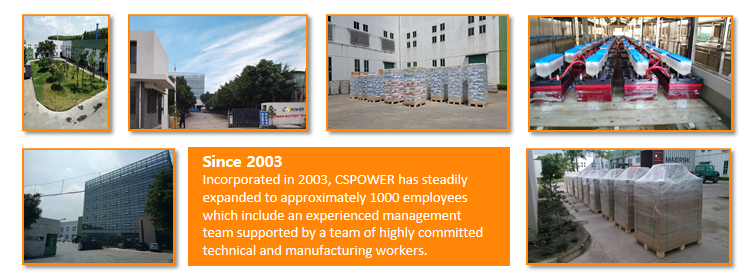

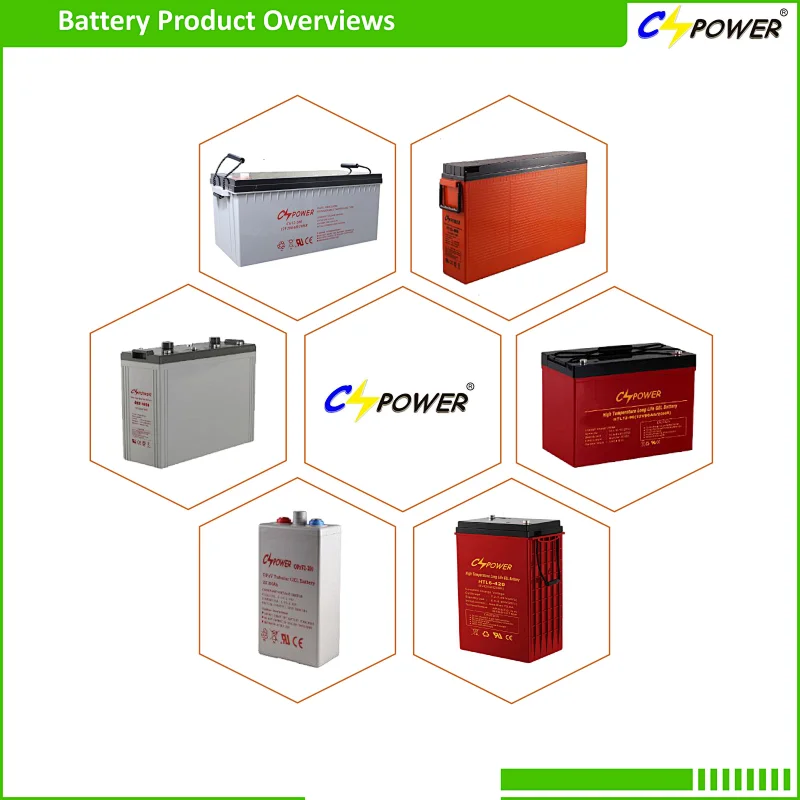

CSPOWER BATTERY TECH CO.,LTD is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
