- Place of Origin:CN;GUA
- Sealed Type:Sealed
- Maintenance Type:Free
- Usage:ups, solar, inverter, telecom
- Brand Name:CSPOWER
- Model Number:FT12-105
- Weight:30.5kg
Cspower 12V105ah Front Terminal AGM bateria for Telecom UPS, China ManufacturerCSPOWER 12V105ah Front terminal bateria
HTL12-100 HTL12-150 HTL12-200 OPzV2-1000
1.5 years warranty at 35°C average
2. Able to operate at 60°C
3. Cycle usage: 50% DOD, 800cycles, 30% DOD 1300cycles.
4. Design Floating Life 25°C: 10 years
5. Self-discharge is 2% ~ 3% per month.
FT12-105 | |||
Nominal Voltage | 12V (6 cells per unit) | ||
Design Floating Life @ 25℃ | 10 Years | ||
Nominal Capacity @ 25℃ | 10 hour rate @10.5A,10.8V | 105Ah | |
Capacity @ 25℃ | 20hour rate (5.57A,10.8V) | 111.4Ah | |
5 hour rate (18.5A,10.5V) | 92.5Ah | ||
1 hour rate (67.0A,9.6V) | 67.0Ah | ||
Internal Resistance | Full Charged Battery @ 25℃ | ≤5.6mΩ | |
Ambient Temperature | Discharge | -15℃~45℃ | |
Charge | -15℃~45℃ | ||
Storage | -15℃~45℃ | ||
Max.Discharge Current | @ 25℃ 630A(5s) | ||
Capacity affected by Temperature (10 hour ) | 40℃ | 105% | |
25℃ | 100% | ||
0℃ | 85% | ||
-15℃ | 65% | ||
Self-Discharge @25℃per Month | 3% | ||
Charge (Constant Voltage) @ 25℃ | Standby Use | Initial Charging Current Less than 26.250A Voltage 13.6-13.8V | |
Cycle Use | Initial Charging Current Less than26.250A Voltage 14.4-14.9V | ||
Dimension (mm*mm*mm) | Length(mm) 552±1 Width(mm) 110±1 Height(mm) 239±1 Total Height(mm) 239±1 | ||
Weight (kg) | Weight(kg) 30.5±3% | ||

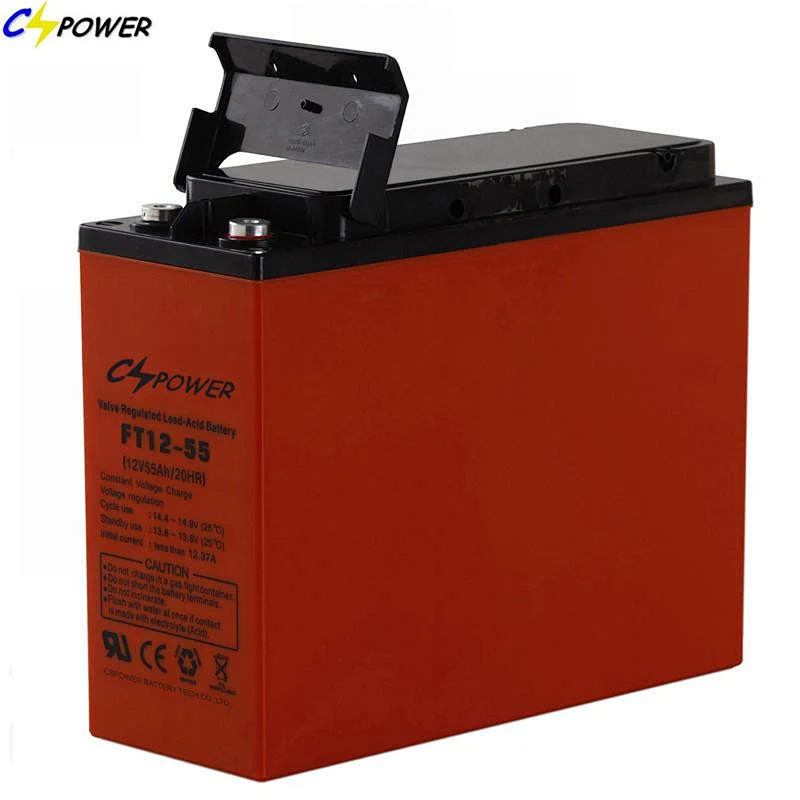

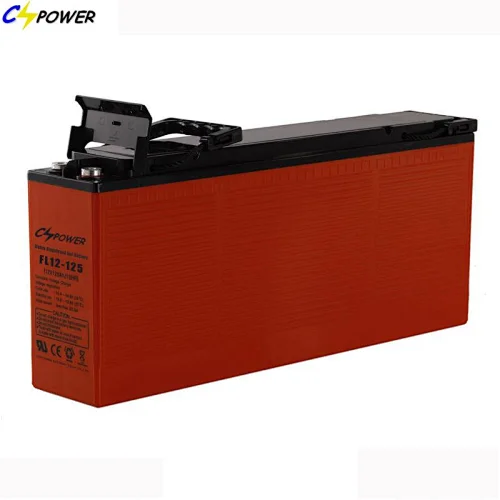

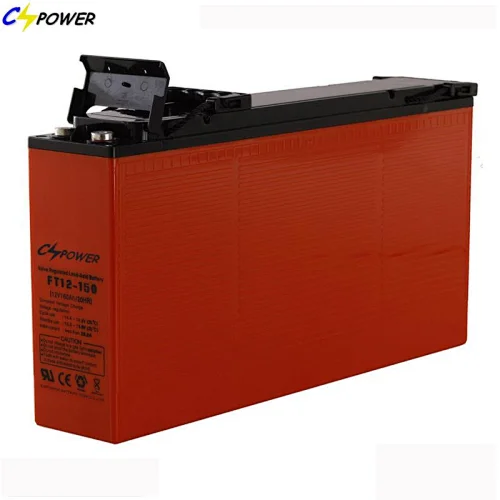

CSPOWER Front Terminal lead acid battery is mainly used in the area of
communication, which is novel in design, reasonable in structure and occupying the
leading position in the same industry of the world. This AGM battery for telecom
industry comes with slim shape design and front terminal connection. Thus, easy
installation and maintenance can be ensured and space can be saved. Radial grid design
plus tight assembly technology assures this rechargeable battery prominent high rate
discharge performance.
Our front access battery features unique design which makes it sure that the electrolyte
volume can be hardly reduced during use and addition of water is not necessary in its
service life. Due to unique corrosion resistant grid alloy, the power storage cell can
serve for more than 8-10years in standby current at a temperature of 25 degree.

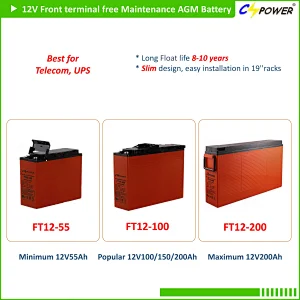

Features and Advantages of Front terminal Battery
* Advanced AGM technology, and Maintenance-free operation;
* Front access terminal with standard width for 19” and 23” ETSI racks;
* Fire resistance ABS container;
* Long float service life 10years;
* Low self discharge <3%.
CSPOWER BATTERY TECH CO.,LTD is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Q: Can you print my logo on the battery cover?
A: Yes, OEM is available,we can print your logo on the battery case freely.Welcome to send us your logo design and dicuss with us about the details.
Q: How long is your delivery time?
A: Usually it takes about 10-20 days for production varies with products. Urgent delivery it in 5days
Q:What is your warranty policy?
A: We provide 1 ~ 5 years different warranty.
Q: Why Choose CSPOWER?
A:1) Nearly 13 years leading manufacturer,all production lines in our factory are automatic and imported from Germany.
2) 20000KWH production capacity to guarantee the best deliver time
3) The good construction warranty - 1-5 years free replacement no need return.
4) Comprehensive certificates approval: CE / ISO / IEC
5) The reasonable and most competitive price without sacrifice of quality.
6) A professional experienced team to provide you high-quality service before and after
