- Place of Origin:CN;GUA
- Sealed Type:Sealed
- Maintenance Type:Free
- Usage:opzv battery can be used for ups, solar, inverter, telecom
- Brand Name:CSPOWER/OEM brand
- Model Number:OPzV2-200
- Weight:18kg/PC

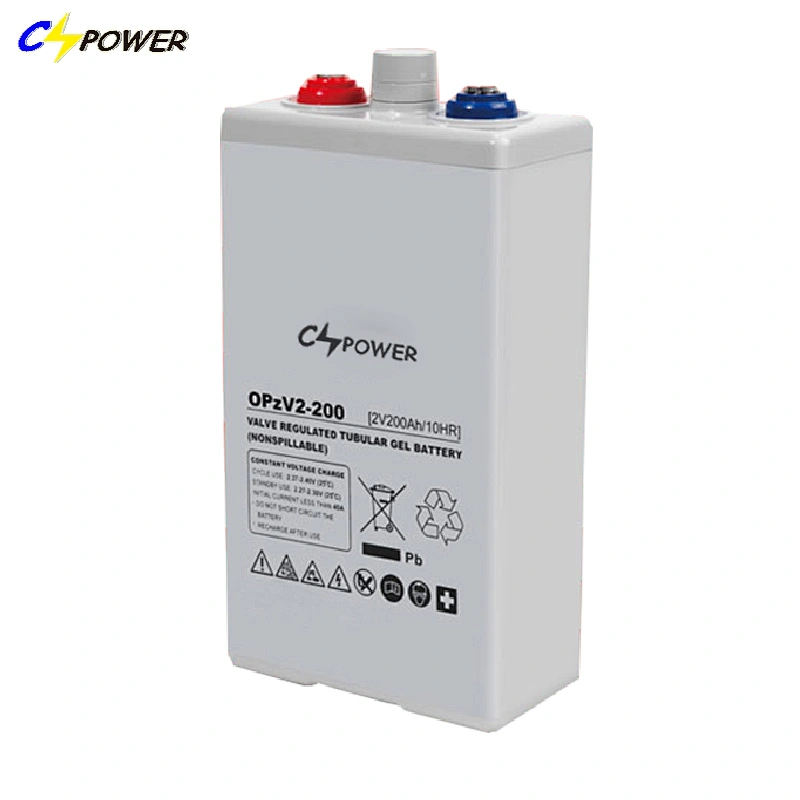

Long life Vrla OPZV solar battery 2V200AH

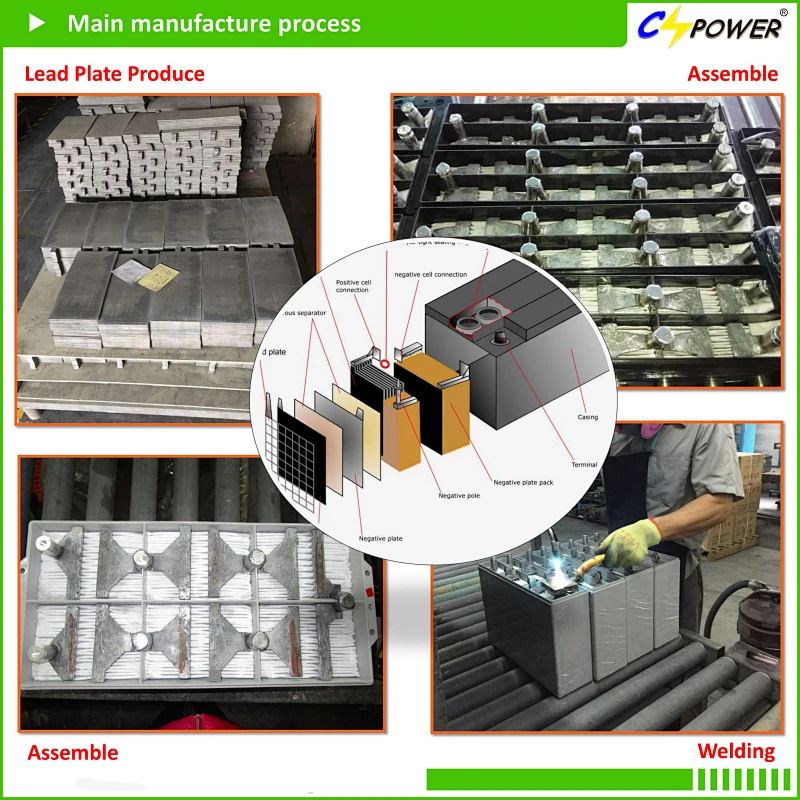

1.CSPOEWR Tubular Plate OPzV Battery Structure
2. High Power Cycles OPzv Tubular Gel Solar Battery 2v 300ah
OPzV2-300 | |||
Nominal Voltage | 2V(Single Cell) | ||
Design Floating Life @ 25℃ | 25 Years | ||
Nominal Capacity @ 25℃ | 10 hour rate@ 100.0A,1.8V | 200Ah | |
Capacity @ 25℃ | 20hour rate (52.5A,1.8V ) | 210Ah | |
5 hour rate (170A,1.75V ) | 170Ah | ||
1 hour rate (632A,1.6V ) | 126.4Ah | ||
Internal Resistance | Full Charged Battery@ 25℃ | ≤0.6mΩ | |
Ambient Temperature | Discharge | -40℃~70℃ | |
Charge | -0℃~50℃ | ||
Storage | -20℃~60℃ | ||
Max.Discharge Current | @ 25℃ 1000A(5s) | ||
Capacity affected by Temperature (10 hour ) | 40℃ | 105% | |
25℃ | 100% | ||
0℃ | 89% | ||
-15℃ | 79% | ||
Self-Discharge@ 25℃per Month | 2% | ||
Charge (Constant Voltage) @ 25℃ | Standby Use | Initial Charging Current Less than 40.0A Voltage 2.25-2.3V | |
Cycle Use | Initial Charging Current Less than 40.0A Voltage 2.37-2.4V | ||
Dimension (mm*mm*mm) | Length 103±1 * Width 206±1 * Height 354±1 (Total Height 380±1) | ||
Weight (kg) | 18±3% | ||
More capacity details for OpzV 2v series, please kindly Clickhere
By combining the newly developed tubular positive plates with fumed gelled electrolyte, CSPOWER created the innovative OPzV range of batteries. The range offers 20 years design life and super high deep cycling capabilities. This range is recommended for telecom outdoor applications, renewable energy systems and other harsh environment applications.
Features and Advantages for OPzV Battery
1. Over 20 years design life at floating condition @ 25°C
2. Wide operating temperature range from -40°C to 60°C
3. Tubular positive plate with prolonged cycle life
4. Fumed Silica gel electrolyte
5. Lead Calcium die cast grid with improved corrosion resistance capability
6. Low self-discharge rate and long shelf life
7. Excellent deep discharge recovery capability
Applications for Tubular Plate Deep Cycle Gel battery 2V OPzV battery

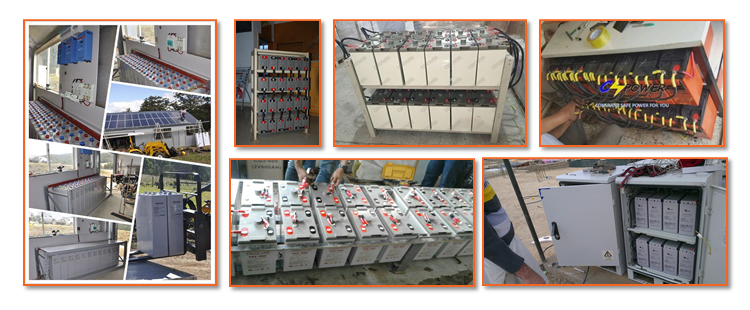

Telecom, Electric Utilities, Control Equipments, Security Systems, Medical Equipments, UPS systems, Railroad Utilities, Photovoltaic Systems, Renewable Energy System and so on.
All our energy storage batteries meet:
ISO9001, ISO14001, OHSAS18001, IEC61427, CE-EMC; CE-LVD and Solar Product Certification, etc.
CSPOWER BATTERY TECH CO.,LTD is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Q: Can you print my logo on the battery cover?
A: Yes, OEM is available,we can print your logo on the battery case freely.
Q: Can I order the batteries with other colors that I want ?
A: Yes. Any special color that you would prefer to, welcome to discuss with us.
Q: How long is your delivery time?
A: Usually it takes about 10-20 days for production varies with products. Urgent delivery it in 5days
Q: What is your warranty policy?
A: We provide 1 ~ 5 years different free replacement warranty according to different battery series.
Q: Can we visit your factory ?
A: Welcome to visit our factroy any time when you're free.
