- Place of Origin:CN;GUA
- Voltage:12v
- Sealed Type:Sealed
- Maintenance Type:Free
- Usage:UPS system, solar system, Telecom system
- Brand Name:CSpower
- Model Number:CG12-45 gel battery
- Size:198*166*174mm
- Weight:13.5kg gel battery
- Nominal Capacity:45ah

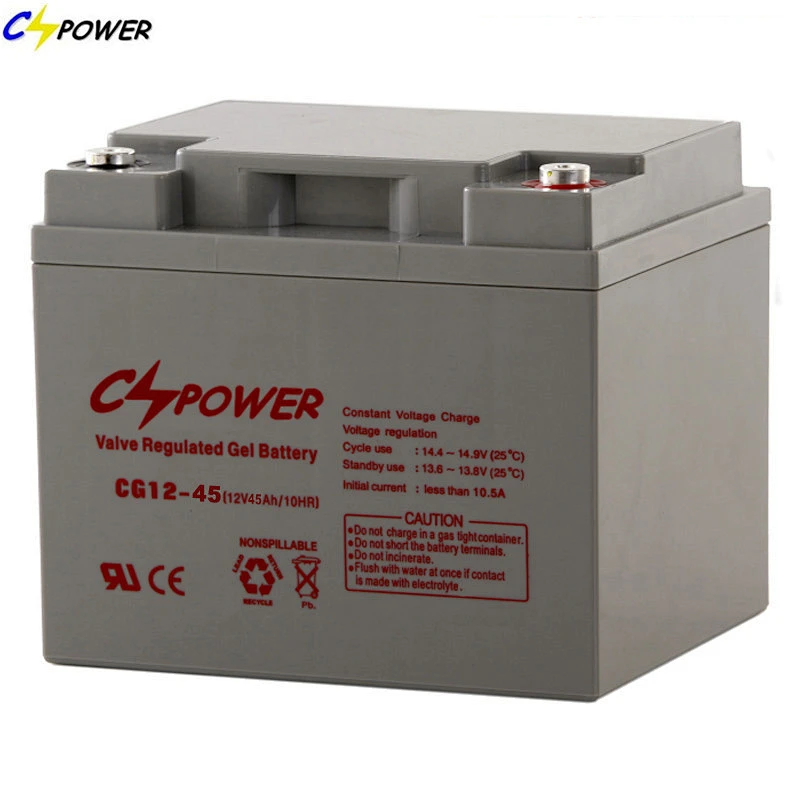

CSPOWER Maintenance Free Bateria 12V 45AH Solar Gel Battery for Solar UPS

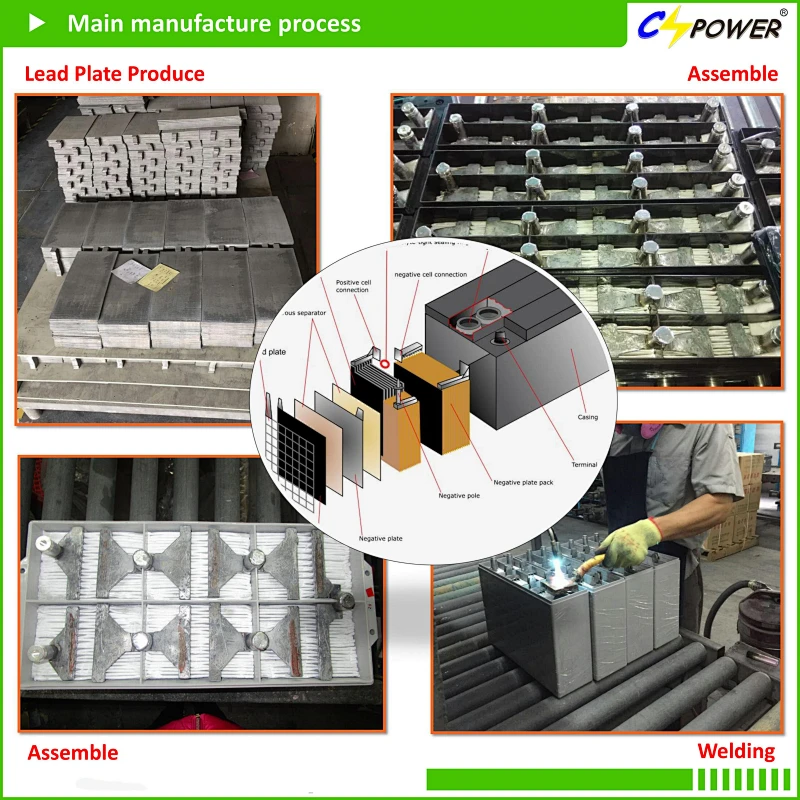

Construction for VRLA GEL battery
1) Container/Cover: Made of UL94HB and UL 94-0ABS Plastic, fire resistance and water proof.
2) 99.997% pure new lead NEVER use recycle lead.
3) Negative Plates: Use the special PbCa alloy grids, optimize the recombination efficiency and less gassing.
4) High quality AGM separator: Absord acid electrolyte, the best retainer mat for VRLA batteries.
5) Positive plates: PbCa grids minimize corrosion and prolong life.
6) Terminal post: Copper or lead material with maximum conductivity, enhance the high current rapidly.
7) Vent Valve: Allows the release of the excess gas automatically for safety.
8) Three steps of Seal procedures: Ensure battery completely sealed with safety, never leakage and volatile acid, longer life.
9) Silicone Nano GEL electrolyte: Import from Germany Evonik famous brand silicone.
Cheap VRLA GEL Solar Powerwall
Charging voltage and settings
l Constant voltage charging is recommended
l Recommended float charge voltage: 2.27V/cell @20~25°C
l Float voltage temperature compensation: -3mV/°C/cel l
l Float voltage range: 2.27 to 2.30 V/cell @ 20~25°C
l Cyclic application charge voltage : 2.40 to 2.47 V/cell @ 20~25°C
l Max. charge current allowable : 0.25C
Cheap VRLA GEL Solar Powerwall
| CG12-45 | |||
| Nominal Voltage | 12V (6 cells per unit) | ||
| Design Floating Life @ 25℃ | 12 Years | ||
| Nominal Capacity @ 25℃ | 10 hour rate @ 4.5A,10.8V | 45Ah | |
| Capacity @ 25℃ | 20 hour rate (2.50A, 10.8V) | 50Ah | |
| 5 hour rate (8.3A, 10.5V) | 41.5Ah | ||
| 1 hour rate (29.9A,9.6V) | 29.9Ah | ||
| Internal Resistance | Full Charged Battery @ 25℃ | ≤9.0mΩ | |
| Ambient Temperature | Discharge | -20℃~60℃ | |
| Charge | -10℃~60℃ | ||
| Storage | -20℃~60℃ | ||
| Max.Discharge Current | @ 25℃ 270A(5s) | ||
| Capacity affected by Temperature (10 hour ) | 40℃ | 105% | |
| 25℃ | 100% | ||
| 0℃ | 85% | ||
| -15℃ | 65% | ||
| Self-Discharge @ 25℃per Month | 3% | ||
| Charge (Constant Voltage) @ 25℃ | Standby Use | Initial Charging Current Less than 11.25A Voltage 13.6-13.8V | |
| Cycle Use | Initial Charging Current Less than 11.25A Voltage 14.4-14.9V | ||
| Dimension (mm*mm*mm) | Length 198±1 * Width 166±1 * Height 174±1 (Total Height 174±1) | ||
| Weight (kg) | 13.5±3% | ||
Solar Storage Gel battery Application
Telecom, Electric Utilities, Control Equipments, Security Systems, Medical Equipments, UPS systems, Railroad Utilities, Photovoltaic Systems, Renewable Energy System and so on.
All our energy storage batteries meet:
ISO9001, ISO14001, OHSAS18001, IEC61427, CE-EMC; CE-LVD and Solar Product Certification, etc.
CSPOWER BATTERY TECH CO.,LTD is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Q: Can you print my logo on the battery cover?
A: Yes, OEM is available,we can print your logo on the battery case freely.
Q: Can I order the batteries with other colors that I want ?
A: Yes. Any special color that you would prefer to, welcome to discuss with us.
Q: How long is your delivery time?
A: Usually it takes about 10-20 days for production varies with products. Urgent delivery it in 5days
Q: What is your warranty policy?
A: We provide 1 ~ 5 years different free replacement warranty according to different battery series.
Q: Can we visit your factory ?
A: Welcome to visit our factroy any time when you're free. :)
