- Place of Origin:CN;GUA
- Sealed Type:Sealed
- Maintenance Type:Free
- Certification:UL
- Certification:ce
- Usage:Motorcycle / Scooter, ups,solar, telecome, wind system
- Brand Name:Cspower/OEM
- Model Number:LP-12V200AH LiFePO4 Battery
- Weight:29kgs Lithium Battery

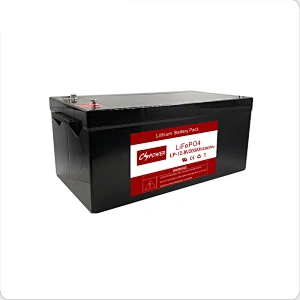

lifepo4 lithium ion battery 12V 200ah Deep Cycle Battery
Lithium Iron Phosphate (LiFePO4)Battery, the longest life among battery field
Voltage: 12V, 24V.
Capaicty: upto 12V150Ah, 24V50Ah
Designed floating service life: over 20years @25ºC
Cyclic usage: 100%DOD, >2000cycles
80%DOD, >3000 cycles
Characteristics of Cspower lithium battery:
1. Safe - Will not explode even in Fire.
2. Long cycle life - 100% DOD cycle Over 2000 times
3. Excellent high temperature performance - can work well under 60 ° C operating environment
4. High energy density - lighter and smaller
5. 10C Magnification Discharge
6. Maintenance-free type.
7. No contamination
| Model | Voltage | Capacity | Dimension (mm) | Weight (kg) | ||
| (V) | (Ah) | Length | Width | Height | (±3%) | |
| LP-12V200AH | 12 | 200 | 520 | 240 | 220 | 29 |
Advantages of CSPOWER Lifepo4 Lithium ion Battery
Energy density is high. The volume and weight of lithium battery is 1/3 to 1/4 of the traditional lead acid battery with the same capacity.
Energy conversion rate is 15% higher than that of a traditional lead acid battery, the advantage of energy saving is obvious. Self-discharge rate < 2% per month.
Broad temperature adaptability. Products perform well at a temperature of -40°C to 60°C, without air conditioning system.
Cycle durability for a single cell is 2000 cycles, which is 3 to 4 times more than the cycle durability of a traditional lead acid battery.
Higher discharge rate, faster charging and dischargingWhen there is a need for backup power supply for a period of 10 hours or less, we could reduce up to 50% of the capacity configuration, comparing to lead acid battery.
Applications of CSPOWER Lithium LiFePO4 Battery
Electric Vehicles,electric mobility
Solar/wind energy storage system
UPS,backup power
Telecommunication
Medical equipment
Lighting and so on
Process Production of CSPOWER LiFePO4 Battery
CSPOWER LiFePO4 battery is the newest lithium iron battery adopts advanced technology, Own Longest Cycle Life: Offers up to 20times longer cycle life and five times longer float /calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.
High security. Our lithium battery is safe, electrochemical materials are stable, no fire or explosion under extreme conditions such as high temperature, short circuit, drop impact, piercing, etc
BMS Specification of CSPOWER Lithium LiFePO4 Battery
Overcharge detection function
Over discharge detection function
Over current detection function
Short detection function
Balance function
Temperature protection
All our energy storage batteries meet:
ISO9001, ISO14001, OHSAS18001, IEC61427, CE-EMC; CE-LVD and Solar Product Certification, etc.
- Packaging Details:
- 12v 200ah Lithium Ion Battery LiFePO4 Battery, maintenance free light box battery
1PCS/Carton;400pcs/Pallet; 5000pcs/20'GP Container
or recording to our clients' demand.
- Delivery Time:
- 15-20 working days after order confirmed
