- Brand Name:CSPOWER
- Usage: Golf cart, Tour bus, Forklift, Sweeper, Floor cleaning machine
- Place of Origin: CN; GUA
- Sealed Type: Sealed
- Certification: UL
- Maintenance Type: Free
- Certification: CE
- Weight:29.5kgs deep cycle battery

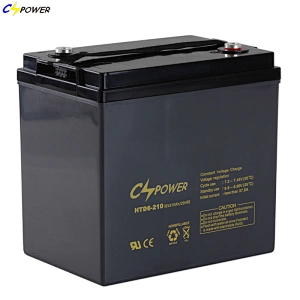

- Model Number:HTD6-210 AGM battery
China manufacturer 6v battery deep cycle vrla AGM lead acid batteries

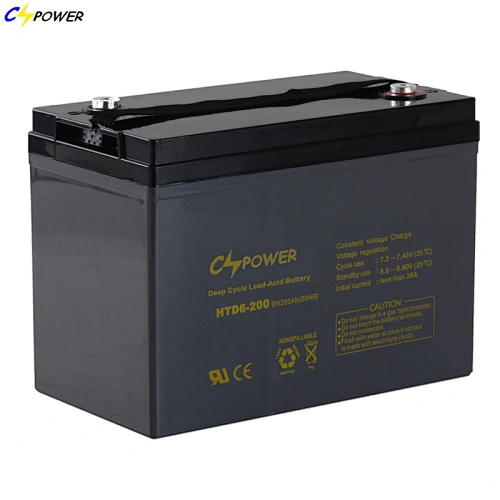

6V 210ah Deep Cycle VRLA AGM Lead Acid Batteries Motive Truck/Inverter Battery
--- For Inverter/Sweeper/Truck
1. 3 years warranty at 25°C average
2. Able to operate at 60°C
3. Cycle usage: 50% DOD, 1500cycles, 30% DOD 2200 cycles.
4. Design Floating Life 25°C: 20 years
5. Self-discharge is 2% ~ 3% per month.
HTL12-100 HTL12-150 HTL12-200 OPzV2-1000
HTD6-210 | |||
Nominal Voltage | 6V (3 cells per unit) | ||
Design Floating Life @ 25℃ | 20 Years | ||
Nominal Capacity @ 25℃ | 20 hour rate @ 21.0A, 5.4V | 210Ah | |
Capacity @ 25℃ | 10 hour rate (37.8A, 5.4V) | 189Ah | |
5 hour rate (66.8A, 5.25V) | 167Ah | ||
1 hour rate (233.3A, 4.8V) | 121.3Ah | ||
Internal Resistance | Full Charged Battery @ 25℃ | ≤2.7mΩ | |
Ambient Temperature | Discharge | -25℃~60℃ | |
Charge | -25℃~60℃ | ||
Storage | -25℃~60℃ | ||
Max.Discharge Current | @ 25℃ 630A(5s) | ||
Capacity affected by Temperature (10 hour ) | 40℃ | 108% | |
25℃ | 100% | ||
0℃ | 90% | ||
-15℃ | 70% | ||
Self-Discharge @ 25℃per Month | 3% | ||
Charge (Constant Voltage) @ 25℃ | Standby Use | Initial Charging Current Less than 42A Voltage 6.8 - 6.9V | |
Cycle Use | Initial Charging Current Less than 42A Voltage 7.2 - 7.45V | ||
Dimension (mm*mm*mm) | Length 260±1 * Width 180±1 * Height 247±1 (Total Height 252±1) | ||
Weight (kg) | 29.6±3% | ||
The rechargeable batteries are lead-lead dioxide systems. The dilute sulfuric acid electrolyte is absorbed by separators and plates and thus immobilized. Should the battery be accidentally overcharged producing hydrogen and oxygen, special one-way valves allow the gases to escape thus avoiding excessive pressure build-up. Otherwise, the battery is completely sealed and is, therefore, maintenance-free, leakproof, and usable in any position.
Features and Advantages of Deep Cycle VRLA AGM Solar battery
Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to
99% and freedom from electrolyte maintenance or water adding.
1. Not restricted for air transport complies with IATA/ICAO Special Provision A67.
2. UL-recognized component.
3. Can be mounted in any orientation.
4. Computer-designed lead, calcium tin alloy grid for high power density.
5. Long service life, float or cyclic applications.
6. Maintenance-free operation.
