- Place of Origin:CN;GUA
- Sealed Type:Sealed
- Maintenance Type:Free
- Usage:UPS systems, Inverter;Solar&Wind; Emergency Power Systems;Telecom
- Brand Name:CSPOWER/ OEM Brand
- Model Number:CS12-250 ( UPS Battery)
- Weight:70kg/PC

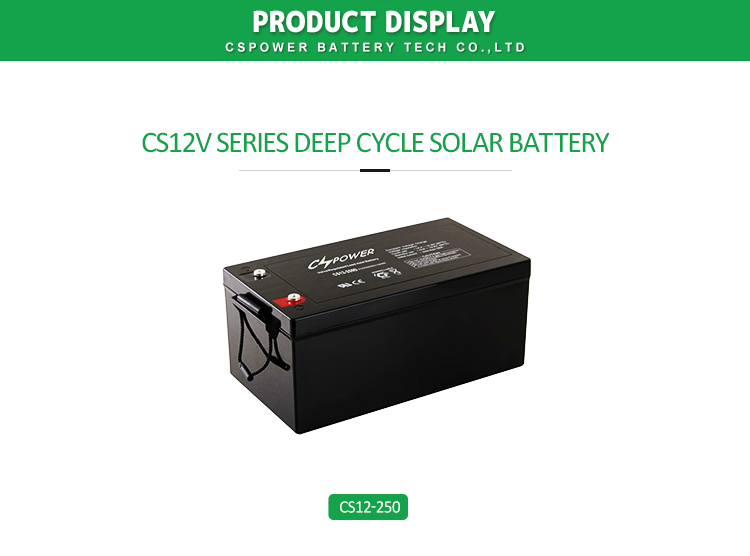

12 Volt Sealed Lead Acid SLA Deep Cycle AGM Battery 12V 250AH
>>>>>>>>>>>>>>>>>>>>>>>>>Contact US
| 1. 30% more cyclic life through innovation at the PAM additives 2. Long life expectancy of 10 years in floating condition 3. Thick flat plate with high Tin low Calcium alloy 4. Wide operating temperature range from -20 °C to 50°C 5. 3% Low self-discharge rate 6. Very good deep cycle performance: up to 700 cycles @50% DOD 7. Excellent deep discharge recovery capability. |  |
CSPOWER CS12-250 VRLA Deep Cycle AGM Battery specificaiton
CS12-250 | |||
Nominal Voltage | 12V (6 cells per unit) | ||
Design Floating Life @ 25℃ | 10 Years | ||
Nominal Capacity @ 25℃ | 10 hour rate @ 25.0A,10.8V | 250Ah | |
Capacity @ 25℃ | 20 hour rate (13.9A, 10.8V) | 278Ah | |
5 hour rate (45.7A, 10.5V) | 228Ah | ||
1 hour rate (184.8A,9.6V) | 184.8Ah | ||
Internal Resistance | Full Charged Battery @ 25℃ | ≤2.0mΩ | |
Ambient Temperature | Discharge | -15℃~45℃ | |
Charge | -15℃~45℃ | ||
Storage | -15℃~45℃ | ||
Max.Discharge Current | @ 25℃ 1500A(5s) | ||
Capacity affected by Temperature (10 hour ) | 40℃ | 105% | |
25℃ | 100% | ||
0℃ | 85% | ||
-15℃ | 65% | ||
Self-Discharge @25℃per Month | 3% | ||
Charge (Constant Voltage) @ 25℃ | Standby Use | Initial Charging Current Less than 62.5A Voltage 13.6-13.8V | |
Cycle Use | Initial Charging Current Less than 62.5A Voltage 14.4-14.9V | ||
Dimension (mm*mm*mm) | Length 522±1 * Width 269±1 * Height 220±1 (Total Height 224±1) | ||
Weight (kg) | 70±3% | ||
More capacity of CS series Vrla agm battery, please kindly Clickhere
CSPOWER Deep cycle series batteries are designed to have a large amount of stored current discharged between charging sessions, with very heavy non-porous battery plates to withstand repeated major discharging and charging cycle (deep cycle). The CSPOWER deep cycle battery uses a different chemistry for the plates active paste material, and a slightly stronger electrolyte than normal battery electrolyte, thus the CS range features 30% higher cyclic life with 10 years of float life when compared to the standard Duration range.
Features and Advantages of VRLA AGM Battery
- 30% more cyclic life through innovation at the PAM additives
- Long life expectancy of 10 years in floating condition
- Thick flat plate with high Tin low Calcium alloy
- Wide operating temperature range from -20 °C to 50°C
- 2%Low self-discharge rate
- Very good deep cycle performance: up to 500 cycles @80% DOD
- Excellent deep discharge recovery capability
Q: Can you print my logo on the battery cover?
A:Yes, OEM is available,we can print your logo on the battery case freely. Welcome to send us your logo design and discuss with us about the details.
Q:How long is your delivery time?
A:Usually it takes about 10-20 days for production varies with products. Urgent delivery it in 5days.
Q: What is your warranty policy?
A: We provide 1 ~ 5 years different warranty.
Q:Why Choose CSPOWER?
A: 1) Nearly 13 years leading manufacturer,all production lines in our factory are automatic and imported from Germany.
2) 20000KWH production capacity to guarantee the best deliver time
3) The good construction warranty - 1-5 years free replacement no need return.
4) Comprehensive certificates approval: CE / ISO / IEC
5) The reasonable and most competitive price without sacrifice of quality.
6) A professional experienced team to provide you high-quality service before and after sale.
