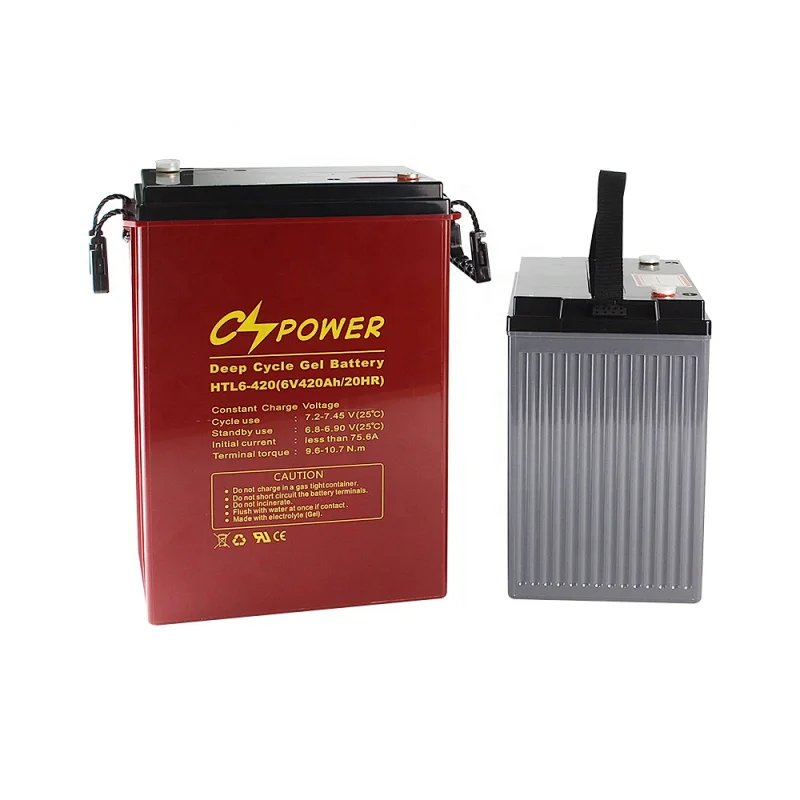

6 volt 330ah 420ah deep cycle Gel batteries for solar inverters system

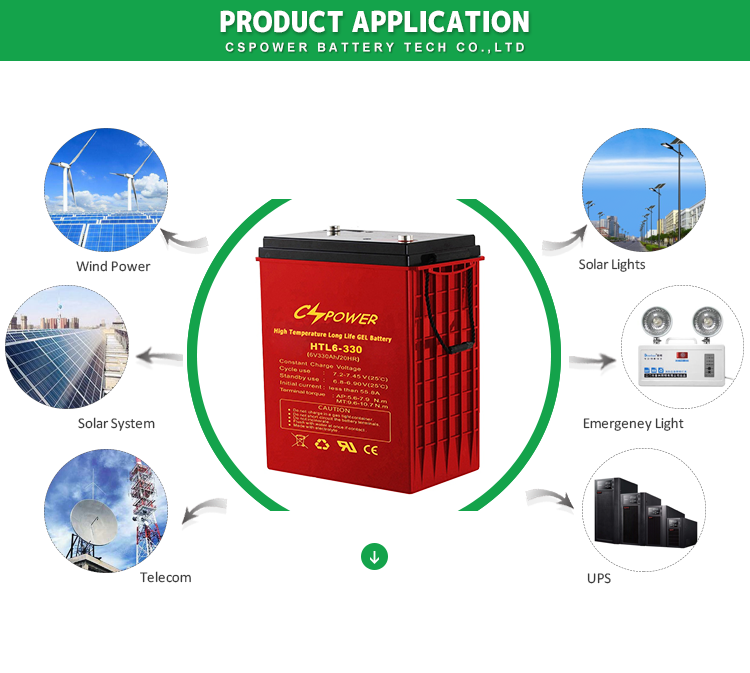

1. Three years warranty at 35°C-40°C average 2. Able to operate at -40°C to 60°C 3. Longer life and higher stability under high temp. environment (Perfect to be applied to renewable energy system or hybrid power system at tough condition.) 4. Adopt Super-C additives lead plates: Deep discharge recovery capability 5. Deep Cycle usage: 50% DOD, 1500-1600 Cycles work in high/cold temp. area.
Product Parameters
CSPOWER HTL6-330 High temperature deep cycle gel battery specificaiton
HTL6-330
Nominal Voltage
6V (3 cells per unit)
Design Floating Life @ 25℃
20 Years
Nominal Capacity @ 25℃
20 hour rate@ 21.0A, 5.4V
330Ah
Capacity @ 25℃
10 hour rate (37.8A, 5.4V)
297Ah
5 hour rate (66.8A, 5.25V)
262.5Ah
1 hour rate (233.3A, 4.8V)
183.3Ah
Internal Resistance
Full Charged Battery@ 25℃
≤1.6mΩ
Ambient Temperature
Discharge
-25℃~60℃
Charge
-25℃~60℃
Storage
-25℃~60℃
Max.Discharge Current
@ 25℃ 1000A(5s)
Capacity affected by Temperature (10 hour )
40℃
108%
25℃
100%
0℃
90%
-15℃
70%
Self-Discharge@25℃per Month
3%
Charge (Constant Voltage) @ 25℃
Standby Use
Initial Charging Current Less than 66A Voltage 6.8 - 6.9V
Cycle Use
Initial Charging Current Less than 66A Voltage 7.2 - 7.45V
