- Place of Origin:CN;GUA
- Voltage:12v
- Sealed Type:Sealed
- Maintenance Type:Free
- Usage:UPS systems, Inverter;Solar&Wind; Emergency Power Systems;Telecom
- Brand Name:CSPOWER/ OEM Brand
- Model Number:CS12-75 ( UPS Battery)
- Size:260 * 169 * 211*215 (mm)
- Weight:22kg/PC
- Nominal Capacity:75Ah

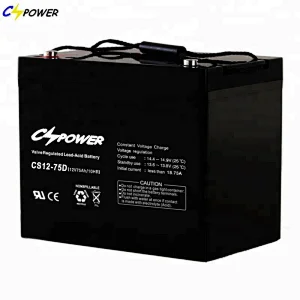

75AH AMP HOUR BATTERY AGM SLA 12 VOLT UPS BATTERY CS12-75
CSPOWER CS12-75 VRLA Deep Cycle AGM Battery specificaiton
CS12-75 | |||
Nominal Voltage | 12V (6 cells per unit) | ||
Design Floating Life @ 25℃ | 10Years | ||
Nominal Capacity @ 25℃ | 10 hour rate @7.5A,10.8V | 75Ah | |
Capacity @ 25℃ | 20 hour rate (3.9A, 10.8V) | 78Ah | |
5 hour rate (13.2A, 10.5V) | 66Ah | ||
1 hour rate (47.9A,9.6V) | 47.9Ah | ||
Internal Resistance | Full Charged Battery@ 25℃ | ≤5.5mΩ | |
Ambient Temperature | Discharge | -15℃~45℃ | |
Charge | -15℃~45℃ | ||
Storage | -15℃~45℃ | ||
Max.Discharge Current | @ 25℃ 450A(5s) | ||
Capacity affected by Temperature (10 hour ) | 40℃ | 105% | |
25℃ | 100% | ||
0℃ | 85% | ||
-15℃ | 65% | ||
Self-Discharge @25℃per Month | 3% | ||
Charge (Constant Voltage) @ 25℃ | Standby Use | Initial Charging Current Less than 19A Voltage 13.6-13.8V | |
Cycle Use | Initial Charging Current Less than 19A Voltage 14.4-14.9V | ||
Dimension (mm*mm*mm) | Length 260±1 * Width 169±1 * Height 211±1 (Total Height 215±1) | ||
Weight (kg) | 22±3% | ||
More capacity of CS series Vrla agm battery, please kindly Clickhere
China rechargeable deep cycle 12v UPS battery 75ah
- 30% more cyclic life through innovation at the PAM additives
- Long life expectancy of 10 years in floating condition
- Thick flat plate with high Tin low Calcium alloy
- Wide operating temperature range from -20 °C to 50°C
- 2%Low self-discharge rate
- Very good deep cycle performance: up to 500 cycles @80% DOD
- Excellent deep discharge recovery capabilityProduct Application
Applications -- 12V VRLA AGM Batteries
UPS systems, Inverter systems, Solar and Wind, Emergency systems, Security systems,Control System, Medical Equipments, Electric Powered Vehicles, Golf Cars and Buggies, Wheel Chairs, Power Tools, Electric Powered Toys, and so on.
All our energy storage batteries meet:
ISO9001, ISO14001, OHSAS18001, IEC61427, CE-EMC; CE-LVD and Solar Product Certification, etc.
CSPOWER BATTERY TECH CO.,LTD is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Q: Can you print my logo on the battery cover?
A: Yes, OEM is available,we can print your logo on the battery case freely.
Q: Can I order the batteries with other colors that I want ?
A: Yes. Any special color that you would prefer to, welcome to discuss with us.
Q: How long is your delivery time?
A: Usually it takes about 10-20 days for production varies with products. Urgent delivery it in 5days
Q: What is your warranty policy?
A: We provide 1 ~ 5 years different free replacement warranty.
Q: Can we visit your factory ?
A: Welcome to visit our factroy any time when you're free.
