- Place of Origin:CN;GUA
- Voltage:2v
- Sealed Type: Sealed
- Maintenance Type: Free
- Usage: UPS, telecom, Solar,Standby
- Brand Name:CSPOWER/OEM Brand
- Model Number: CG2-3000
- Size:712*353*342*365(mm)
- Weight:190.5kg
- Nominal Capacity:3000Ah

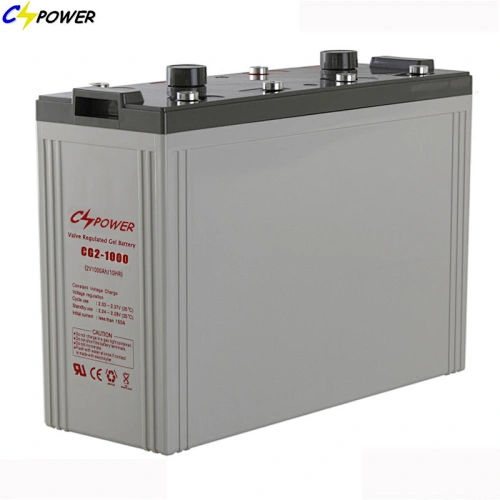

China best maintenance free battery deep cycle GEL battery 2V 3000Ah
CG SERIES LONG LIFE DEEP CYCLE GEL BATTERY
- Voltage: 2V
- Capacity: upto 2V3000Ah
- Designed floating service life: 15~20 years @ 25 °C/77 °F.
- Cycle Life: over 1500 cycles @ 50%DOD
- 2V 3000AH GEL battery Warranty: 36months free replacement warranty
- OEM Brand service freely
China best maintenance free battery deep cycle GEL battery 2V 3000Ah SPECIFICATION
CG2-3000 | |||
Nominal Voltage | 2V(Single Cell) | ||
Design Floating Life @ 25℃ | 20 Years | ||
Nominal Capacity @ 25℃ | 10 hour rate @300.0A,1.8V | 3000Ah | |
Capacity @ 25℃ | 20hour rate (159A,1.8V ) | 3180Ah | |
5 hour rate 530A,1.75V ) | 2650Ah | ||
1 hour rate (1815A,1.6V ) | 1815Ah | ||
Internal Resistance | Full Charged Battery @ 25℃ | ≤0.08mΩ | |
Ambient Temperature | Discharge | -20℃~60℃ | |
Charge | -10℃~60℃ | ||
Storage | -20℃~60℃ | ||
Max.Discharge Current | @ 25℃ 6000A(5s) | ||
Capacity affected by Temperature (10 hour ) | 40℃ | 102% | |
25℃ | 100% | ||
0℃ | 90% | ||
-15℃ | 70% | ||
Self-Discharge@25℃per Month | 3% | ||
Charge (Constant Voltage) @ 25℃ | Standby Use | Initial Charging Current Less than 450A Voltage 2.23-2.27V | |
Cycle Use | Initial Charging Current Less than 450A Voltage 2.33-2.37V | ||
Dimension (mm*mm*mm) | Length 712±1 * Width 353±1 * Height 342±1 (Total Height 365±1) | ||
Weight (kg) | 190.5±3% | ||
Applications for China deep cycle GEL best maintenance free battery 2V 3000Ah
- Solar-powered and wind-powered systems;
- Communication equipment,
- Telecommunication control equipment;
- Emergency lighting systems;
- Electric power systems; Power station; Nuclear power station;
- Load leveling and storage equipment;
- Marine equipment;
- Power generation plants;
- Alarm systems;
- Uninterruptible power supplies and standby power for computers;
- Medical equipment;
- Fire and security systems;
- Control equipment;
- Stand-by electric power
