- Place of Origin:CN;GUA
- Voltage:12v
- Sealed Type:Sealed
- Maintenance Type:Free
- Usage:UPS,Emergency Lighting , Solar systems;Fire & security systems etc.
- Brand Name:CSPOWER/ OEM Brand
- Model Number:CS12-10
- Size:152*99*96*102 (mm)
- Weight:3.15kg
- Nominal Capacity:10Ah

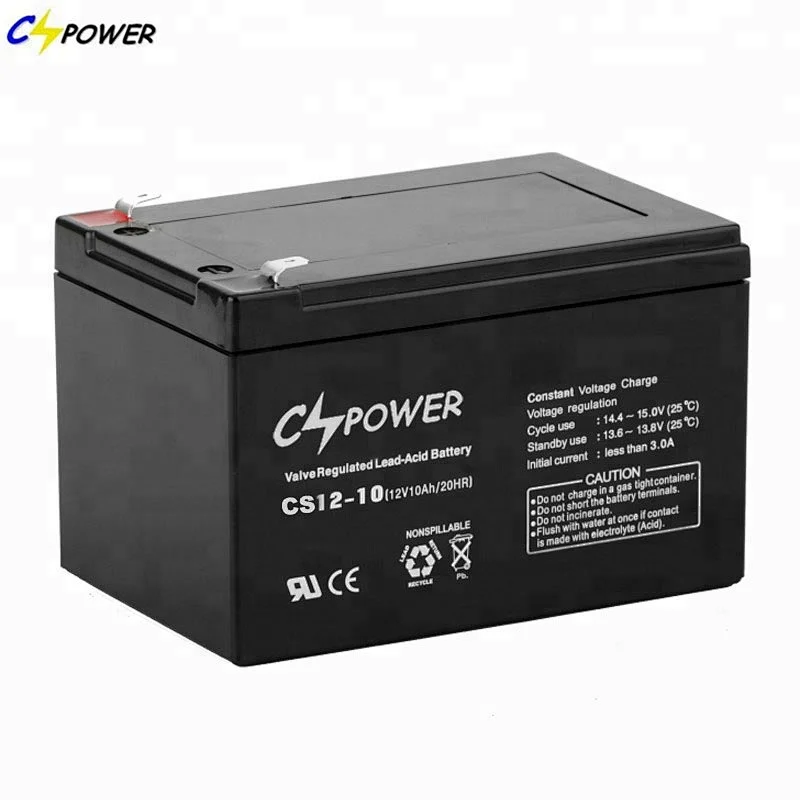

China Electric Bike Battery 12V 10ah SMF Deep Cycle Battery
China Electric Bike Battery 12V 10ah SMF Deep Cycle Battery Specification
CS12-10 | |||
Nominal Voltage | 12V (6 cells per unit) | ||
Design Floating Life @ 25℃ | 5 Years | ||
Nominal Capacity @ 25℃ | 20 hour rate@ 21.0A, 5.4V | 10Ah | |
Capacity @ 25℃ | 10 hour rate (37.8A, 5.4V) | 9.5Ah | |
5 hour rate (66.8A, 5.25V) | 8.9Ah | ||
1 hour rate (233.3A, 4.8V) | 6.6Ah | ||
Internal Resistance | Full Charged Battery@ 25℃ | ≤16.0mΩ | |
Ambient Temperature | Discharge | -15℃~45℃ | |
Charge | -15℃~45℃ | ||
Storage | -15℃~45℃ | ||
Max.Discharge Current | @ 25℃ 60A(5s) | ||
Capacity affected by Temperature (10 hour ) | 40℃ | 105% | |
25℃ | 100% | ||
0℃ | 85% | ||
-15℃ | 65% | ||
Self-Discharge@25℃per Month | 3% | ||
Charge (Constant Voltage) @ 25℃ | Standby Use | Initial Charging Current Less than 3A Voltage 13.6 - 13.8V | |
Cycle Use | Initial Charging Current Less than 3A Voltage 14.4 - 14.9V | ||
Dimension (mm*mm*mm) | Length 152±1 * Width 99±1 * Height 96±1 (Total Height 102±1) | ||
Weight (kg) | 3.2±3% | ||

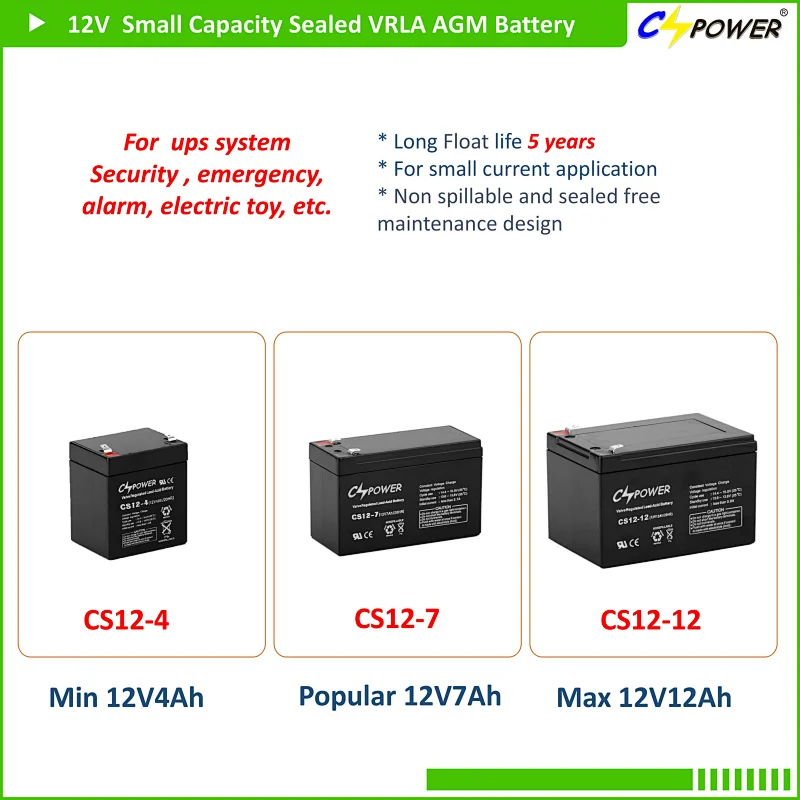

More capacity details for the small capacity range,please kindly Clickhere
CSPOWER CS series Sealed free maintenance lead acid batteries are designed with AGM technology, high performance plates and electrolyte to gain extra power output for common power backup system applications widely used in the fields of UPS, Security and Emergency Lighting System.
They are sealed and free maintenance whole life, valve regulated type standby AGM battery, also named by VRLA battery, SLA battery, and SMF battery.
Applications for SLA battery
Uninterruptible power supplies (UPS); Inverter; Emergency Lighting Systems; Solar powered systems; Communication equipment; Fire & security systems; Telecommunication systems; Electronic cash registers; Electronic test equipment; processor based office machines; Control equipment; Electric powered bicycle and wheelchairs; Geophysical equipment; Marine equipment; Medical equipment; Portable cine & video lights; Television& video recorders; Vending machines; Alarm Systems, Computers; Power Tools; Toys; Geophysical Equipment; Vending Machines ; Other standby or primary power supplier
All our energy storage batteries meet:
ISO9001, ISO14001, OHSAS18001, IEC61427, CE-EMC; CE-LVD and Solar Product Certification, etc.

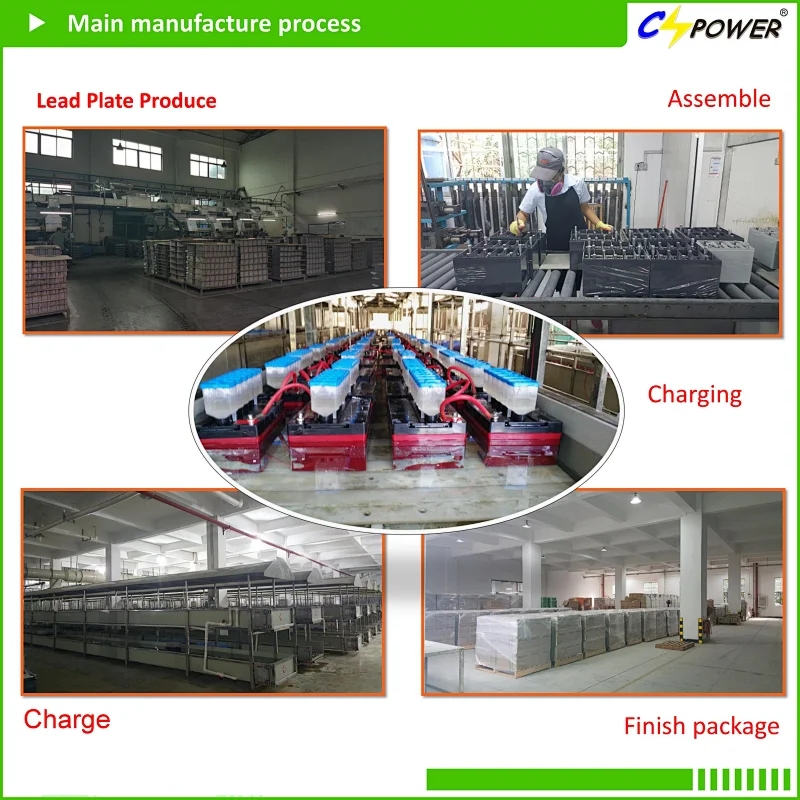

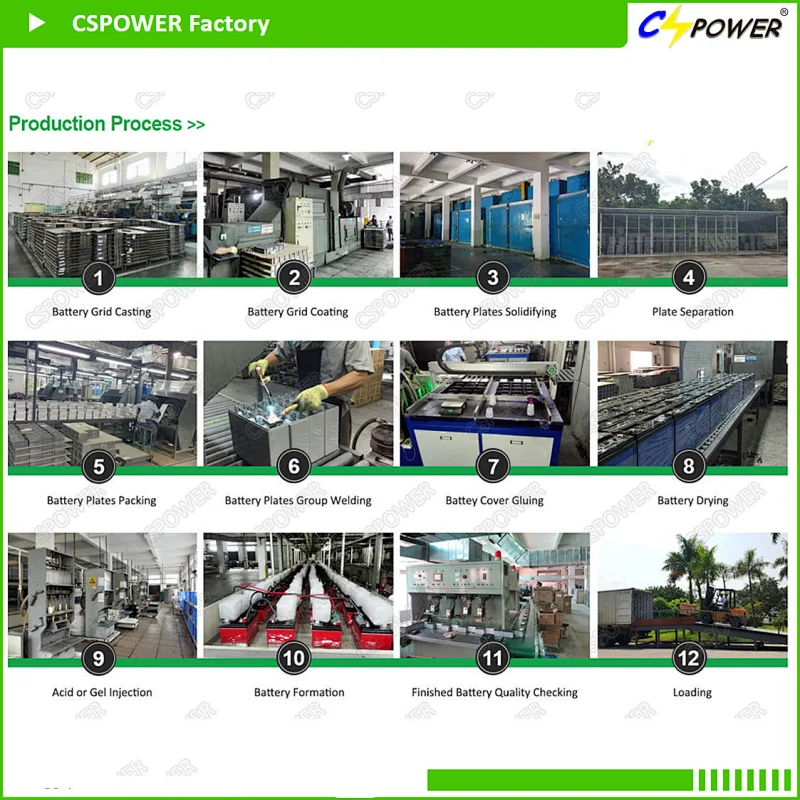

CSPOWER BATTERY TECH CO.,LTD is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.

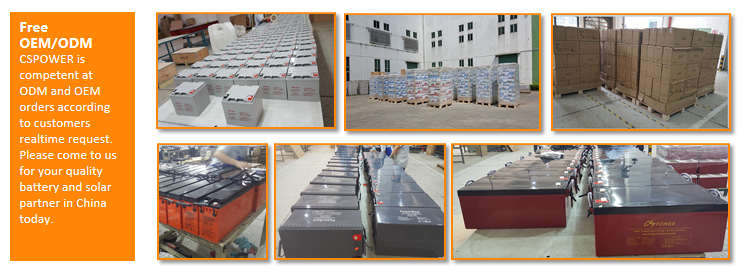

Q: Can you print my logo on the battery cover?
A: Yes, OEM is available,we can print your logo on the battery case freely.
Q: Can I order the batteries with other colors that I want ?
A: Yes. Any special color that you would prefer to, welcome to discuss with us.
Q: How long is your delivery time?
A: Usually it takes about 10-20 days for production varies with products. Urgent delivery it in 5days
Q: What is your warranty policy?
A: We provide 1 ~ 5 years different free replacement warranty according to different battery series.
Q: Can we visit your factory ?
A: Welcome to visit our factroy any time when you're free. :)
