Solar Charging Deep Loop Powerwall Panel
Low downtime and increased productivity start with Solar Charging Deep Loop Powerwall Panel. Solar Charging Deep Loop Powerwall Panel has a long service life, moderate charge and discharge performance, and a low self-discharge rate They're ideal for devices used in telecom power systems. Solar Charging Deep Loop Powerwall Panel is suitable for a wide range of energy storage applications, particularly renewable solar energy systems. Solar Charging Deep Loop Powerwall Panel has a three-year warranty at an average temperature of 35°C.

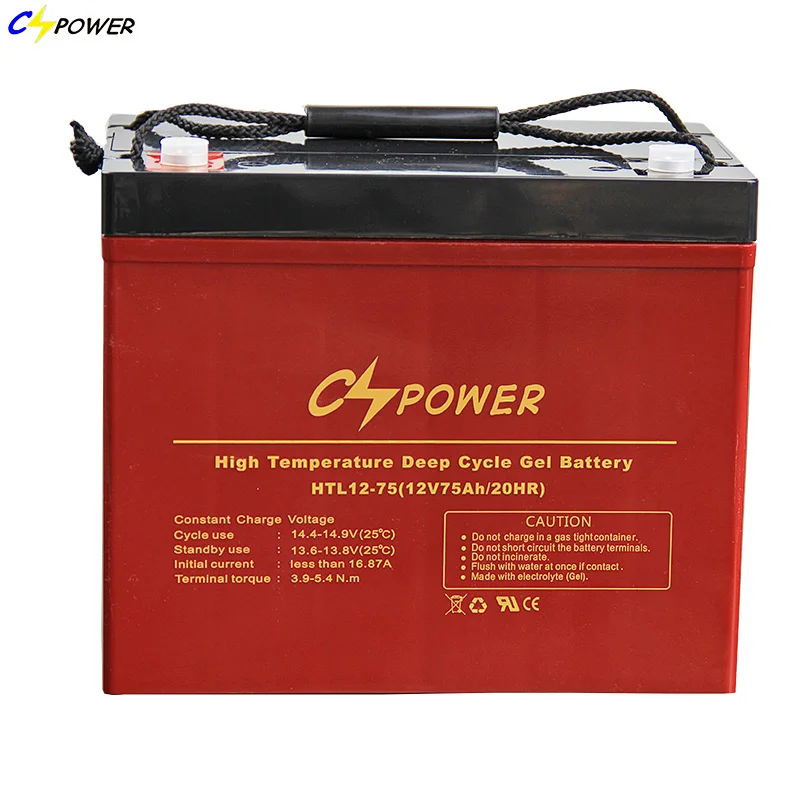

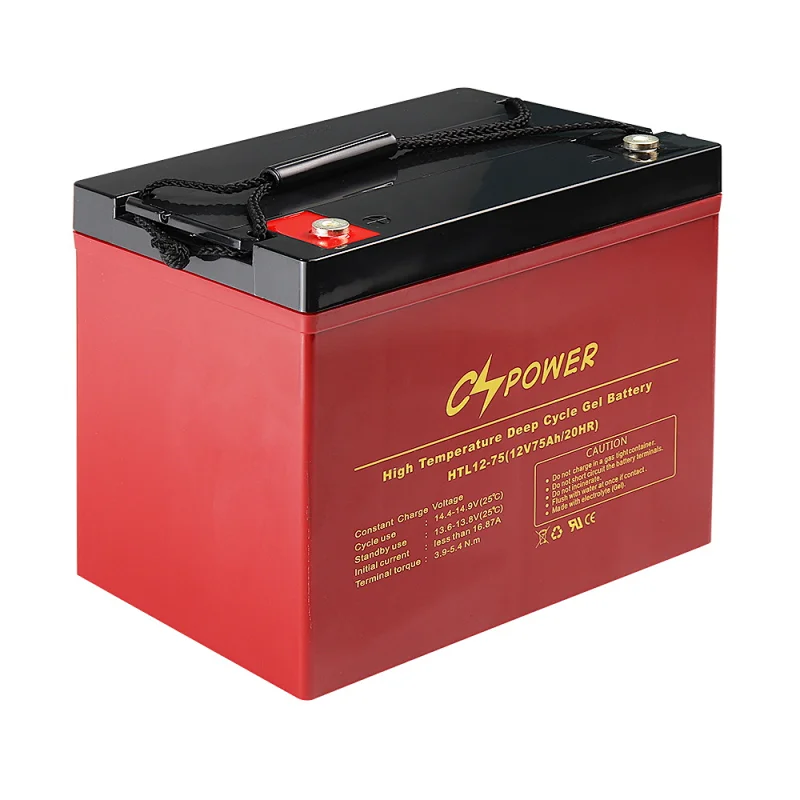

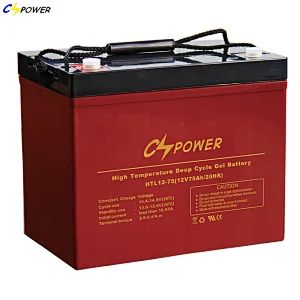

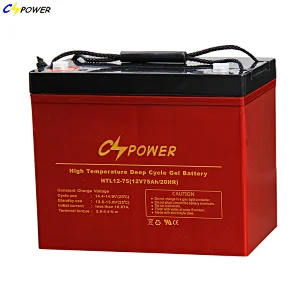

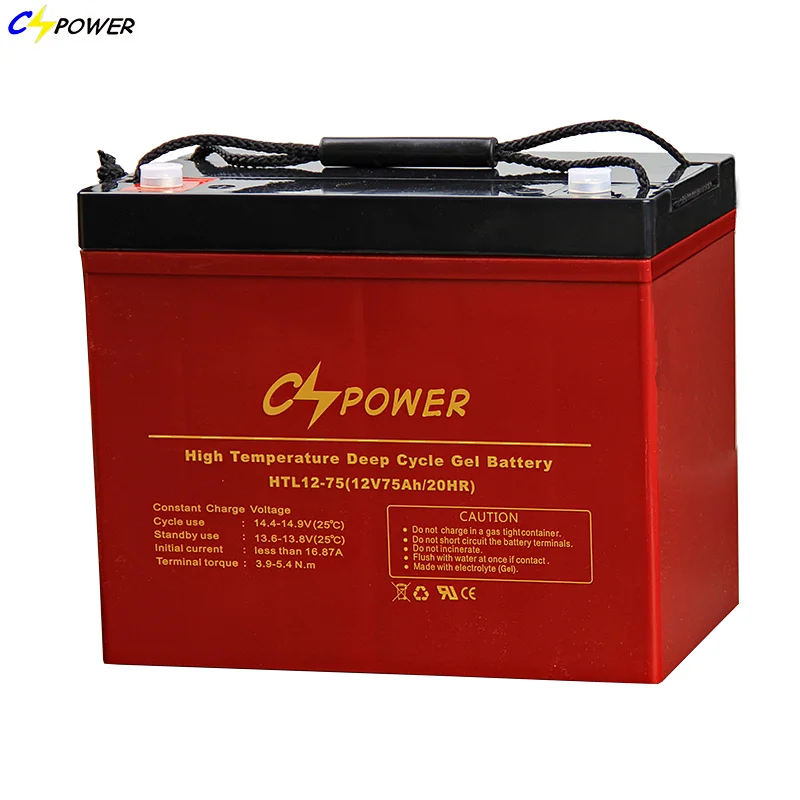

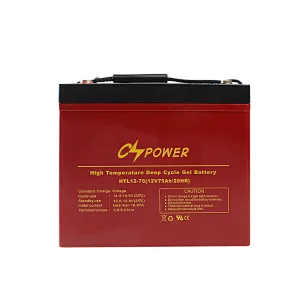

Solar Charging Deep Loop Powerwall Panel
Solar Charging Deep Loop Powerwall Panel
- Place of Origin:CN;GUA
- Voltage:12v
- Sealed Type:Sealed
- Maintenance Type:Free
- Usage:ups, solar, inverter, telecom, back-up
- Brand Name:CSPOWER
- Model Number:HTL12-75Ah
- Size:260*169*208*227mm
- Weight:25.3
- Nominal Capacity:75Ah
Solar Charging Deep Loop Powerwall Panel Description
| HTL12-75 | |||
| Nominal Voltage | 12V (6 cells per unit) | ||
| Design Floating Life @ 25℃ | 20 Years | ||
| Nominal Capacity @ 25℃ | 20 hour rate @ 3.75A, 10.8V | 75Ah | |
| Capacity @ 25℃ | 10 hour rate (6.8A, 10.8V) | 68Ah | |
| 5 hour rate (11.9A, 10.5V) | 59.5Ah | ||
| 1 hour rate (45.8A, 9.6V) | 45.8Ah | ||
| Internal Resistance | Full Charged Battery @ 25℃ | ≤6.5mΩ | |
| Ambient Temperature | Discharge | -25℃~60℃ | |
| Charge | -25℃~60℃ | ||
| Storage | -25℃~60℃ | ||
| Max.Discharge Current | @ 25℃ 800A(5s) | ||
| Capacity affected by Temperature (10 hour ) | 40℃ | 108% | |
| 25℃ | 100% | ||
| 0℃ | 90% | ||
| -15℃ | 70% | ||
| Self-Discharge @25℃per Month | 3% | ||
| Charge (Constant Voltage) @ 25℃ | Standby Use | Initial Charging Current Less than 17A Voltage 13.6 - 13.8V | |
| Cycle Use | Initial Charging Current Less than 17A Voltage 14.4 - 14.9V | ||
| Dimension (mm*mm*mm) | Length 407±1 * Width 173±1 * Height 283±1 (Total Height 226±1) | ||
| Weight (kg) | 45.7±3% | ||

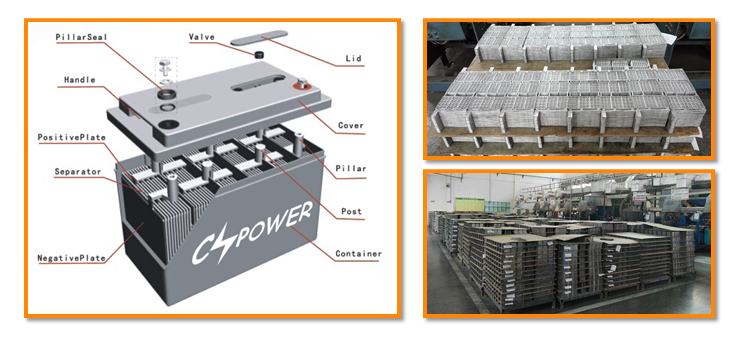

GEL Structure
Solar Charging Deep Loop Powerwall Panel
CSPOWER Hot Sale 12v Battery for Solar Charging is Not Only Safe to Use, but Also Has the Advantages of Low Self-discharge, Excellent Deep Discharge Resistance, Long Cycle Life, Low Floating Charge Voltage, Low Floating Charge Current, and Outstanding Reliability. Moreover, the 12v Battery for Solar Charging Produced by Our Company is Also an Internationally Recognized Green and Environmentally Friendly Product, and It is Also an Environmentally Friendly Product That China Strongly Encourages and Supports.
