The solar panels plus battery storage has good discharging performance, extended cycle life, and stable performance at high and low temperatures. The solar panels plus battery storage is suitable for a wide range of energy storage applications, particularly renewable solar energy systems. The solar panels and battery is maintenance-free, carried with valve-sealed construction with no free electrolyte.

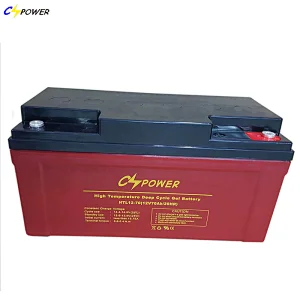

solar panels and battery
Place of Origin:CN;GUA
Voltage:12v
Sealed Type:Sealed
Maintenance Type:Free
Usage:Solar,Wind energy system, UPS system, Mrine system, Golf Cart
Brand Name:CSPOWER/OEM brand

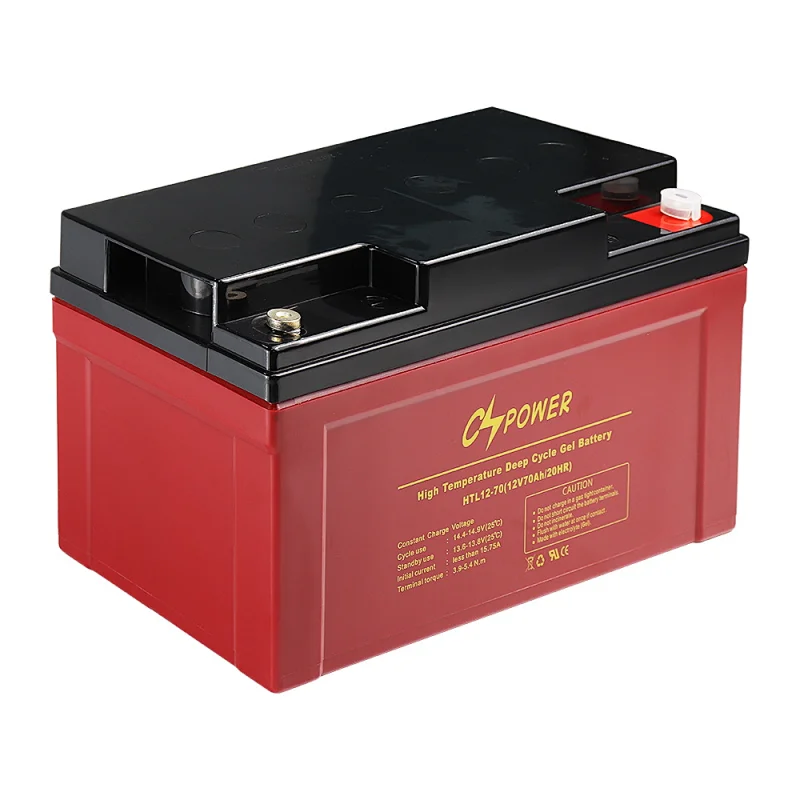

Model Number:HTL12-70
Size:350*167*178*178(mm)
Weight:23.6kg
Nominal Capacity:70AH
solar panels and battery
HTL12-70 | |||
Nominal Voltage | 12V (6 cells per unit) | ||
Design Floating Life @ 25℃ | 15 Years | ||
Nominal Capacity @ 25℃ | 20 hour rate@ 21.0A, 5.4V | 70Ah | |
Capacity @ 25℃ | 10 hour rate (37.8A, 5.4V) | 63Ah | |
5 hour rate (66.8A, 5.25V) | 55.5Ah | ||
1 hour rate (233.3A, 4.8V) | 42.7Ah | ||
Internal Resistance | Full Charged Battery@ 25℃ | ≤7.3mΩ | |
Ambient Temperature | Discharge | -25℃~60℃ | |
Charge | -25℃~60℃ | ||
Storage | -25℃~60℃ | ||
Max.Discharge Current | @ 25℃ 420A(5s) | ||
Capacity affected by Temperature (10 hour ) | 40℃ | 108% | |
25℃ | 100% | ||
0℃ | 90% | ||
-15℃ | 70% | ||
Self-Discharge@25℃per Month | 3% | ||
Charge (Constant Voltage) @ 25℃ | Standby Use | Initial Charging Current Less than 16A Voltage 13.6 - 13.8V | |
Cycle Use | Initial Charging Current Less than 16A Voltage 13.6 - 13.8V | ||
Dimension (mm*mm*mm) | Length 350±1 * Width 167±1 * Height 178±1 (Total Height 178±1) | ||
Weight (kg) | 23.5±3% | ||
Solar Technical Specs Mobility Scooter Battery
Product's Details
The HTL series of Solar Storaging Technical Specs Deep Loop Gel Mobility Scooter Battery is a high-temperature sealed free maintenance deep cycle GEL battery with an expected lifespan of 18-20 years in float operation, which is 30% longer than a regular Gel battery and 50% longer than a Lead Acid AGM battery.
IEC, CE, and ISO requirements have been met. The HTL series of Solar Storaging Technical Specs Deep Loop Gel Mobility Scooter Battery maintains high consistency for enhanced performance and stable standby service life attributable to updated valve regulated technology and high purity raw GEL materials. It's made specifically used for high- and low-temperature environments.
Solar Technical Specs Mobility Scooter Battery
12V voltage
Floating service life is 15 years at 25 degrees Celsius/77 degrees Fahrenheit.
At 50% DOD, the cycle life is over 1500 cycles.
Warranty: A 24-month replacement warranty is included.
Delivery time ranges from 15 to 25 days, depending on amount.
1020pcs/20'GP Container; 1PC/Carton; 60pcs/Pallet; 1PC/Carton; 60pcs/Pallet; 1020pcs/20'GP Container
Certifications
Applications for High temperature deep cycle gel batteries
BTS Stations
Solar & Wind energy system
UPS system
Mrine system
Golf Cart&Electric Wheels
Other power system
CSPOWER Deep Cycle Solar Panel Battery Have Sufficient Battery Capacity
Capacity is an Important Standard for Testing Battery Life. the Dense Internal Structure Ensures Uniform Electrochemical Reaction During High Current Discharge, Repairs the Loss of Capacitance Caused by Self-discharge, and Makes the Battery Durable.
CSPOWER Deep Cycle Solar Panel Battery Are Recycled and Have a Long Service Life
There is No Harm During Use, and No Substances Harmful to the Environment Will Be Leaked After Destruction.
