CSPOWER OPzV 2V 250Ah Solar Power GEL Battery

CSPOWER OPzV 2V 250Ah Solar Power GEL Battery

Model NO.: OPzV2-250
Delivery:: EXW,FCA,FOB,CIF,CFR
Minimum order quantity:: 24 pieces
Supply Ability:: 100000 pieces / Month
Country of Origin:: Shenzhen port
Stock Time:: 10-45 days after order confirmed Days

Quantity:

Product Description

Place of Origin:CN;GUA
Weight:23kg
Size:L124 *W206 *H356 *TH389mm
Voltage:2v
Model Number:OPzV2-250
Brand Name:CSPOWER/OEM brand
Maintenance Type:Free
Nominal Capacity:250Ah
Sealed Type:Sealed
Usage:ups, solar, inverter, telecom

CSPOWER OPzV Solar Batteries 2V 250Ah

Product Parameters

1. CSPOWER Tubular Plate OpzV Battery OPzV2-250 Specification

OPzV2-250
Nominal Voltage			2V(Single Cell)
Design Floating Life @ 25℃			25 Years
Nominal Capacity @ 25℃		10 hour rate @ 25.0A,1.8V	250Ah
Capacity @ 25℃		20hour rate (13.13A,1.8V )	262.6Ah
		5 hour rate (42.5A,1.75V )	212.5Ah
		1 hour rate (158A,1.6V )	158Ah
Internal Resistance		Full Charged Battery@ 25℃	≤0.57mΩ
Ambient Temperature		Discharge	-40℃~70℃
		Charge	-0℃~50℃
		Storage	-20℃~60℃
Max.Discharge Current			@ 25℃ 1200A(5s)
Capacity affected by Temperature (10 hour )		40℃	105%
		25℃	100%
		0℃	89%
		-15℃	79%
Self-Discharge@25℃per Month			2%
Charge (Constant Voltage) @ 25℃	Standby Use	Initial Charging Current Less than 50.0A Voltage 2.25-2.3V
	Cycle Use	Initial Charging Current Less than 50.0A Voltage 2.37-2.4V
Dimension (mmmmmm)	Length 124±1 * Width 206±1 * Height 375±1 (Total Height 390±1)
Weight (kg)	23±3%

More capacity details for OpzV 2v series, please kindly Clickhere

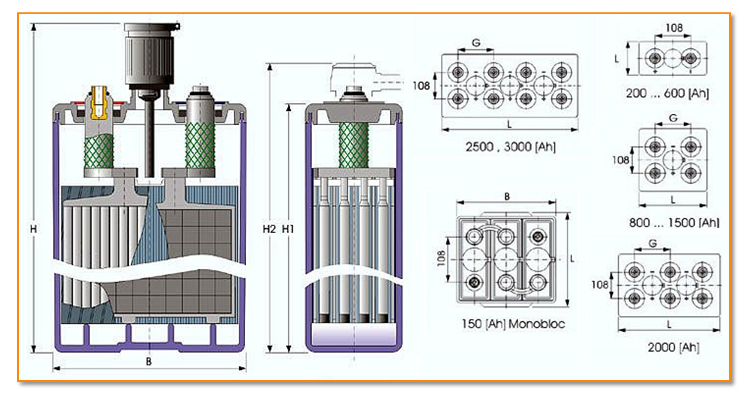

2.CSPOEWR Tubular Plate OPzV Battery Structure

101 Solar battery structure.PNG

Positive Plates: Robust tubular plates consisting of Pb-Ca-Sn alloy, optimized for high corrosion resistance, offer an extreme high cycling expectancy;
Negative Plates: Grid plate construction consisting of lead calcium alloy;
Separator: Microporous and robust PVC-SiO2 separator, for positive and negative plates and optmized for low internal resistance;Container: ABS (UL94-HB), Flammability resistance of UL94-V1 can be available upon request;
Terminal Poles: Screw connection for easy and safe assembly and maintenance-free connection with excellent conductivity;
Valves: Release gas in case of excess pressure and protects the cell against atmosphere, reasonable open and close valve pressure, high reliable on performance.

Battery Features

2V tubular plate OPzV battery solar deep cycle gel battery.PNG

By combining the newly developed tubular positive plates with fumed gelled electrolyte, CSPOWER created the innovative OPzV range of batteries. The range offers 20 years design life and super high deep cycling capabilities. This range is recommended for telecom outdoor applications, renewable energy systems and other harsh environment applications.

Features and Advantages for CSPOWER OPzV Solar Batteries 2V 250Ah
1. Over 20 years design life at floating condition @ 25°C
2. Wide operating temperature range from -40°C to 60°C
3. Tubular positive plate with prolonged cycle life
4. Fumed Silica gel electrolyte
5. Lead Calcium die cast grid with improved corrosion resistance capability
6. Low self-discharge rate and long shelf life
7. Excellent deep discharge recovery capability

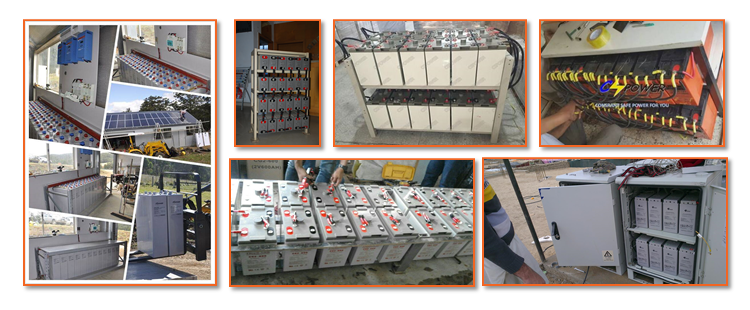

Application

300 Solar battery application.PNG

Applications for CSPOWER OPzV Solar Batteries 2V 250Ah

Telecom, Electric Utilities, Control Equipments, Security Systems, Medical Equipments, UPS systems, Railroad Utilities, Photovoltaic Systems, Renewable Energy System and so on.

Certifications

201 Solar battery Certification.PNG
