Designed floating service life: over 20years @25ºC
Cyclic usage: 100%DOD, >2000 cycles
80%DOD, >3000 cycles

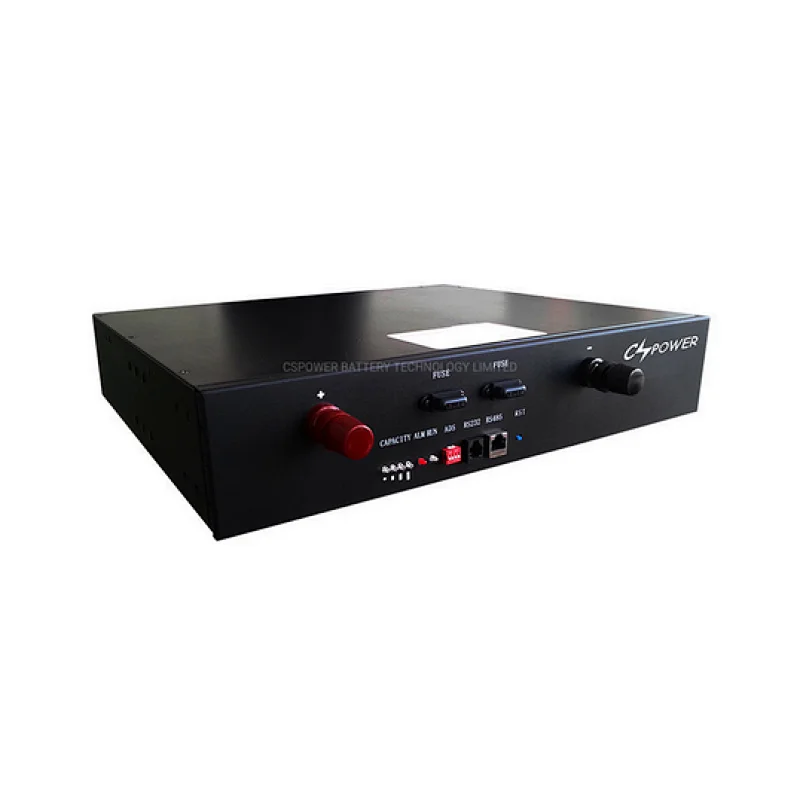

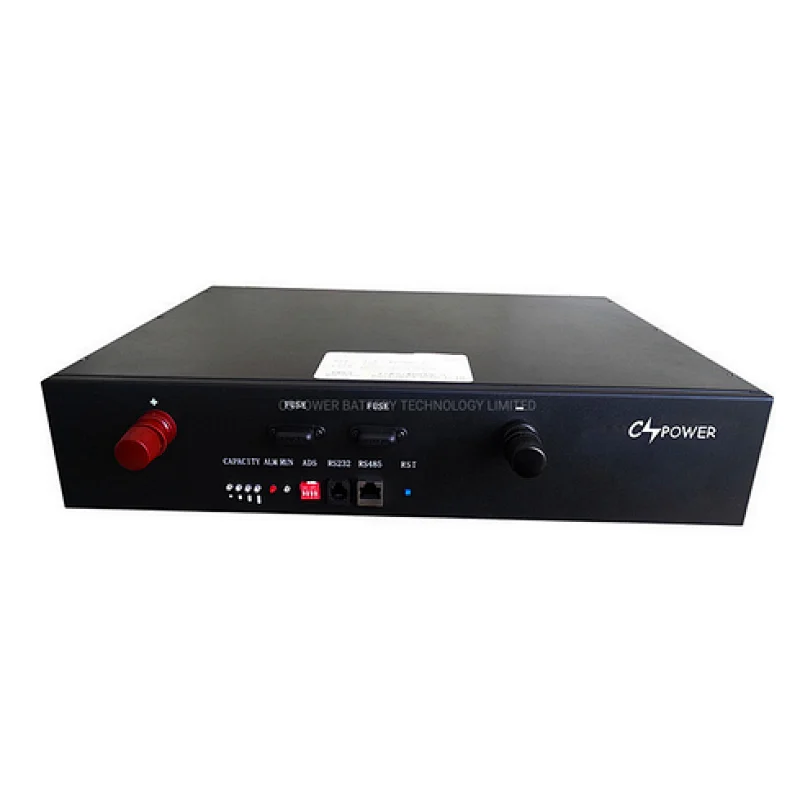

> Details of Lithium Iron Phosphate (LiFePO4)Battery 24V 100AH
MODEL
Voltage
Capacity
Dimension (mm)
Weight (kg)
(V)
(Ah)
Length
Width
Height
(±3%)
BT-P24100X-6-I
24
100
442
385
132
3
Product Features
> Features for CSPOWER Lithium battery
Due to the demand for energy saving strategies, CSPOWER delivers a full range of battery power systems with multiple nominal voltages (12V/24V/48V/240V/etc.). It is smaller in size and lighter in weight, but it has longer cycle life, temperature durability is stronger, and energy storage is more efficient. With the accurate and reliable battery management system (BMS), our lithium battery power system is a better solution for achieving highest efficiency and reliability. After years of practice, we have the most extensive experience in backup power supply in the industry, and we will continue to provide the best battery products.
> Advantages for CSPOWER Iron 100ah lifepo4 lithium battery
Cycle durability for a single cell is 2000 cycles, which is 3 to 4 times more than the cycle durability of a traditional lead acid battery.
Higher discharge rate, faster charging and dischargingWhen there is a need for backup power supply for a period of 10 hours or less, we could reduce up to 50% of the capacity configuration, comparing to lead acid battery.
High security. Our lithium battery is safe, electrochemical materials are stable, no fire or explosion under extreme conditions such as high temperature, short circuit, drop impact, piercing, etc
Energy density is high. The volume and weight of lithium battery is 1/3 to 1/4 of the traditional lead acid battery with the same capacity.
Energy conversion rate is 15% higher than that of a traditional lead acid battery, the advantage of energy saving is obvious. Self-discharge rate < 2% per month.
Broad temperature adaptability. Products perform well at a temperature of -20°C to 60°C, without air conditioning system.
Optional LCD digital display. Optional LCD digital display can install in the front panel of battery and show battery voltage, capacity, current information, etc
