- Brand Name:CSPOWER
- Maintenance Type:Free
- Place of Origin:CN;GUA
- Sealed Type:Sealed
- Model Number:OPzV2-800 solar battery
- Usage:ups battery, battery for solar system, inverter , Accumulator battery
- Weight:63.5kg

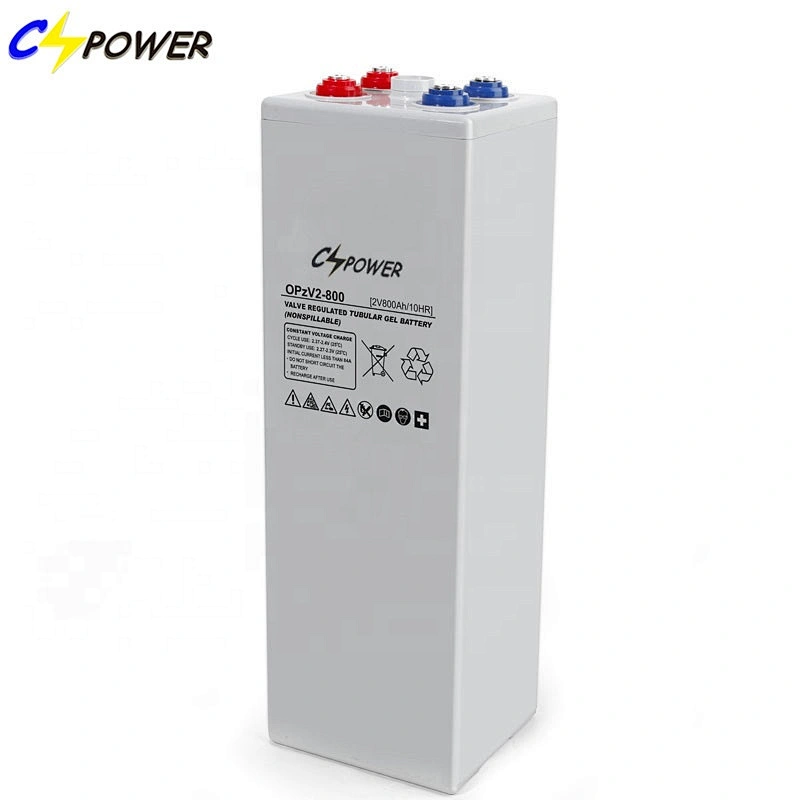

OPzV GEL Tubular Battery 2V Rechargeable Battery 800Ah Deep Cycle
| 1. Over 20 years design life at floating condition @ 25°C 2. Wide operating temperature range from -40°C to 60°C 3. Tubular positive plate with prolonged cycle life 4. Fumed Silica gel electrolyte 5.Lead Calcium die cast grid with improved corrosion resistance capability 6. Low self-discharge rate and long shelf life 7. Excellent deep discharge recovery capability |
|
OPzV2-800 | |||
Nominal Voltage | 2V(Single Cell) | ||
Design Floating Life @ 25℃ | 25 Years | ||
Nominal Capacity @ 25℃ | 10 hour rate @80.0A,1.8V | 800Ah | |
Capacity @ 25℃ | 20hour rate (42A,1.8V ) | 840Ah | |
5 hour rate (136A,1.75V ) | 680Ah | ||
1 hour rate (505.6A,1.6V ) | 505.6Ah | ||
Internal Resistance | Full Charged Battery @ 25℃ | ≤0.30mΩ | |
Ambient Temperature | Discharge | -40℃~70℃ | |
Charge | -0℃~50℃ | ||
Storage | -20℃~60℃ | ||
Max.Discharge Current | @ 25℃ 3500A(5s) | ||
Capacity affected by Temperature (10 hour ) | 40℃ | 105% | |
25℃ | 100% | ||
0℃ | 89% | ||
-15℃ | 79% | ||
Self-Discharge @25℃per Month | 2% | ||
Charge (Constant Voltage) @ 25℃ | Standby Use | Initial Charging Current Less than 160.0A Voltage 2.25-2.3V | |
Cycle Use | Initial Charging Current Less than 160.0A Voltage 2.37-2.4V | ||
Dimension (mm*mm*mm) | Length 191±1 * Width 210±1 * Height 666±1 (Total Height 681±1) | ||
Weight (kg) | 65±3% | ||
CSPOWER OPzV series tubular GEL 2V rechargeable battery is with 25 years floating design life, it is a Valve Regulated Tubular Gel battery that adopts immobilized GEL and Tubular Plate technology to offer high reliability and performance. This tubular GEL 2V rechargeable battery is designed and manufactured according to DIN standards and with die-casting positive grid and patent formula of active material. OPzV series exceeds DIN standard values with more than 25 years floating design life at 25℃ and is even more suitable for cyclic use under extreme operating conditions.
