Place of Origin:CN;GUA
Usage:UPS
Sealed Type:Sealed
Maintenance Type:Free
Brand Name:CSPOWER

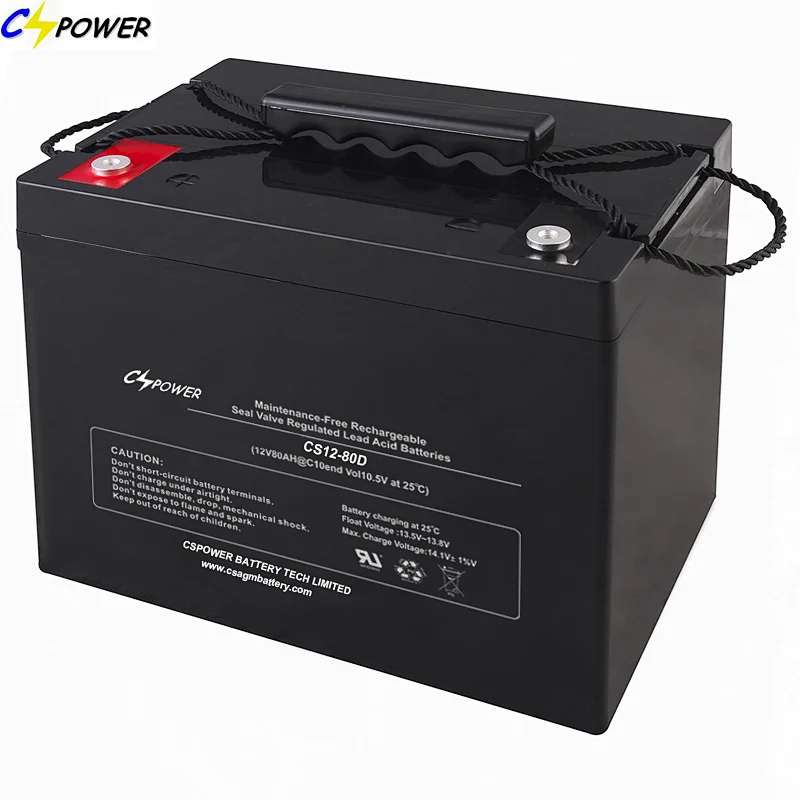

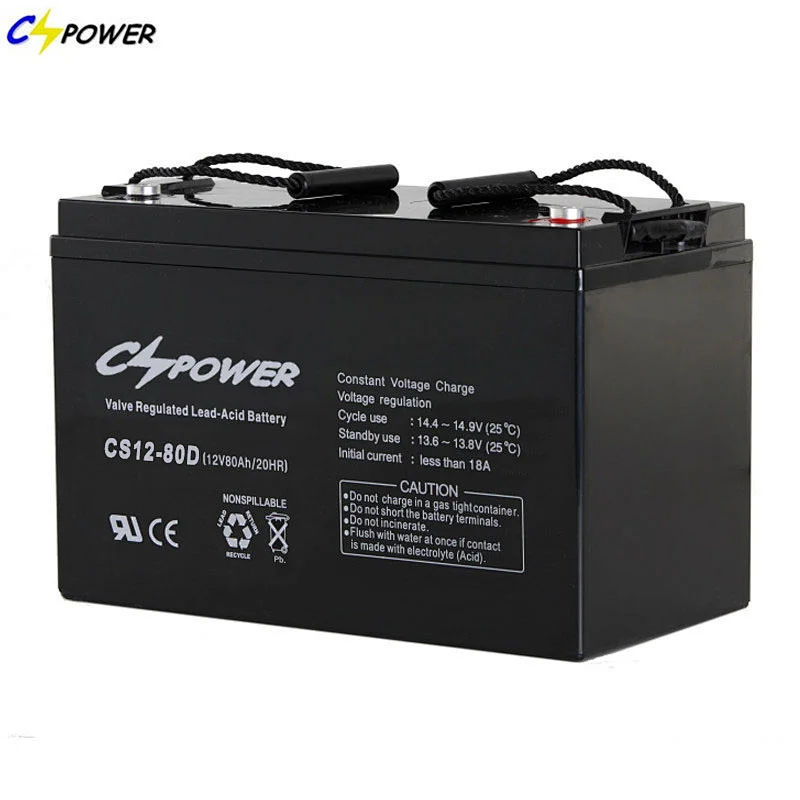

Model Number:CG12-80 gel battery
Weight:24kgs gel battery
Ups Installing Regular Solar Powerwall Panel
Maintenance Free Battery for UPS Bateria Sealed 12v 80ah Gel Battery for Solar
-- For UPS/Electronic toy/Alarm system
Ups Installing Regular Solar Powerwall Panel
1. 3 years warranty at 25°C average
2. Able to operate at 40°C
3. Cycle usage: 50% DOD, 1100cycles, 30% DOD 2200 cycles.
4. Design Floating Life 25°C:10-15 years
5. Self-discharge is 2% ~ 3% per month.
Ups Installing Regular Solar Powerwall Panel
CG12-80 | |||
Nominal Voltage | 12V (6 cells per unit) | ||
Design Floating Life @ 25℃ | 12Years | ||
Nominal Capacity @ 25℃ | 10 hour rate @ 8.0A,10.8V | 80Ah | |
Capacity @ 25℃ | 20 hour rate (4.44A, 10.8V) | 88.8Ah | |
5 hour rate (14.6A, 10.5V) | 73Ah | ||
1 hour rate (53.2A,9.6V) | 53.2Ah | ||
Internal Resistance | Full Charged Battery @ 25℃ | ≤6.0mΩ | |
Ambient Temperature | Discharge | -20℃~60℃ | |
Charge | -10℃~60℃ | ||
Storage | -20℃~60℃ | ||
Max.Discharge Current | @ 25℃ 480A(5s) | ||
Capacity affected by Temperature (10 hour ) | 40℃ | 105% | |
25℃ | 100% | ||
0℃ | 85% | ||
-15℃ | 65% | ||
Self-Discharge @ 25℃per Month | 3% | ||
Charge (Constant Voltage) @ 25℃ | Standby Use | Initial Charging Current Less than 20A Voltage 13.6-13.8V | |
Cycle Use | Initial Charging Current Less than 20A Voltage 14.4-14.9V | ||
Dimension (mm*mm*mm) | Length 260±1 * Width 169±1 * Height 211±1 (Total Height 215±1) | ||
Weight (kg) | 24.0±3% | ||
HTL12-100 HTL12-150 HTL12-200 OPzV2-1000
Application

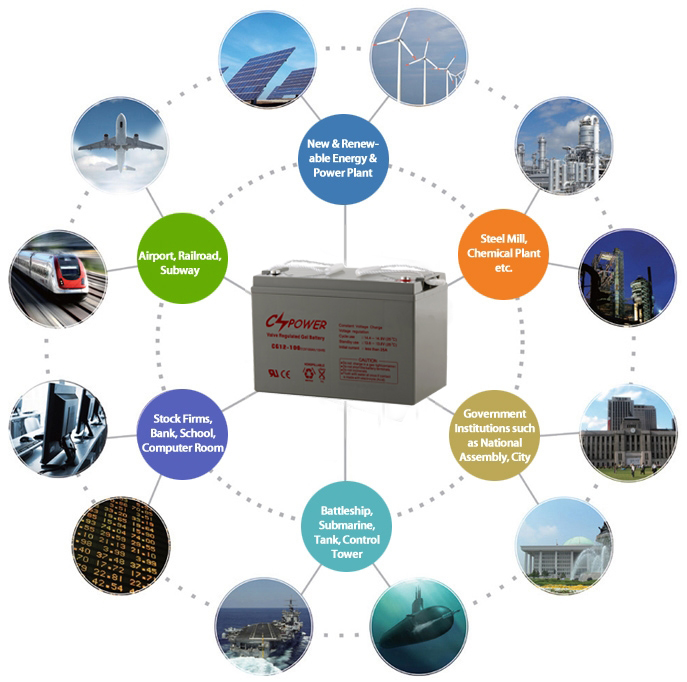

Applications of Cspower Valve Regulaated Solar Gel battery:
Telecom, Electric Utilities, Control Equipments, Security Systems, Medical Equipments, UPS systems, Railroad Utilities, Photovoltaic Systems, Renewable Energy System and so on.
Maintenance Free Battery for UPS Choose Cspower，UPS is Called Uninterruptible Power Supply, and the Maintenance-free Battery Adopts a Fully Sealed Structure and Modern Production Technology. It Has Excellent Performance of High Performance, Long Life, No Pollution, Maintenance-free, Safe, and Reliable, Cspower is the Specialized Manufacturer for 18 Years, High Quality, Excellence, Recycling, Long Service Life, Cold and High-temperature Resistance, Strong Sealing, and Not Easy to Leak. Cspower Battery Tech Co.,Ltd is the Preferred Manufacturer of Ups Maintenance-free Batteries
