- Place of Origin:CN;GUA
- Sealed Type:Sealed
- Maintenance Type:Free

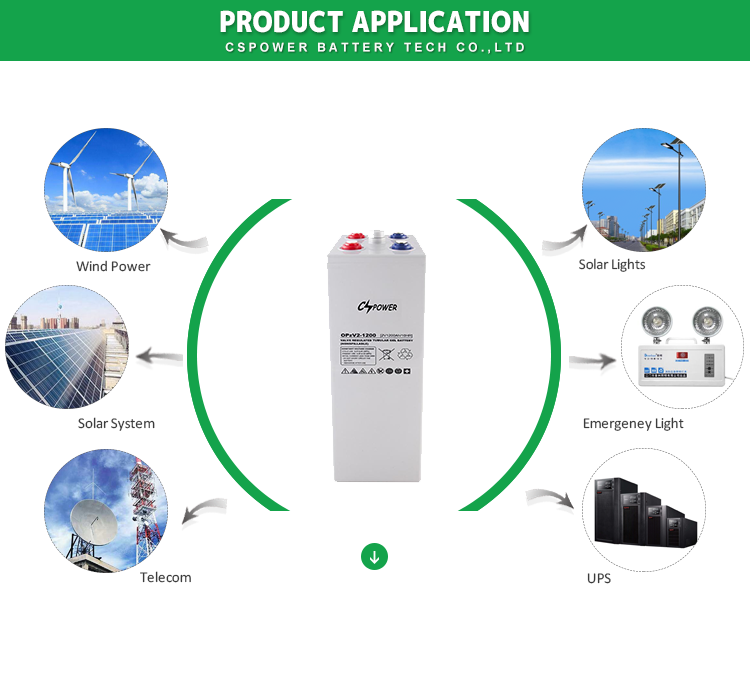

- Usage:ups, solar, inverter, telecom
- Brand Name:CSPOWER/OEM brand
- Model Number:OPzV2-1200
- Weight:92.5kg

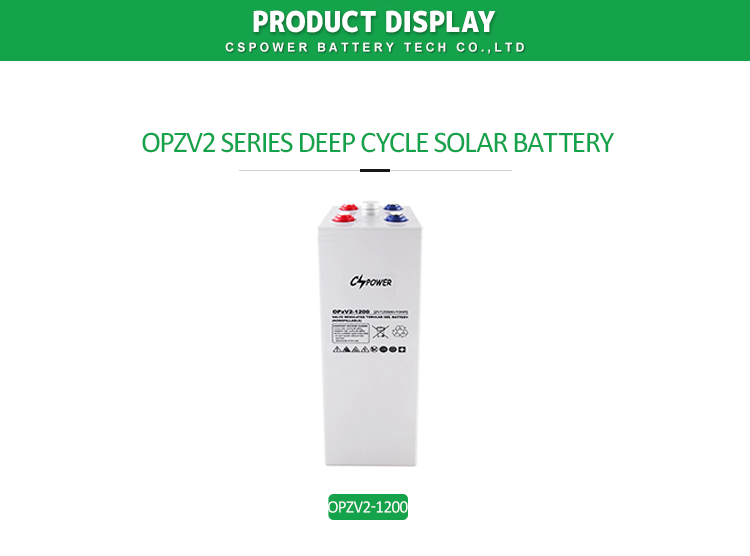

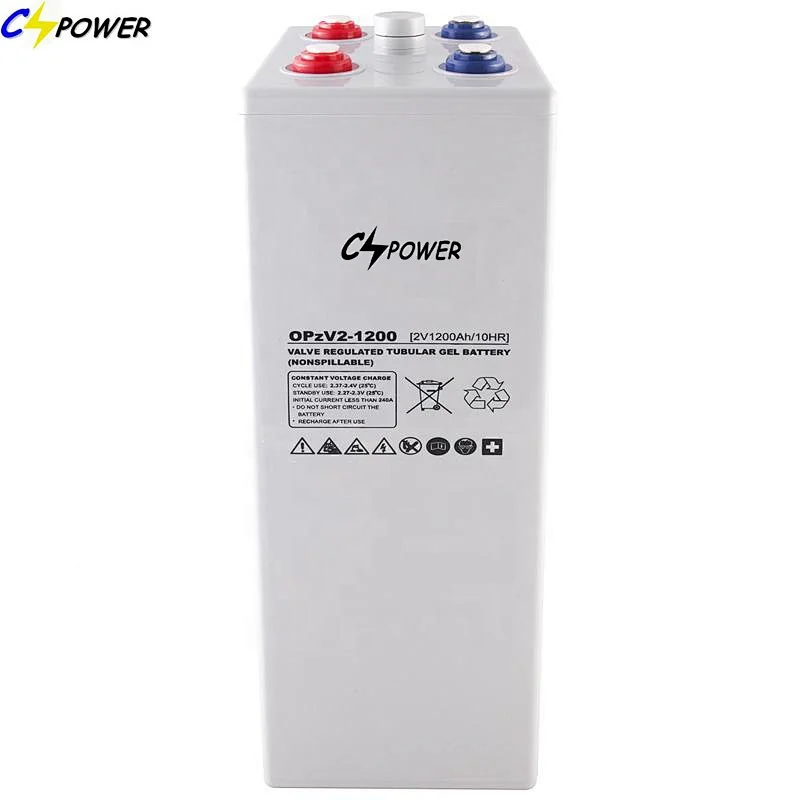

OPzV 2V 1200AH Solar Batteries Pure Gel Deep Cycle Battery For Solar Energy System
| 1. Over 20 years design life at floating condition @ 25°C 2. Wide operating temperature range from -40°C to 60°C 3. Tubular positive plate with prolonged cycle life 4. Fumed Silica gel electrolyte 5.Lead Calcium die cast grid with improved corrosion resistance capability 6. Low self-discharge rate and long shelf life 7. Excellent deep discharge recovery capability |  |
Nominal Voltage | 2V(Single Cell) | ||
Design Floating Life @ 25℃ | 25 Years | ||
Nominal Capacity @ 25℃ | 10 hour rate @120.0A,1.8V | 1200Ah | |
Capacity @ 25℃ | 20hour rate (63A,1.8V ) | 1260Ah | |
5 hour rate (204A,1.75V ) | 1020Ah | ||
1 hour rate (758.4A,1.6V ) | 758.4Ah | ||
Internal Resistance | Full Charged Battery @ 25℃ | ≤0.25mΩ | |
Ambient Temperature | Discharge | -40℃~70℃ | |
Charge | -0℃~50℃ | ||
Storage | -20℃~60℃ | ||
Max.Discharge Current | @ 25℃ 4000A(5s) | ||
Capacity affected by Temperature (10 hour ) | 40℃ | 105% | |
25℃ | 100% | ||
0℃ | 89% | ||
-15℃ | 79% | ||
Self-Discharge @25℃per Month | 2% | ||
Charge (Constant Voltage) @ 25℃ | Standby Use | Initial Charging Current Less than 240.0A Voltage 2.25-2.3V | |
Cycle Use | Initial Charging Current Less than 240.0A Voltage 2.37-2.4V | ||

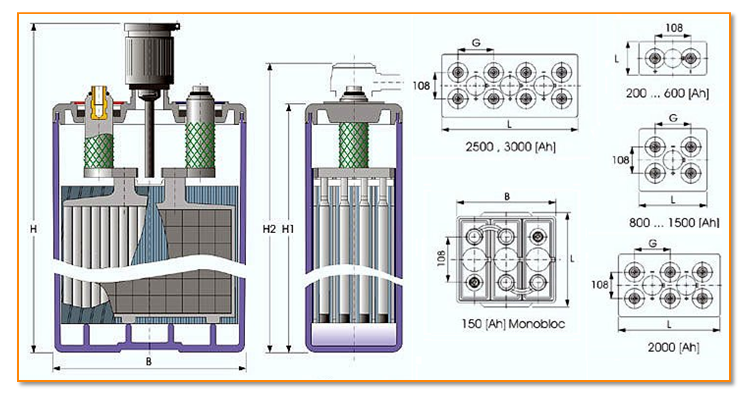

Dimension (mm*mm*mm) | Length 275±1 * Width 210±1 * Height 666±1 (Total Height 681±1) | ||
Weight (kg) | 92.5±3% | ||

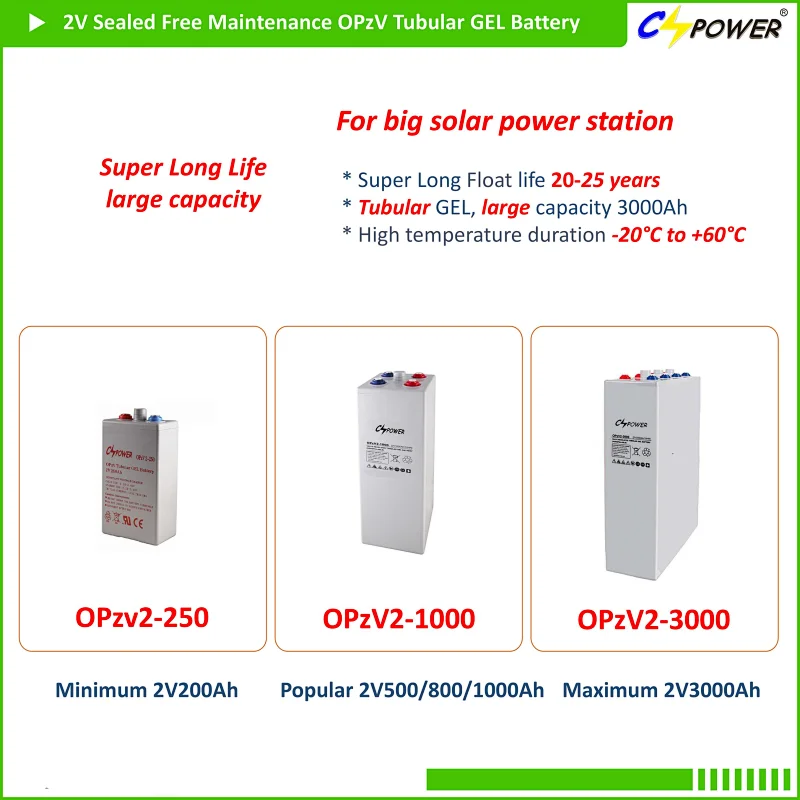

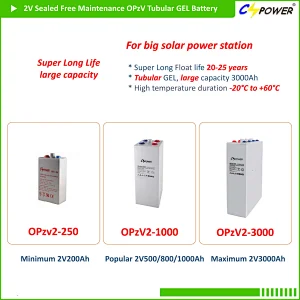

CSPOWER OPzV series Tubular GEL battery is with 25 years floating design life, it is a Valve Regulated Tubular Gel battery that adopts immobilized GEL and Tubular Plate technology to offer high reliability and performance. The Battery is designed and manufactured according to DIN standards and with die-casting positive grid and patent formula of active material. OPzV series exceeds DIN standard values with more than 25 years floating design life at 25℃ and is even more suitable for cyclic use under extreme operating conditions.
Q: Can you print my logo on the battery cover?
A:Yes, OEM is available,we can print your logo on the battery case freely. Welcome to send us your logo design and discuss with us about the details.
Q:How long is your delivery time?
A:Usually it takes about 10-20 days for production varies with products. Urgent delivery it in 5days.
Q: What is your warranty policy?
A: We provide 1 ~ 5 years different warranty.
Q:Why Choose CSPOWER?
A: 1) Nearly 13 years leading manufacturer,all production lines in our factory are automatic and imported from Germany.
2) 20000KWH production capacity to guarantee the best deliver time
3) The good construction warranty - 1-5 years free replacement no need return.
4) Comprehensive certificates approval: CE / ISO / IEC
5) The reasonable and most competitive price without sacrifice of quality.
6) A professional experienced team to provide you high-quality service before and after sale.
