- Place of Origin:CN;GUA
- Sealed Type:Sealed
- Maintenance Type:Free
- Usage:UPS, Solar, Telecom system
- Brand Name:CSPOWER
- Model Number:FL12v-180ah gel battery
- Weight:54kgs

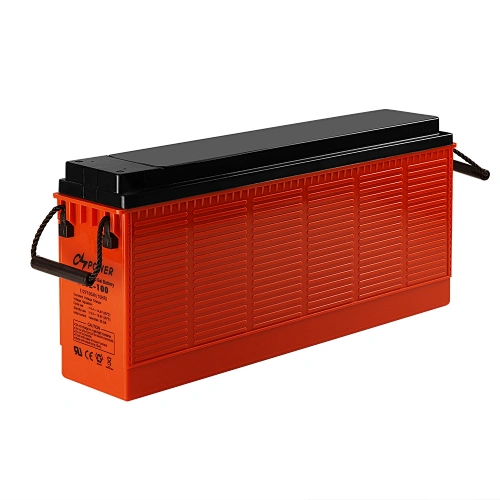

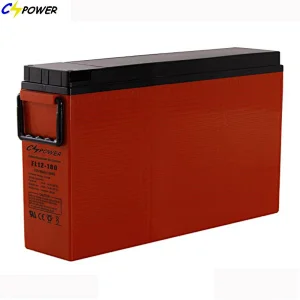

China manufacturer 12v 180ah rechargeable front terminal bateria maintenance free gel battery Rechargeable 12v 180ah Front Terminal Gel Battery for Solar UPS Telecom
2. Able to operate at 40°C
3. Cycle usage: 50% DOD, 1100cycles, 30% DOD 2200 cycles.
4. Design Floating Life 25°C: 15 years
5. Self-discharge is 2% ~ 3% per month.
HTL12-100 HTL12-150 HTL12-200 OPzV2-1000
| FL12-180 | |||
| Nominal Voltage | 12V (6 cells per unit) | ||
| Design Floating Life @ 25℃ | 12 Years | ||
| Nominal Capacity @ 25℃ | 10 hour rate @ 18.0A,10.8V | 180Ah | |
| Capacity @ 25℃ | 20hour rate (9.54A,10.8V) | 190.8Ah | |
| 5 hour rate (31.7A,10.5V) | 158.5Ah | ||
| 1 hour rate (114.8A,9.6V) | 114.9Ah | ||
| Internal Resistance | Full Charged Battery @ 25℃ | ≤3.1mΩ | |
| Ambient Temperature | Discharge | -20℃~60℃ | |
| Charge | -10℃~60℃ | ||
| Storage | -20℃~45℃ | ||
| Max.Discharge Current | @ 25℃ 1080A(5s) | ||
| Capacity affected by Temperature (10 hour ) | 40℃ | 105% | |
| 25℃ | 100% | ||
| 0℃ | 85% | ||
| -15℃ | 65% | ||
| Self-Discharge @ 25℃per Month | 3% | ||
| Charge (Constant Voltage) @ 25℃ | Standby Use | Initial Charging Current Less than 45.0A Voltage 13.6-13.8V | |
| Cycle Use | Initial Charging Current Less than 45.0A Voltage 14.4-14.9V | ||
| Dimension (mm*mm*mm) | Length(mm) 560±1 Width(mm) 125±1 Height(mm) 316±1 Total Height(mm) 316±1 | ||
| Weight (kg) | Weight(kg) 54.5±3% | ||
The rechargeable batteries are lead-lead dioxide systems. The dilute sulfuric acid electrolyte is absorbed by separators and plates and thus immobilized. Should the battery be accidentally overcharged producing hydrogen and oxygen, special one-way valves allow the gases to escape thus avoiding excessive pressure build-up. Otherwise, the battery is completely sealed and is, therefore, maintenance-free, leak proof and usable in any position.

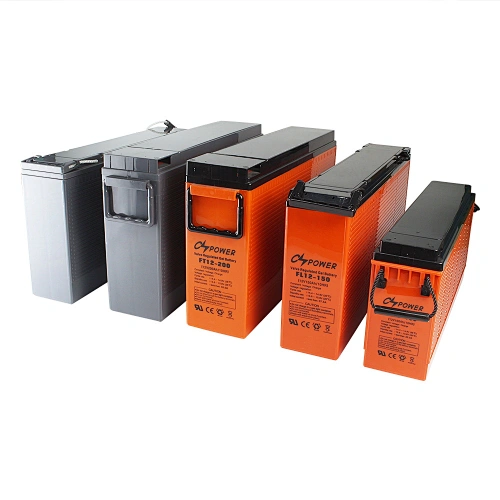

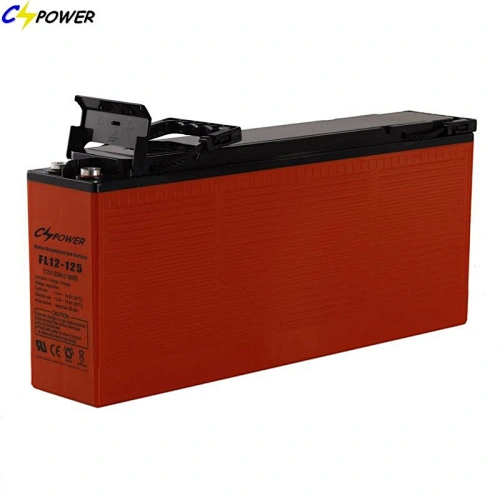

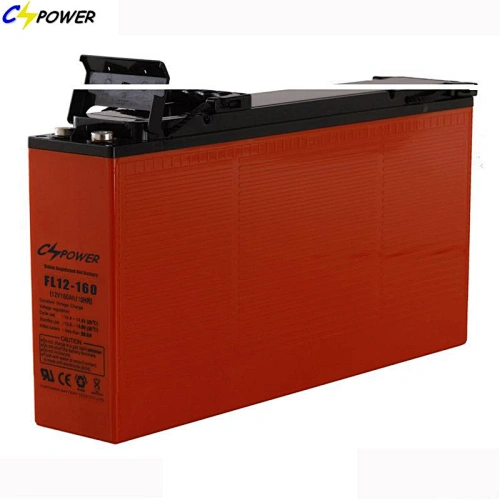

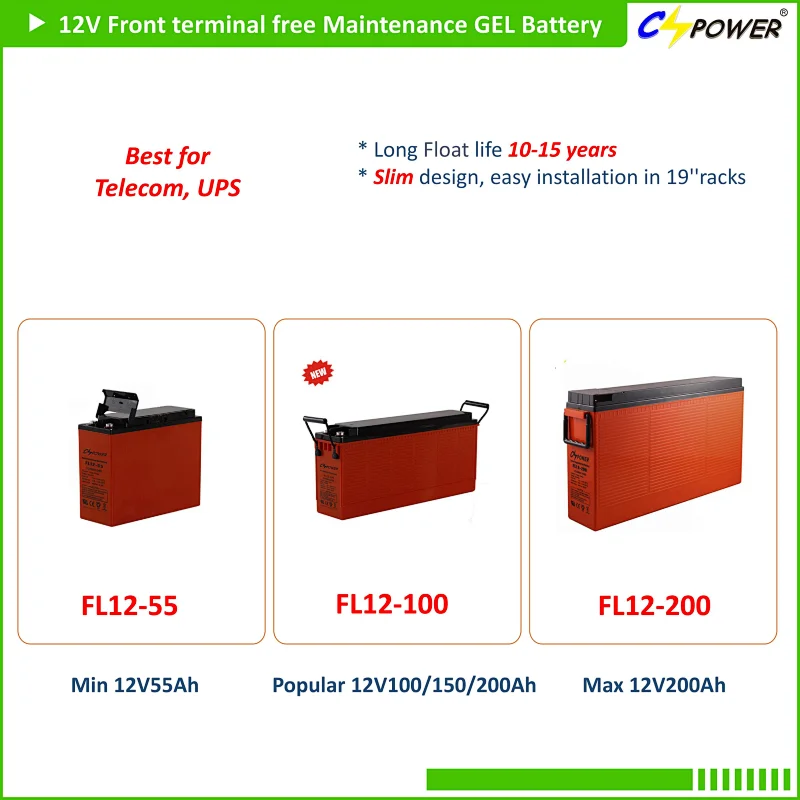

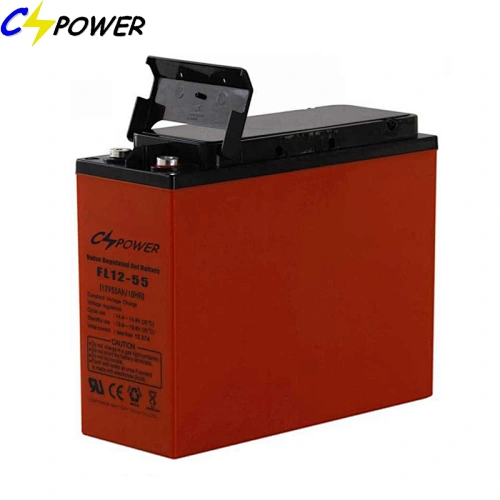

Features and Advantages of Front terminal Battery
Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to
99% and freedom from electrolyte maintenance or water adding.
1. Not restricted for air transport-complies with IATA/ICAO Special Provision A67.
2. UL-recognized component.
3. Can be mounted in any orientation.
4. Computer designed lead, calcium tin alloy grid for high power density.
5. Long service life, float or cyclic applications.
6. Maintenance-free operation.

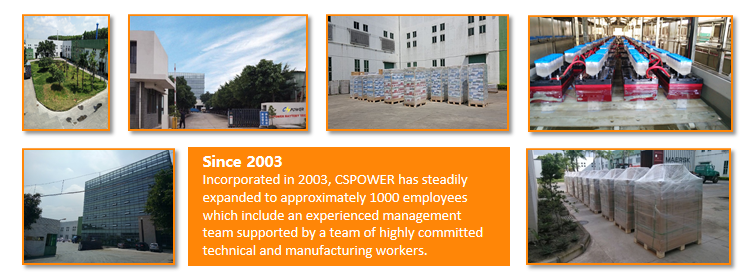

CSPOWER BATTERY TECH CO.,LTD is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Q: Can you print my logo on the battery cover?
A: Yes, OEM is available,we can print your logo on the battery case freely. Welcome to send us your logo design and dicuss with us about the details.
Q: How long is your delivery time?
A: Usually it takes about 10-20 days for production varies with products. Urgent delivery it in 5days
Q: What is your warranty policy?
A: We provide 1 ~ 5 years different warranty.
Q: Why Choose CSPOWER?

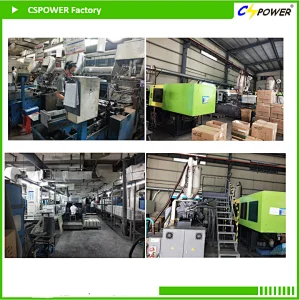

A: 1) Nearly 13 years leading manufacturer,all production lines in our factory are automatic and imported from Germany.
2) 20000KWH production capacity to guarantee the best deliver time
3) The good construction warranty - 1-5 years free replacement no need return.
4) Comprehensive certificates approval: CE / ISO / IEC
5) The reasonable and most competitive price without sacrifice of quality.
6) A professional experienced team to provide you high-quality service before and after sale.
