- Place of Origin:CN;GUA
- Sealed Type:Sealed
- Maintenance Type:Free
- Certification:ce
- Certification:UL
- Usage:Forklift, Golf buggies, solar battery, inverter battery
- Brand Name:CSPOWER

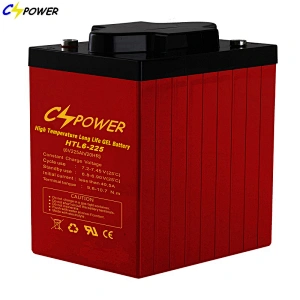

- Model Number:HTL6-250 deep cycle battery
- Weight:30.8 kgs deep cycle battery

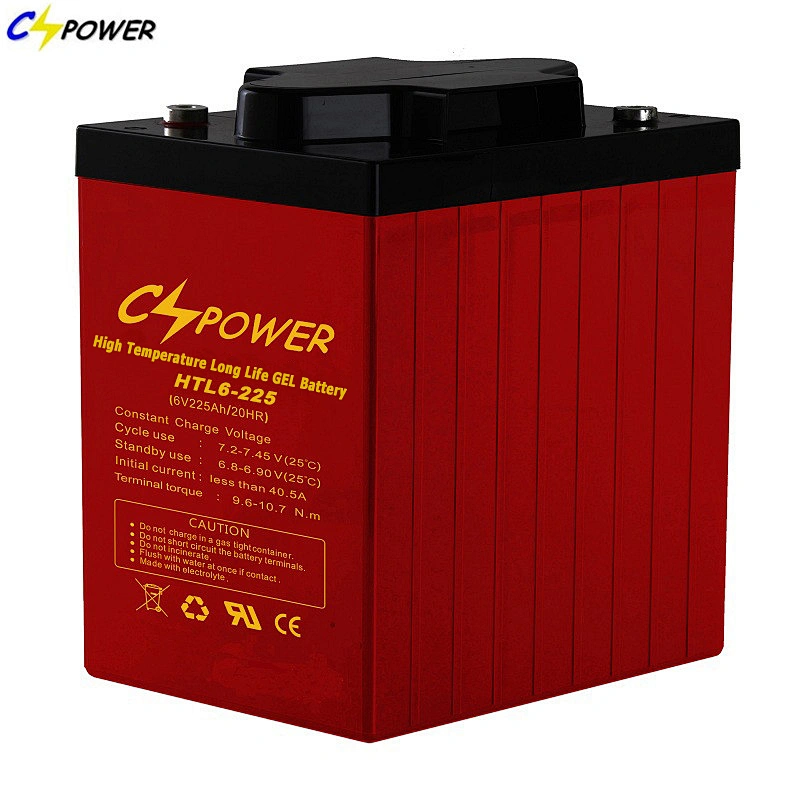

6V225ah Maintenance Free Long Life Deep Cycle Gel Solar Battery
Sealed 6V 225ah Deep Cycle Heavy Duty Motive Storage Batteries for Scooters Mobility pride /Caravan
2. Able to operate at 60°C
3. Cycle usage: 50% DOD, 1500cycles, 30% DOD 2200cycles.
4. Solar battery design Floating Life 25°C: 20 years
5. Self-discharge is 2% ~ 3% per month.
HTL6-250 | |||
Nominal Voltage | 6V (3 cells per unit) | ||
Design Floating Life @ 25℃ | 20 Years | ||
Nominal Capacity @ 25℃ | 20 hour rate @ 21.0A, 5.4V | 250Ah | |
Capacity @ 25℃ | 10 hour rate (37.8A, 5.4V) | 225Ah | |
5 hour rate (66.8A, 5.25V) | 199Ah | ||
1 hour rate (233.3A, 4.8V) | 138.9Ah | ||
Internal Resistance | Full Charged Battery @ 25℃ | ≤2.5mΩ | |
Ambient Temperature | Discharge | -25℃~60℃ | |
Charge | -25℃~60℃ | ||
Storage | -25℃~60℃ | ||
Max.Discharge Current | @ 25℃ 750A(5s) | ||
Capacity affected by Temperature (10 hour ) | 40℃ | 108% | |
25℃ | 100% | ||
0℃ | 90% | ||
-15℃ | 70% | ||
Self-Discharge @25℃per Month | 3% | ||
Charge (Constant Voltage) @ 25℃ | Standby Use | Initial Charging Current Less than 50A Voltage 6.8 - 6.9V | |
Cycle Use | Initial Charging Current Less than 50A Voltage 7.2 - 7.45V | ||
Dimension (mm*mm*mm) | Length 260±1 * Width 180±1 * Height 265±1 (Total Height 272±1) | ||
Weight (kg) | 34.7±3% | ||
The HTL deep cycle gel solar battery adopts the advanced developed nano gel electrolyte with super-C additive plus heavy duty plates design inside. It has a longer service life even deep cycle discharge use and can provide optimum and reliable service under extreme condition such as high temperature and frequent power failure, thus it is highly suited for tropical area in outdoor applications such as Telecom BTS stations and Off-grid PV system.Features and Advantages of high temperature deep cycle gel battery
1. Able to operate at 40-60°C
2. Longer life and higher stability under high temp. environment (no air-con needed)
3. Integrated design to ensure the best uniformity and reliability
4. Super-C additives: Deep discharge recovery capability, 1600cycles @50%DOD
CSPOWER Batteries for Scooters Mobility Pride, Optimized Grid, and Excellent Current Collection Effect Enable Batteries for Scooters Mobility Pride to Provide Greater Energy for a Longer Period of Time, Even Under Harsh Conditions. We Have a Standard Assembly Laboratory, Senior Battery Technology Experts, and Strictly Adopt a Series of Advanced Quality Control Measures to Ensure That You Get High-quality Motorcycle Batteries.
