Place of Origin:CN;GUA
Sealed Type: Sealed
Maintenance Type: Free
Usage: UPS systems, Inverter; Solar&Wind; Emergency Power Systems; Telecom
Brand Name:CSPOWER/ OEM Brand
Model Number: CS12-70( VRLA AGM Battery)
Weight:22.5kg/PC
12V 150AH VRLA made in China Solar Battery Sealed lead-acid batteries, AGM Battery for UPS, Home Solar System
Product Parameters

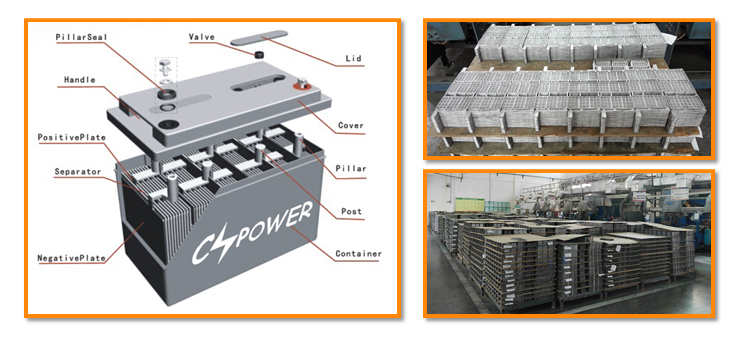

1. CSPOWER Deep Cycle storage battery structure
2. CSPOWER CS12-150 VRLA Deep Cycle AGM Battery Specificaiton
CS12-70 | |||
Nominal Voltage | 12V (6 cells per unit) | ||
Design Floating Life @ 25℃ | 10 Years | ||
Nominal Capacity @ 25℃ | 10 hour rate @15.0A,10.8V | 70Ah | |
Capacity @ 25℃ | 20 hour rate (8.03A, 10.8V) | 77.8Ah | |
5 hour rate (27.4A, 10.5V) | 64Ah | ||
1 hour rate (87.4A,9.6V) | 46.6Ah | ||
Internal Resistance | Full Charged Battery @ 25℃ | ≤7.0mΩ | |
Ambient Temperature | Discharge | -15℃~45℃ | |
Charge | -15℃~45℃ | ||
Storage | -15℃~45℃ | ||
Max.Discharge Current | @ 25℃ 900A(5s) | ||
Capacity affected by Temperature (10 hour ) | 40℃ | 105% | |
25℃ | 100% | ||
0℃ | 85% | ||
-15℃ | 65% | ||
Self-Discharge@25℃per Month | 3% | ||
Charge (Constant Voltage) @ 25℃ | Standby Use | Initial Charging Current Less than 17.5A Voltage 13.6-13.8V | |
Cycle Use | Initial Charging Current Less than 17.5A Voltage 14.4-14.9V | ||
Dimension (mm*mm*mm) | Length 484±1 * Width 171±1 * Height 241±1 (Total Height 241±1) | ||
Weight (kg) | 43.5±3% | ||
Product's Details
CSPOWER Deep cycle series batteries are designed to have a large amount of stored current discharged between charging sessions, with very heavy non-porous battery plates to withstand repeated major discharging and charging cycle (deep cycle). The CSPOWER deep cycle battery uses a different chemistry for the plates active paste material, and a slightly stronger electrolyte than normal battery electrolyte, thus the CS range features 30% higher cyclic life with 10 years of float life when compared to the standard Duration range.
Features and Advantages of VRLA AGM Battery
30% more cyclic life through innovation at the PAM additives
The long life expectancy of 10 years in floating condition
Thick flat plate with high Tin low Calcium alloy
Wide operating temperature range from -20 °C to 50°C
2%Low self-discharge rate
Very good deep cycle performance: up to 500 cycles @80% DOD
Excellent deep discharge recovery capability

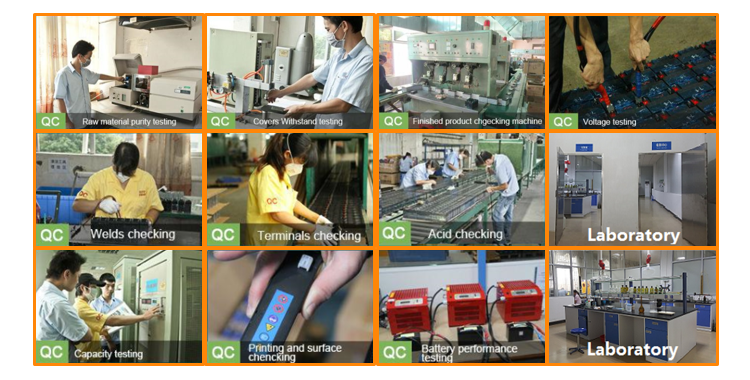

QC and Certification
Made in China Solar Battery,
Seiko Manufacturing, Safe and Reliable
Energy-saving and Environmental Protection, High-cost Performance
Always Adhering to the Business Philosophy of Honesty, Professional Production of High-quality Products
Fast Delivery, Complete Specifications.
