- Certification:ce
- Place of Origin:CN;GUA
- Maintenance Type:Free
- Certification:UL
- Usage:ups, solar, inverter, telecom
- Brand Name:CSPOWER
- Model Number:CL2-1200
- Weight:68.5kg
- Sealed Type:Sealed

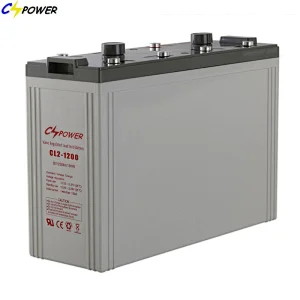

Top Grade Battery Solar 2V 1200ah Lead Acid Gel Battery AGM
Main Featurers
1. 3 years warranty at 35°C average
2. Able to operate at 60°C
3. Cycle usage: 50% DOD, 1200cycles, 30% DOD 2200cycles.
4. Design Floating Life 25°C: 10 ~ 12 years
5. Self-discharge is 2% ~ 3% per month.
CL2-1200 | |||
Nominal Voltage | 2V(1 cell per unit) | ||
Design Floating Life @ 25℃ | 15 Years | ||
Nominal Capacity @ 25℃ | 10 hour rate @20.0A,1.8V | 1200Ah | |
Capacity @ 25℃ | 20hour rate (10.6A,1.8V ) | 1272Ah | |
5 hour rate (35A,1.75V ) | 1060Ah | ||
1 hour rate (121A,1.6V ) | 726Ah | ||
Internal Resistance | Full Charged Battery @ 25℃ | ≤0.18mΩ | |
Ambient Temperature | Discharge | -15℃~45℃ | |
Charge | -15℃~45℃ | ||
Storage | -15℃~45℃ | ||
Max.Discharge Current | @ 25℃ 1600A(5s) | ||
Capacity affected by Temperature (10 hour ) | 40℃ | 105% | |
25℃ | 100% | ||
0℃ | 85% | ||
-15℃ | 65% | ||
Self-Discharge @25℃per Month | 3% | ||
Charge (Constant Voltage) @ 25℃ | Standby Use | Initial Charging Current Less than 180A Voltage 2.23-2.27V | |
Cycle Use | Initial Charging Current Less than 180A Voltage 2.33-2.37V | ||
Dimension (mm*mm*mm) | Length 472±1 * Width 172±1 * Height 338±1 (Total Height 355±1) | ||
Weight (kg) | 13±3% | ||
the plates active paste material, and a slightly stronger electrolyte than normal battery electrolyte, thus the CL range features 30% higher cyclic life with 10-15 years of float life when compared to the standard Duration range.
Features and Advantages of Deep cycle agm lead acid gel battery
1. 30% more cyclic life through innovation at the PAM additives
2. Long life expectancy of 10-15 years in floating condition
3. Thick flat plate with high Tin low Calcium alloy
4. Excellent deep discharge recovery capability
5. Deep cycle performance: up to 2000 cycles @30% DOD
