- Place of Origin:CN;GUA
- Voltage:2v
- Sealed Type:Sealed
- Maintenance Type:Free
- Usage:ups, solar, inverter, telecom
- Brand Name:CSPOWER
- Model Number:CG2-1000 gel battery
- Size:475*175*28*365mm
- Weight:62.5kgs gel battery
- Nominal Capacity:1000Ah

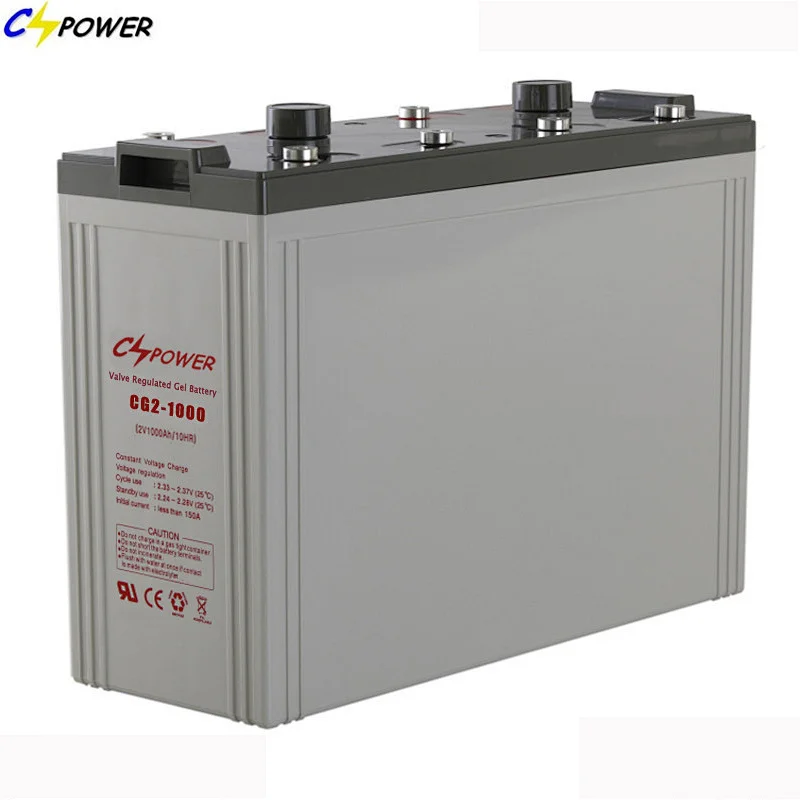

China Manufacturer Maintenance Free Bateria 2V 1000ah Deep Cycle Gel Solar Battery Rechargeable Deep Cycle Bateria 2V 1000ah Solar Gel Battery
1. 3 years warranty at 35°C average
2. Able to operate at 60°C
3. Cycle usage: 50% DOD, 1200cycles, 30% DOD 2200cycles.
4. Design Floating Life 25°C: 10 ~ 15 years
5. Self-discharge is 2% ~ 3% per month.
| CG2-1000 | |||
| Nominal Voltage | 2V(Single Cell) | ||
| Design Floating Life @ 25℃ | 20 Years | ||
| Nominal Capacity @ 25℃ | 10 hour rate @ 100.0A,1.8V | 1000Ah | |
| Capacity @ 25℃ | 20hour rate (53A,1.8V ) | 1060Ah | |
| 5 hour rate (177A,1.75V ) | 885Ah | ||
| 1 hour rate (605A,1.6V ) | 605Ah | ||
| Internal Resistance | Full Charged Battery @ 25℃ | ≤0.19mΩ | |
| Ambient Temperature | Discharge | -20℃~60℃ | |
| Charge | -10℃~60℃ | ||
| Storage | -20℃~60℃ | ||
| Max.Discharge Current | @ 25℃ 2000A(5s) | ||
| Capacity affected by Temperature (10 hour ) | 40℃ | 102% | |
| 25℃ | 100% | ||
| 0℃ | 90% | ||
| -15℃ | 70% | ||
| Self-Discharge @ 25℃per Month | 3% | ||
| Charge (Constant Voltage) @ 25℃ | Standby Use | Initial Charging Current Less than 150A Voltage 2.23-2.27V | |
| Cycle Use | Initial Charging Current Less than 150A Voltage 2.33-2.37V | ||
| Dimension (mm*mm*mm) | Length 475±1 * Width 175±1 * Height 328±1 (Total Height 365±1) | ||
| Weight (kg) | 62.5±3% | ||
CSPOWER CG series batteries are designed to have a large amount of stored current discharged between charging sessions, with very heavy non-porous battery plates to withstand repeated major discharging and charging cycle (deep cycle). The CSPOWER deep cycle AGM battery uses a different chemistry for
the plates active paste material, and a slightly stronger electrolyte than normal battery electrolyte, thus the CL range features 30% higher cyclic life with 10-15 years of float life when compared to the standard Duration range.
Features and Advantages of Deep Cycle Gel Solar Battery
1. 30% more cyclic life through innovation at the PAM additives
2. Long life expectancy of 10-15 years in floating condition
3. Thick flat plate with high Tin low Calcium alloy
4. Excellent deep discharge recovery capability
5. Deep cycle performance: up to 2000 cycles @30% DOD
CSPOWER BATTERY TECH CO.,LTD is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Q: Can you print my logo on the battery cover?
A: Yes, OEM is available,we can print your logo on the battery case freely. Welcome to send us your logo design and dicuss with us about the details.
Q: How long is your delivery time?
A: Usually it takes about 10-20 days for production varies with products. Urgent delivery it in 5days
Q: What is your warranty policy?
A: We provide 1 ~ 5 years different warranty.
Q: Why Choose CSPOWER?
A: 1) Nearly 13 years leading manufacturer,all production lines in our factory are automatic and imported from Germany.
2) 20000KWH production capacity to guarantee the best deliver time
3) The good construction warranty - 1-5 years free replacement no need return.
4) Comprehensive certificates approval: CE / ISO / IEC
5) The reasonable and most competitive price without sacrifice of quality.
6) A professional experienced team to provide you high-quality service before and after sale.
