- Place of Origin:CN;GUA
- Sealed Type:Sealed
- Maintenance Type:Free
- Usage:ups, solar, inverter, telecom
- Brand Name:CSPOWER
- Model Number:CG12-150 gel battery
- Weight:44kgs gel battery
--- For solar power station/UPS/Telecom
2. Able to operate at 40°C
3. Cycle usage: 50% DOD, 1100cycles, 30% DOD 2200cycles.
4. Design Floating Life 25°C: 15 years
5. Self-discharge is 2% ~ 3% per month.
Nominal Voltage | 12V (6 cells per unit) | ||
Design Floating Life @ 25℃ | 15 Years | ||
Nominal Capacity @ 25℃ | 10 hour rate @15.0A,10.8V | 150Ah | |
Capacity @ 25℃ | 20 hour rate (8.03A, 10.8V) | 160.6Ah | |
5 hour rate (27.4A, 10.5V) | 137Ah | ||
1 hour rate (87.4A,9.6V) | 87.4Ah | ||
Internal Resistance | Full Charged Battery @ 25℃ | ≤3.5mΩ | |
Ambient Temperature | Discharge | -20℃~60℃ | |
Charge | -10℃~60℃ | ||
Storage | -20℃~60℃ | ||
Max.Discharge Current | @ 25℃ 900A(5s) | ||
Capacity affected by Temperature (10 hour ) | 40℃ | 105% | |
25℃ | 100% | ||
0℃ | 85% | ||
-15℃ | 65% | ||
Self-Discharge @25℃per Month | 3% | ||
Charge (Constant Voltage) @ 25℃ | Standby Use | Initial Charging Current Less than 37.5A Voltage 13.6-13.8V | |
Cycle Use | Initial Charging Current Less than 37.5A Voltage 14.4-14.9V | ||
Dimension (mm*mm*mm) | Length 484±1 * Width 171±1 * Height 241±1 (Total Height 241±1) | ||
Weight (kg) | 44.0±3% | ||

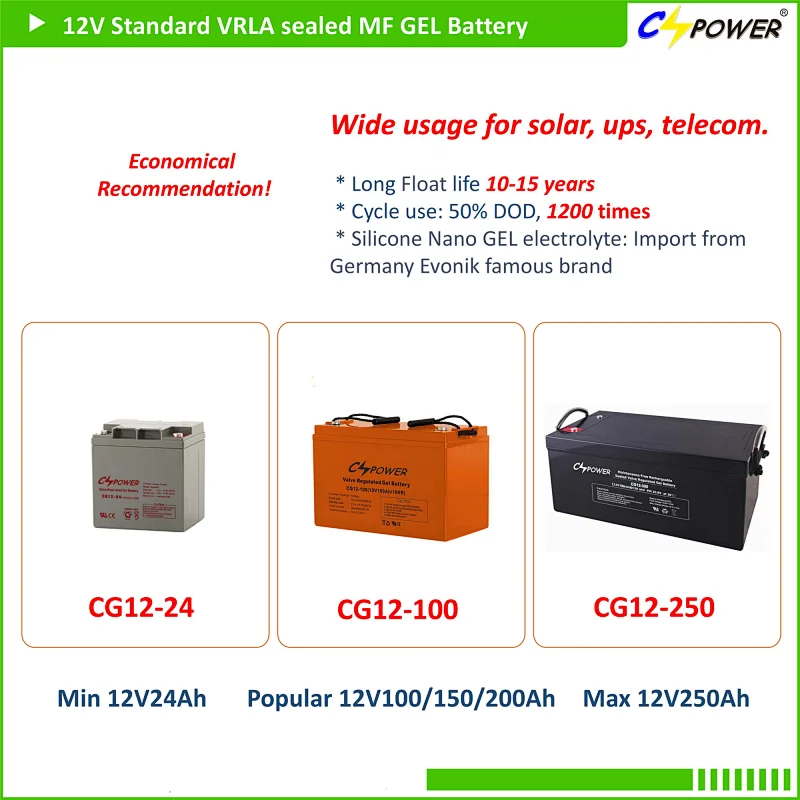

CSPOWER CG series pure GEL battery is with 12-15 years floating design life, it is ideal for standby or frequent cyclic discharge applications under extreme environments. By adopting thicker grids, high purity 99.997% lead and patented Silicon Gel electrolyte, CG series offers excellent recovery performance after deep discharge under frequent cyclic discharge use, and can deliver 1200 cycles at 50% DOD even work in hot or cold area. Suitable for Solar, CATV, marine, RV and deep discharge UPS, communication, and telecommunication , etc.
Warranted Solar Powerwall Specs Modes
Features and Advantages of GEL Battery
* 30% more cyclic life through innovation at the PAM additives than AGM battery
* Long life expectancy of 15 years in floating condition
* Adopts quality silicon nano gel electrolyte
* Excellent deep discharge recovery capability
* Deep cycle performance: up to 1200 cycles @50% DOD
CSPOWER BATTERY TECH CO.,LTD is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Q: Can you print my logo on the battery cover?
A: Yes, OEM is available,we can print your logo on the battery case freely. Welcome to send us your logo design and dicuss with us about the details.
Q: How long is your delivery time?
A: Usually it takes about 10-20 days for production varies with products. Urgent delivery it in 5days
Q: What is your warranty policy?
A: We provide 1 ~ 5 years different warranty.
Q: Why Choose CSPOWER?
A: 1) Nearly 13 years leading manufacturer,all production lines in our factory are automatic and imported from Germany.
2) 20000KWH production capacity to guarantee the best deliver time
3) The good construction warranty - 1-5 years free replacement no need return.
4) Comprehensive certificates approval: CE / ISO / IEC
5) The reasonable and most competitive price without sacrifice of quality.
6) A professional experienced team to provide you high-quality service before and after sale.
