solar charger for 12v deep cycle battery Cycle usage: 50% DOD for 1500 cycles, 30% DOD for 2400 cycles. Mechanism of solar batteries solar charger for 12v deep cycle battery 25°C Floating Life: 15 years. The rate of self-discharge is 2% to 3% every month.
solar charger for 12v deep cycle battery
- Place of Origin:CN;GUA
- Sealed Type:Sealed
- Maintenance Type:Free
- Usage:Folklift, Golf buggies,ups battery, solar battery
- Brand Name:CSPOWER
- Model Number:HTL12-24 deep cycle battery
- Weight:8.6kgs deep cycle battery
Pls click below link for CSPOWER's best selling models:

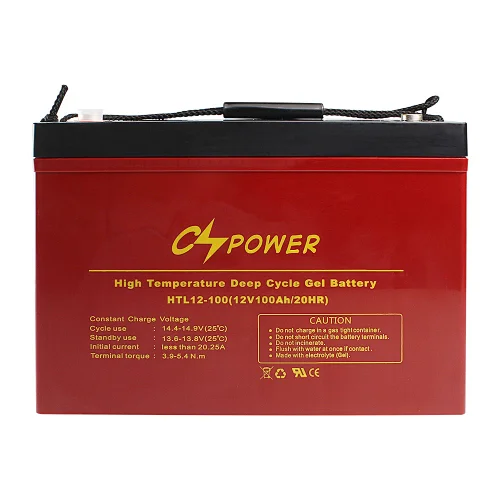

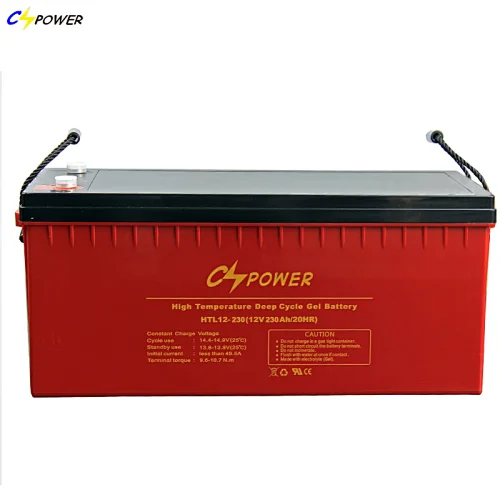

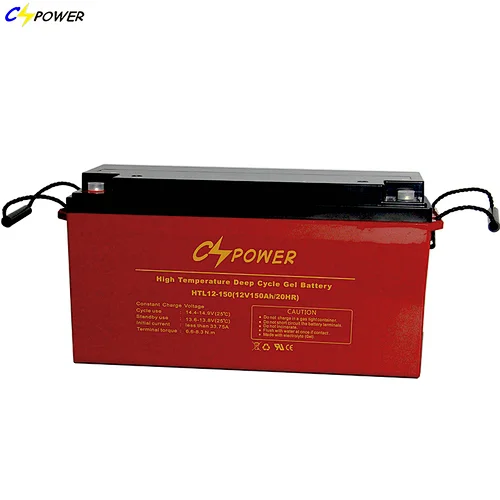

HTL12-100 HTL12-150 HTL12-200 OPzV2-1000
| HTL12-24 | |||
| Nominal Voltage | 12V (6 cells per unit) | ||
| Design Floating Life @ 25℃ | 15 Years | ||
| Nominal Capacity @ 25℃ | 20 hour rate @ 21.0A, 5.4V | 24Ah | |
| Capacity @ 25℃ | 10 hour rate (37.8A, 5.4V) | 22Ah | |
| 5 hour rate (66.8A, 5.25V) | 19Ah | ||
| 1 hour rate (233.3A, 4.8V) | 14.7Ah | ||
| Internal Resistance | Full Charged Battery @ 25℃ | ≤12.0mΩ | |
| Ambient Temperature | Discharge | -25℃~60℃ | |
| Charge | -25℃~60℃ | ||
| Storage | -25℃~60℃ | ||
| Max.Discharge Current | @ 25℃ 144A(5s) | ||
| Capacity affected by Temperature (10 hour ) | 40℃ | 108% | |
| 25℃ | 100% | ||
| 0℃ | 90% | ||
| -15℃ | 70% | ||
| Self-Discharge @ 25℃per Month | 3% | ||
| Charge (Constant Voltage) @ 25℃ | Standby Use | Initial Charging Current Less than 5.4A Voltage 13.6 - 13.8V | |
| Cycle Use | Initial Charging Current Less than 5.4A Voltage 14.6 - 14.9V | ||
| Dimension (mm*mm*mm) | Length 166±1 * Width 175±1 * Height 126±1 (Total Height 126±1) | ||
| Weight (kg) | 8.4±3% | ||
Inside, the HTL deep cycle gel solar battery uses a newly created nano gel electrolyte with super-C additive as well as heavy-duty plates. It does have a longer service life, even if used in deep cycle discharge, and can provide optimum and reliable service in challenging conditions such as high temperatures and frequent power outages, making it ideal for tropical applications such as Telecom BTS stations and off-grid PV systems.
Rechargeable Bateria Technical Specs Powerwall Generator
Features and Advantages of deep cycle gel battery
1. Operating temperature range of -20°C to 60°C
2. Integrated design for optimal uniformity and durability
3. Longer lifespan and greater stability in high-temperature environments (no air-con needed)
4. Super-C additives: 1600 cycles @ 50% DOD, deep discharge recovery capabilities
CSPOWER BATTERY TECH CO.,LTD is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Q: Can you print my logo on the battery cover?
A: Yes, OEM is available,we can print your logo on the battery case freely. Welcome to send us your logo design and dicuss with us about the details.
Q: How long is your delivery time?
A: Usually it takes about 10-20 days for production varies with products. Urgent delivery it in 5days
Q: What is your warranty policy?
A: We provide 1 ~ 5 years different warranty.
Q: Why Choose CSPOWER?

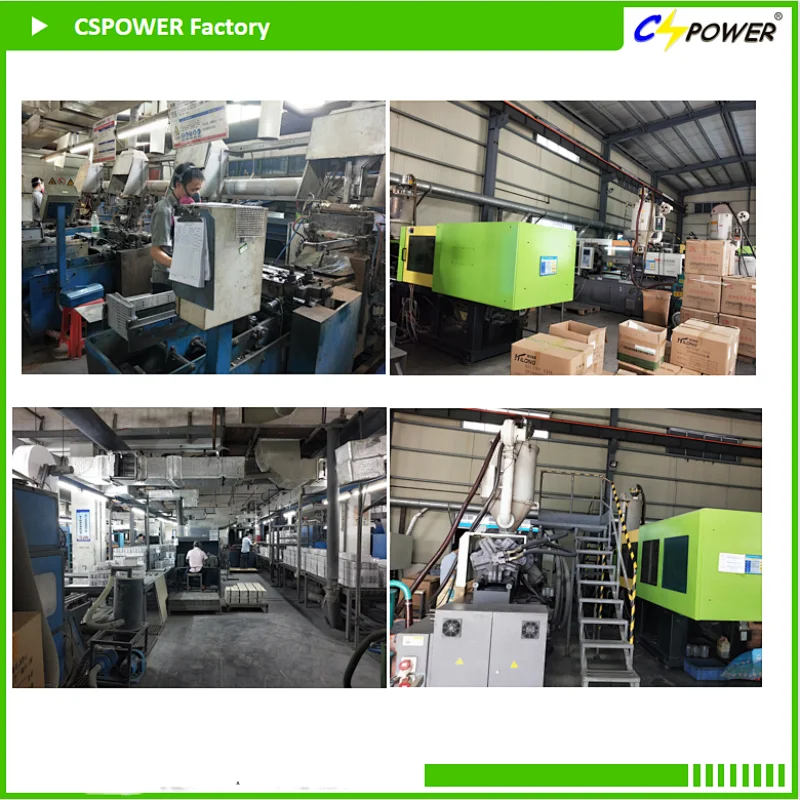

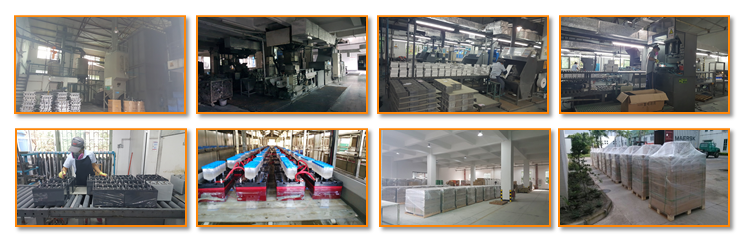

A: 1) Nearly 13 years leading manufacturer,all production lines in our factory are automatic and imported from Germany.
2) 20000KWH production capacity to guarantee the best deliver time
3) The good construction warranty - 1-5 years free replacement no need return.
4) Comprehensive certificates approval: CE / ISO / IEC
5) The reasonable and most competitive price without sacrifice of quality.
6) A professional experienced team to provide you high-quality service before and after sale.
