Model NO.
CG12-35
Delivery:
EXW,FCA,FOB,CIF,CFR
Minimum order quantity:
50 pieces
Supply Ability:
100000 pieces / Month
Country of Origin:
Shenzhen/Guangzhou/Foshan
Quantity:
  • Place of Origin:CN;GUA
  • Sealed Type:Sealed
  • Maintenance Type:Free
  • Usage:UPS systems, Inverter;Solar&Wind; Emergency Power Systems;Telecom
  • Brand Name:CSPOWER/ OEM Brand
  • Model Number:CG12-35
  • Weight:10.5kg/PC

DOD Solar Deep Gel Powerwall Specs



DOD Solar Deep Gel Powerwall Specs

12V CG series.PNG

DOD Solar Deep Gel Powerwall Specs

  • Model: CG12-35
  • Dimension: L 196* W 130* H 155* TH 167 (MM)
  • Weight: 10.5kg/PC
  • Working Temperature: -20℃~60℃
  • Designed floating service life: 12 years @ 25 °C/77 °F.
  • Cycle Life: 1200 cycles @ 50%DOD
  • Warranty: 24months free replacement warranty
  • Production time: 10-25 days as per quantity
  • Package: 1PC/Carton;120pcs/Pallet;2300pcs/20'GP Container

More Capacity Details of CG12 series, kindly Click here >>

DOD Solar Deep Gel Powerwall Specs

CG12-35

Nominal Voltage

12V (6 cells per unit)

Design Floating Life @ 25℃

12 Years

Nominal Capacity @ 25℃

10 hour rate @3.50A,10.8V

35Ah

Capacity @ 25℃

20 hour rate (1.9A, 10.8V)

38.0Ah

5 hour rate (6.4A, 10.5V)

32.0Ah

1 hour rate (23.3A,9.6V)

23.3Ah

Internal Resistance

Full Charged Battery@ 25℃

≤10.0mΩ

Ambient Temperature

Discharge

-20℃~60℃

Charge

-10℃~60℃

Storage

-20℃~60℃

Max.Discharge Current

@ 25℃ 210A(5s)

Capacity affected by Temperature (10 hour )

40℃

105%

25℃

100%

0℃

85%

-15℃

65%

Self-Discharge @25℃per Month

3%

Charge (Constant Voltage) @ 25℃

Standby Use

Initial Charging Current Less than 8.75A Voltage 13.6-13.8V

Cycle Use

Initial Charging Current Less than 8.75A Voltage 14.4-14.9V

Dimension (mm*mm*mm)

Length 196±1 * Width 130±1 * Height 155±1 (Total Height 167±1)

Weight (kg)

10.5±3%

More Capacity Details of CG12 series, kindly Click here >>

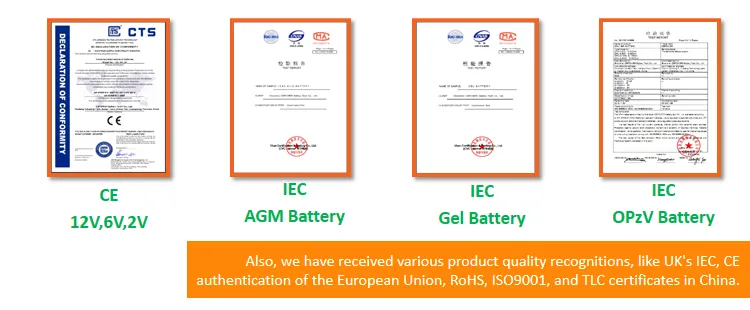

QC and Certification

201 Solar battery Certification.PNG

35Ah Rechargeable Sealed Maintenence Free Gel Mobility Scooter Battery meet:

ISO9001, ISO14001, OHSAS18001, IEC61427, CE-EMC; CE-LVD and Solar Product Certification, etc.

Product Application

301 Solar battery application.PNG

Applications --35Ah Rechargeable Sealed Maintenence Free Gel Mobility Scooter Battery

Solar & Wind power systems, Fire & security systems, Uninterruptible power supplies; Golf cart, Electric vehicle; Electric powered bicycle and wheelchairs; Marine equipment; Communication equipment; Power tools; Telecommunication systems; Urgent light systems; Measurement systems, et

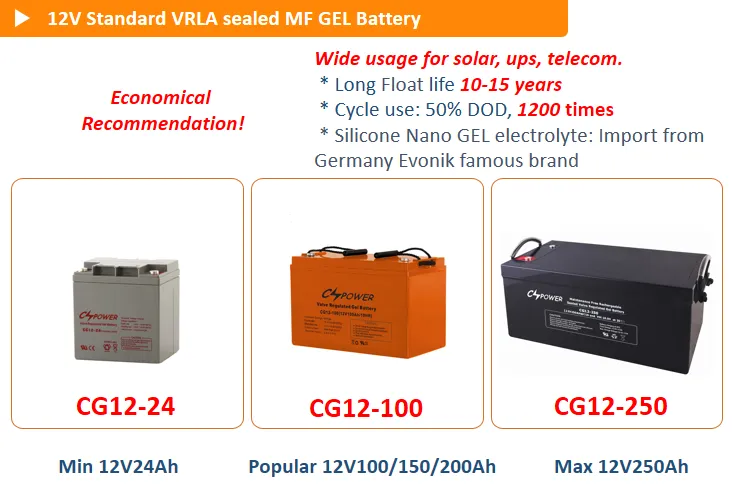

Main Product

500 Solar battery prouduct

CSPOWER Batteries Tags:

  • lead acid battery, AGM battery, GEL battery, OPzV battery,Opzs battery,tubular gel battery,
    valve regulated lead acid battery,VRLA battery, SLA battery,energy sotrage battery
  • long life gel battery, deep cycle deep acid battery, backup energy battery, deep cycle solar
    battery,Maintenance free battery,sealed lead acid battery,rechargeable lead acid
    battery,high rate battery
  • 2V battery,battery pack ,12V battery, 48V battery,6V solar ups battery,battery banks,battery for 48v system
  • solar panel battery,solar power storage battery,solar battery,home use storage
    battery,marine battery,telecom battery, UPS battery,industrial battery,automotive battery,
    spiral lead acid battery,starting lead acid battery, forklift battery,emergency lighting

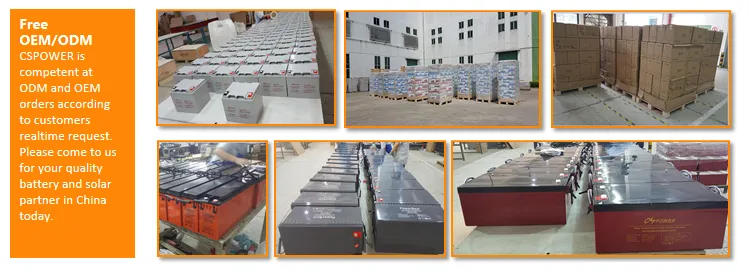

About us

402 Solar battery factory -1.PNG

CSPOWER BATTERY TECH CO.,LTD is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
