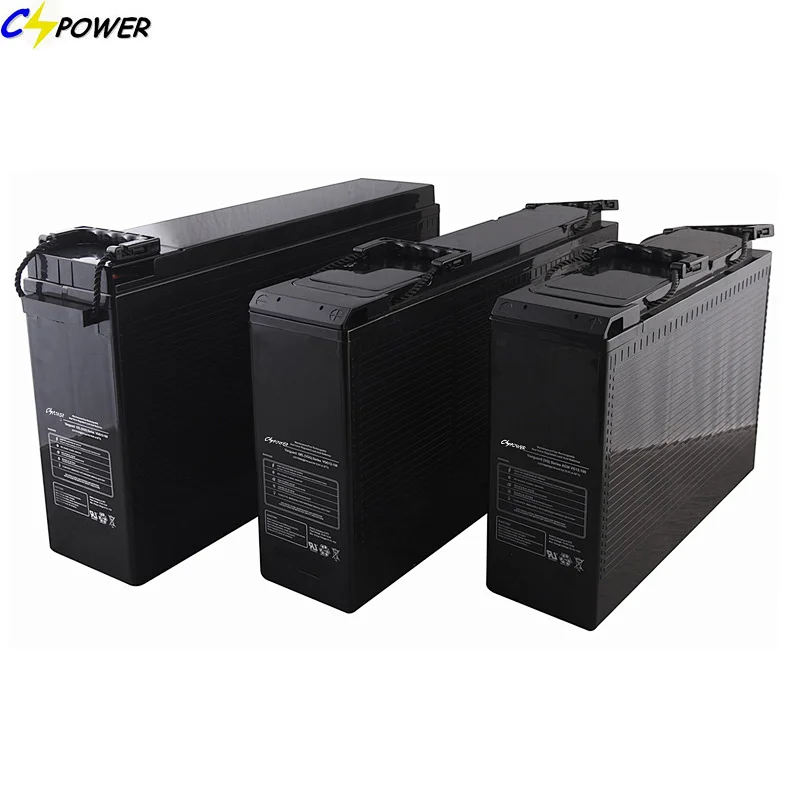

China Front Terminal GEL Battery 12V 160ah
China Front Terminal GEL Battery 12V 160ah
China Front Terminal GEL Battery 12V 160ah
China Front Terminal GEL Battery 12V 160ah
China Front Terminal GEL Battery 12V 160ah
China Front Terminal GEL Battery 12V 160ah
China Front Terminal GEL Battery 12V 160ah
China Front Terminal GEL Battery 12V 160ah
China Front Terminal GEL Battery 12V 160ah
China Front Terminal GEL Battery 12V 160ah
China Front Terminal GEL Battery 12V 160ah
China Front Terminal GEL Battery 12V 160ah
China Front Terminal GEL Battery 12V 160ah
China Front Terminal GEL Battery 12V 160ah
China Front Terminal GEL Battery 12V 160ah

China Front Terminal GEL Battery 12V 160ah

Model NO.
FL12-160
Delivery:
EXW,FCA,FOB,CIF,CFR
Minimum order quantity:
24 pieces
Supply Ability:
1000000 pieces / Month
Country of Origin:
Shenzhen/Guangzhou/Foshan etc.
Quantity:
  • Place of Origin:CN;GUA
  • Voltage:12v
  • Sealed Type:Sealed
  • Maintenance Type:Free
  • Usage:telecom system,Solar/ wind system, EPS/UPS system etc.
  • Brand Name:CSPOWER/OEM brand
  • Model Number:FL12-160
  • Size:551* 110* 288 * 288 (MM)
  • Weight:45kg
  • Nominal Capacity:160Ah

China Front Terminal GEL Battery 12V 160ah

Product Features

12V FL front terminal solar deep cycle gel battery.PNG

China Front Terminal GEL Battery 12V 160ah

  • Voltage: 12V
  • Capacity: 160Ah
  • Designed floating service life: 15 years @ 25 °C/77 °F.
  • Cycle Life: 1200 cycles @ 50%DOD
  • Warranty: 36months free replacement warranty
  • Delivery time: 15-30 days depends on quantity
  • Package: 1PC/Carton;32pcs/Pallet;550pcs/20'GP Container
Product Parameters

Front Terminal AGM Solar Gel Sealed VRLA Telecom Battery 12V 160Ah

FL12-160

Nominal Voltage

12V (6 cells per unit)

Design Floating Life @ 25℃

12 Years

Nominal Capacity @ 25℃

10 hour rate @16.0A,10.8V

160Ah

Capacity @ 25℃

20hour rate (8.48A,10.8V)

169.6Ah

5 hour rate (28.2A,10.5V)

141.0Ah

1 hour rate (102.1A,9.6V)

102.1Ah

Internal Resistance

Full Charged Battery @ 25℃

≤3.4mΩ

Ambient Temperature

Discharge

-20℃~60℃

Charge

-10℃~60℃

Storage

-20℃~45℃

Max.Discharge Current

@ 25℃ 960A(5s)

Capacity affected by Temperature (10 hour )

40℃

105%

25℃

100%

0℃

85%

-15℃

65%

Self-Discharge @25℃per Month

3%

Charge (Constant Voltage) @ 25℃

Standby Use

Initial Charging Current Less than 40.0A Voltage 13.6-13.8V

Cycle Use

Initial Charging Current Less than 40.0A Voltage 14.4-14.9V

Dimension (mm*mm*mm)

Length(mm) 551±1 Width(mm) 110±1 Height(mm) 288±1 Total Height(mm) 288±1

Weight (kg)

Weight(kg) 45.0±3%

More information for full FL series front terminal gel battery, please kindly click here >>

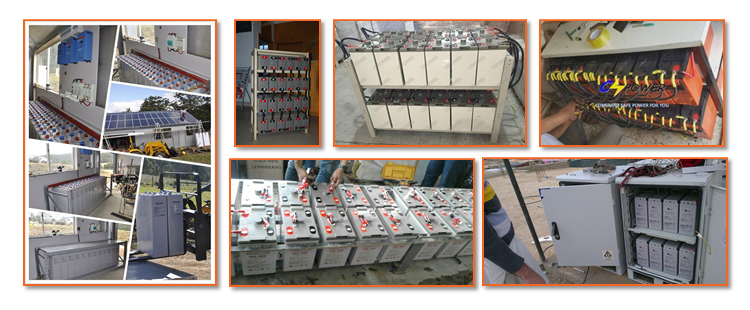

Application

300 Solar battery application.PNG

Applications for China Front Terminal GEL Battery 12V 160ah

  • Suitable for 19inch and 23inch power cabinet.
  • Used in telecom system including exchange board, microwave station, mobile base station, data center, radio and broadcast station.
  • Great for power supply system of private network or LAN.
  • Used as signal system battery and emergency lighting system battery.
  • Perfect for EPS and UPS system.
  • Solar and wind system

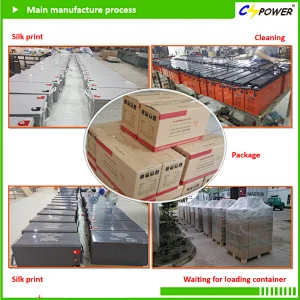

Production

000 Solar battery production.PNG

402 Solar battery factory -1.PNG

CSPOWER BATTERY TECH CO.,LTD is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.

Certifications

201 Solar battery Certification.PNG

All our energy storage batteries meet:
ISO9001, ISO14001, OHSAS18001, IEC61427, CE-EMC; CE-LVD and Solar Product Certification, etc.

Related Items

500 Solar battery prouduct.PNG

CSPOWER Batteries Tags:

  • lead acid battery, AGM battery, GEL battery, OPzV battery,Opzs battery,tubular gel battery,
    valve regulated lead acid battery,VRLA battery, SLA battery,energy sotrage battery
  • long life gel battery, deep cycle deep acid battery, backup energy battery, deep cycle solar
    battery,Maintenance free battery,sealed lead acid battery,rechargeable lead acid
    battery,high rate battery
  • 2V battery,battery pack ,12V battery, 48V battery,6V solar ups battery,battery banks,battery for 48v system
  • solar panel battery,solar power storage battery,solar battery,home use storage
    battery,marine battery,telecom battery, UPS battery,industrial battery,automotive battery,
    spiral lead acid battery,starting lead acid battery, forklift battery,emergency lighting
