Model NO.
OPzV2-300
Delivery:
EXW,FCA,FOB,CIF,CFR
Minimum order quantity:
50 pieces
Supply Ability:
100000 pieces / Month
Country of Origin:
Shenzhen port
Quantity:
  • Sealed Type:Sealed
  • Maintenance Type:Free
  • Usage:ups, solar, inverter, telecom
  • Brand Name:CSPOWER/OEM brand
  • Model Number:OPzV2-300
  • Weight:26.5kg
  • Place of Origin:CN;GUA

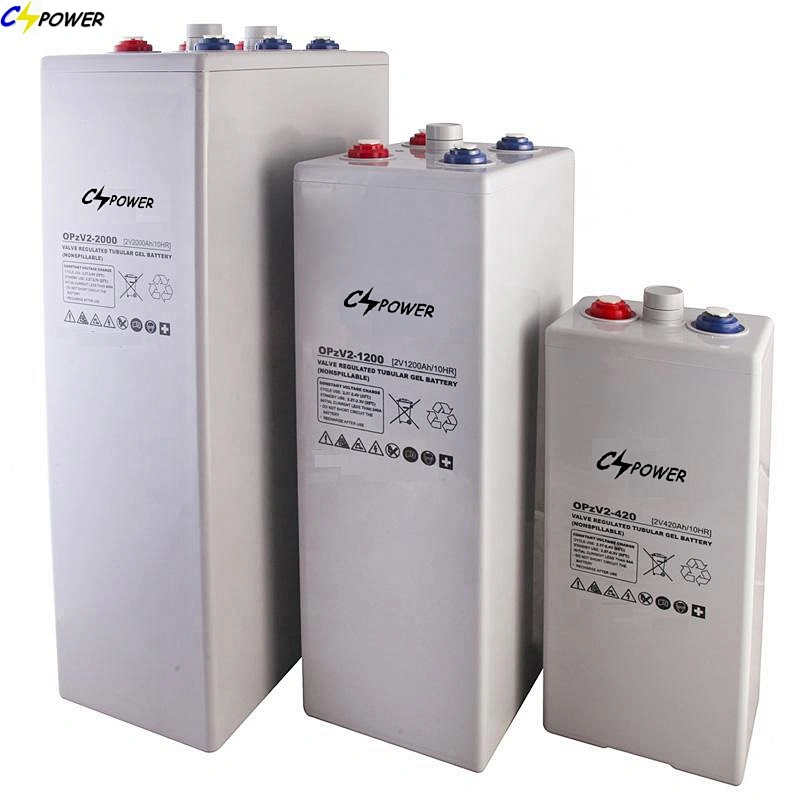

China Solar GEL OPZV Battery 300Ah with IEC certificate

Battery Features

By combining the newly developed tubular positive plates with fumed gelled electrolyte, CSPOWER created the innovative OPzV range of batteries. The range offers 20 years design life and super high deep cycling capabilities. This range is recommended for telecom outdoor applications, renewable energy systems and other harsh environment applications.

Features and Advantages for China Solar GEL OPZV Battery 300Ah with IEC certificate
1. Over 20 years design life at floating condition @ 25°C
2. Wide operating temperature range from -40°C to 60°C
3. Tubular positive plate with prolonged cycle life
4. Fumed Silica gel electrolyte
5. Lead Calcium die cast grid with improved corrosion resistance capability
6. Low self-discharge rate and long shelf life
7. Excellent deep discharge recovery capability

Product Parameters

1.CSPOEWR Tubular Plate OPzV Battery Structure

101 Solar battery structure.PNG

2. CSPOWER OpzV Battery Tubular Plate Battery 2V 300AH Specification

OPzV2-300

Nominal Voltage

2V(Single Cell)

Design Floating Life @ 25℃

25 Years

Nominal Capacity @ 25℃

10 hour rate @30.0A,1.8V

300Ah

Capacity @ 25℃

20hour rate (15.75A,1.8V )

315Ah

5 hour rate (51A,1.75V )

255Ah

1 hour rate (189.6A,1.6V )

189.6Ah

Internal Resistance

Full Charged Battery @ 25℃

≤0.55mΩ

Ambient Temperature

Discharge

-40℃~70℃

Charge

-0℃~50℃

Storage

-20℃~60℃

Max.Discharge Current

@ 25℃ 1350A(5s)

Capacity affected by Temperature (10 hour )

40℃

105%

25℃

100%

0℃

89%

-15℃

79%

Self-Discharge@25℃per Month

2%

Charge (Constant Voltage) @ 25℃

Standby Use

Initial Charging Current Less than 60.0A Voltage 2.25-2.3V

Cycle Use

Initial Charging Current Less than 60.0A Voltage 2.37-2.4V

Dimension (mm*mm*mm)

Length 145±1 * Width 206±1 * Height 375±1 (Total Height 390±1)

Weight (kg)

26.5±3%

More capacity details for OpzV 2v series, please kindly Clickhere

QC/ Certification

200 Solar battery qc.PNG

201 Solar battery Certification.PNG

All our energy storage batteries meet:

ISO9001, ISO14001, OHSAS18001, IEC61427, CE-EMC; CE-LVD and Solar Product Certification, etc.

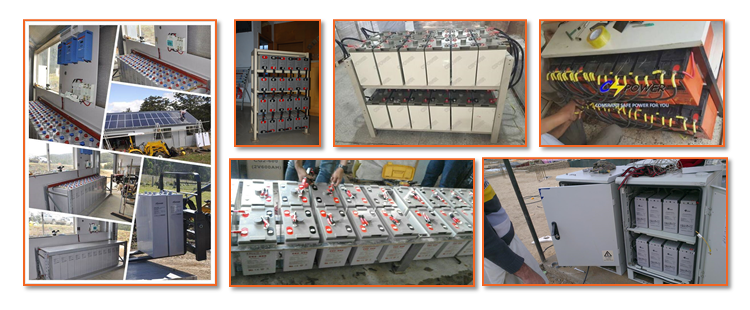

Application

300 Solar battery application.PNG

Applications for China Solar GEL OPZV Battery 300Ah with IEC certificate


Telecom, Electric Utilities, Control Equipments, Security Systems, Medical Equipments, UPS systems, Railroad Utilities, Photovoltaic Systems, Renewable Energy System and so on.

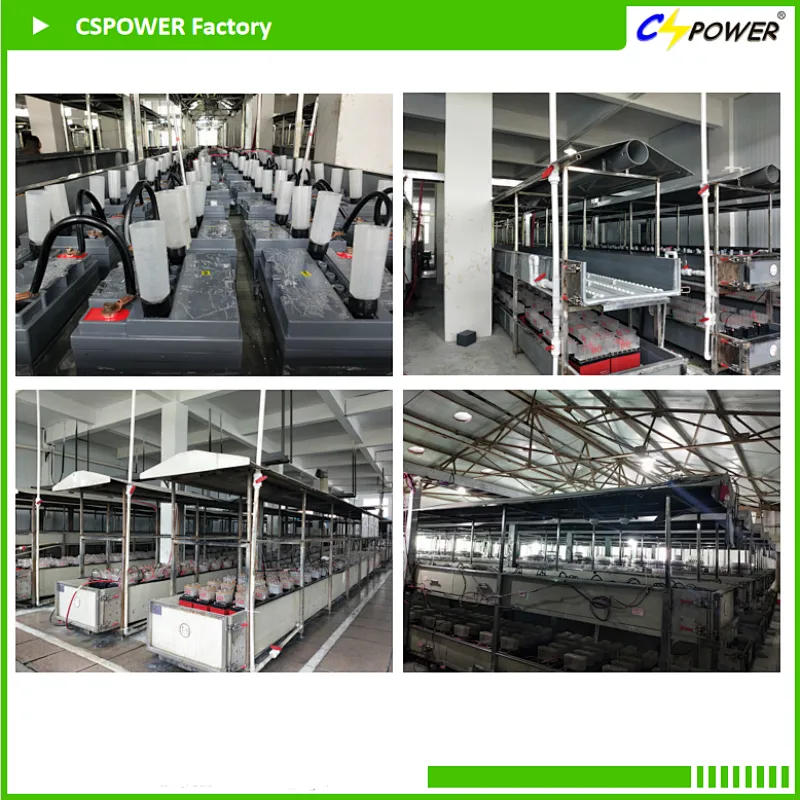

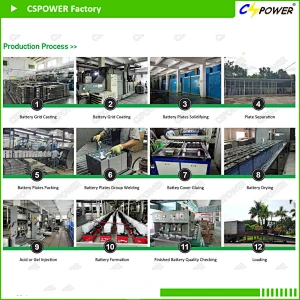

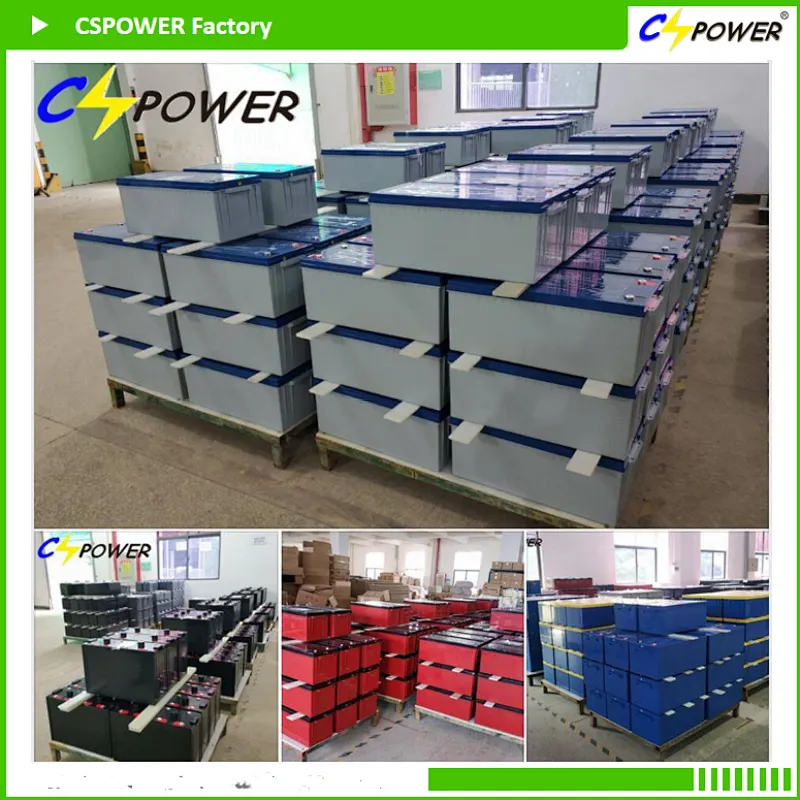

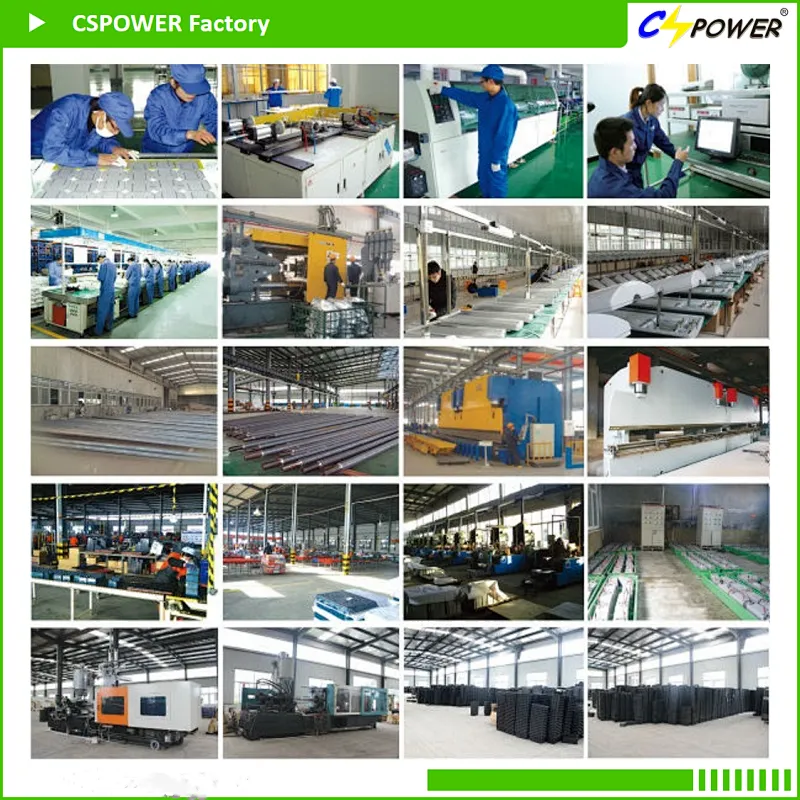

About us

401 Solar battery factory.PNG

CSPOWER BATTERY TECH CO.,LTD is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.

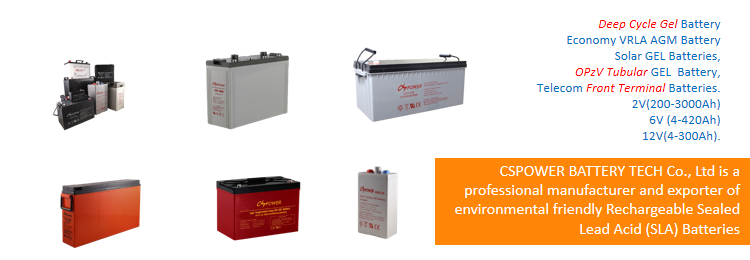

Main Product

500 Solar battery prouduct
