Model NO.
CS12-26
Delivery:
EXW,FOB,FCA,CIF,CFR
Minimum order quantity:
500 pieces
Supply Ability:
100000 pieces / Month
Country of Origin:
Shenzhen/Guangzhou/Foshan
Stock Time:
15-25 days after order confirmed Days
Quantity:
  • Place of Origin:CN;GUA
  • Weight:8.3kg/PC
  • Size:166 * 175 * 126*126 (mm)
  • Voltage:12v
  • Model Number:CS12-26
  • Brand Name:CSPOWER/ OEM Brand
  • Maintenance Type:Free
  • Nominal Capacity:26Ah
  • Sealed Type:Sealed
  • Usage:UPS systems, Inverter;Solar&Wind; Emergency Power Systems;Telecom

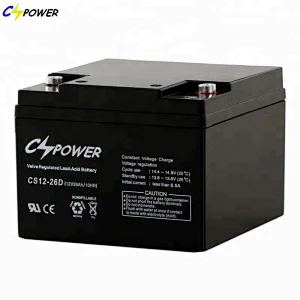

Competitive Price 12V 26ah AGM UPS Acid Storage Battery

12V CS series AGM solar deep cycle battery

CSPOWER Deep cycle series batteries are designed to have a large amount of stored current discharged between charging sessions, with very heavy non-porous battery plates to withstand repeated major discharging and charging cycle (deep cycle). The CSPOWER deep cycle battery uses a different chemistry for the plates active paste material, and a slightly stronger electrolyte than normal battery electrolyte, thus the CS range features 30% higher cyclic life with 10 years of float life when compared to the standard Duration range.

Features and Advantages of VRLA AGM Battery

  • 30% more cyclic life through innovation at the PAM additives
  • Long life expectancy of 10 years in floating condition
  • Thick flat plate with high Tin low Calcium alloy
  • Wide operating temperature range from -20 °C to 50°C
  • 2%Low self-discharge rate
  • Very good deep cycle performance: up to 500 cycles @80% DOD
  • Excellent deep discharge recovery capability
Product Parameters

12V 26AH battery, cpsower vrla agm seal lead acid battery specificaiton

CS12-26

Nominal Voltage

12V (6 cells per unit)

Design Floating Life @ 25℃

8 Years

Nominal Capacity @ 25℃

10 hour rate @2.60A,10.8V

26Ah

Capacity @ 25℃

20 hour rate (1.44A, 10.8V)

28.8Ah

5 hour rate (4.8A, 10.5V)

24.0Ah

1 hour rate (14.3A,9.6V)

14.3Ah

Internal Resistance

Full Charged Battery @ 25℃

≤13.0mΩ

Ambient Temperature

Discharge

-15℃~45℃

Charge

-15℃~45℃

Storage

-15℃~45℃

Max.Discharge Current

@ 25℃ 156A(5s)

Capacity affected by Temperature (10 hour )

40℃

105%

25℃

100%

0℃

85%

-15℃

65%

Self-Discharge@25℃per Month

3%

Charge (Constant Voltage) @ 25℃

Standby Use

Initial Charging Current Less than 6.5A Voltage 13.6-13.8V

Cycle Use

Initial Charging Current Less than 6.5A Voltage 14.4-14.9V

Dimension (mm*mm*mm)

Length 165±1 * Width 176±1 * Height 125±1 (Total Height 125±1)

Weight (kg)

8.3±3% Product Application

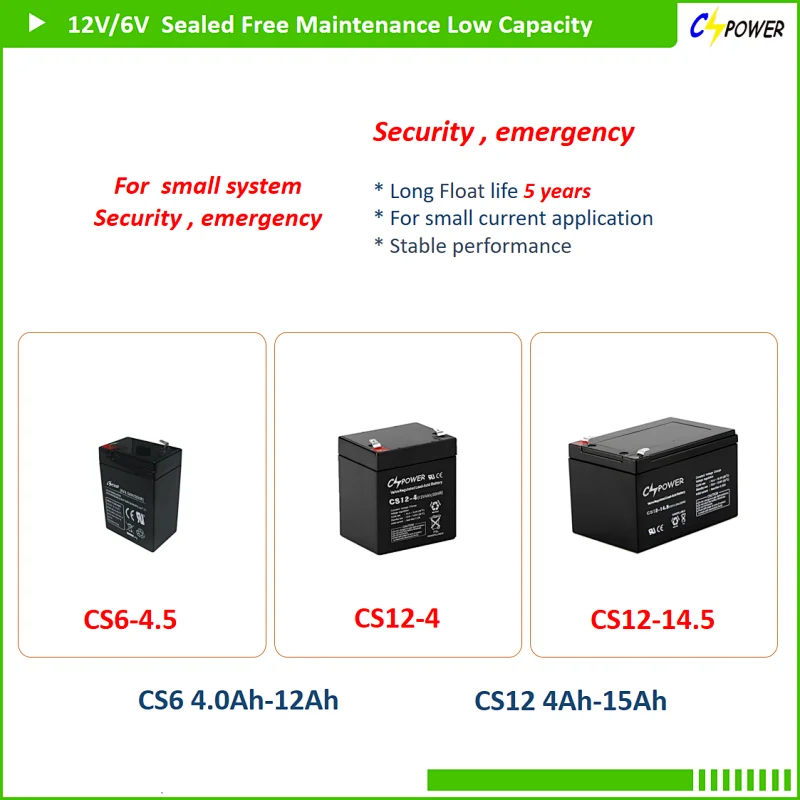

More capacity of CS series Vrla agm battery, please kindly Clickhere

Product Application
300 Solar battery application.PNG

Applications -- 12V VRLA AGM Batteries


UPS systems, Inverter systems, Solar and Wind, Emergency systems, Security systems,Control System, Medical Equipments, Electric Powered Vehicles, Golf Cars and Buggies, Wheel Chairs, Power Tools, Electric Powered Toys, and so on.

QC&Certification

200 Solar battery qc.PNG

201 Solar battery Certification.PNG

All our energy storage batteries meet ISO9001, ISO14001, OHSAS18001, IEC61427, CE-EMC; CE-LVD and Solar Product Certification, etc.

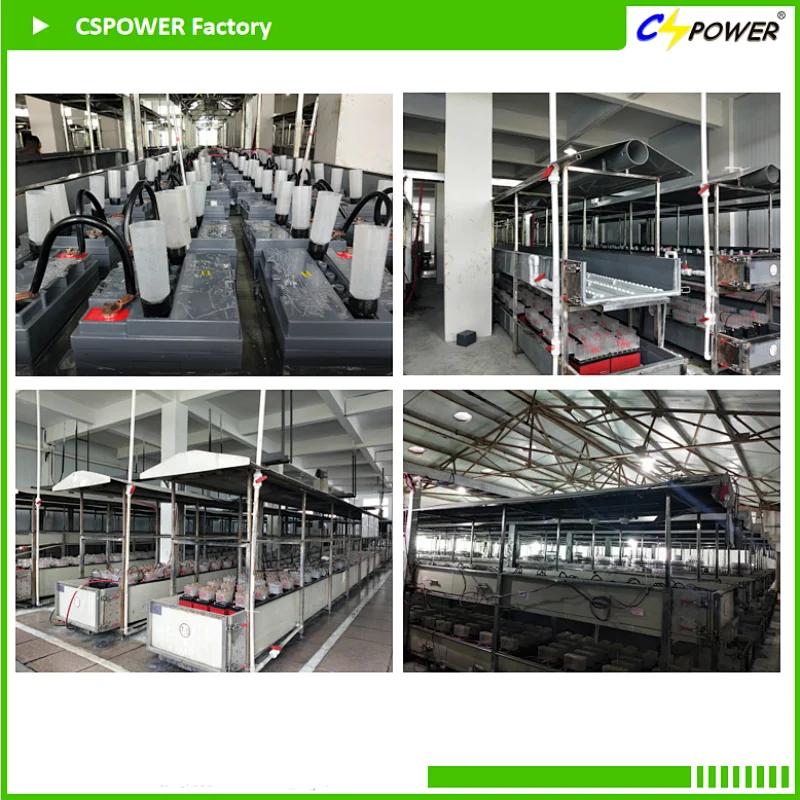

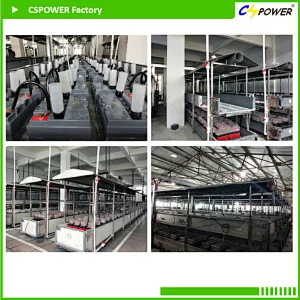

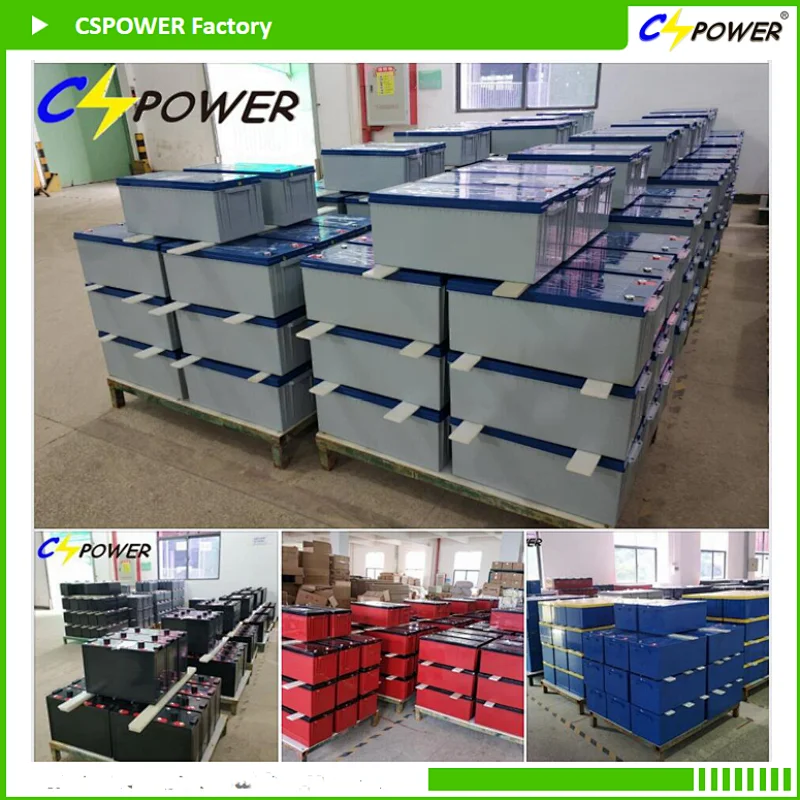

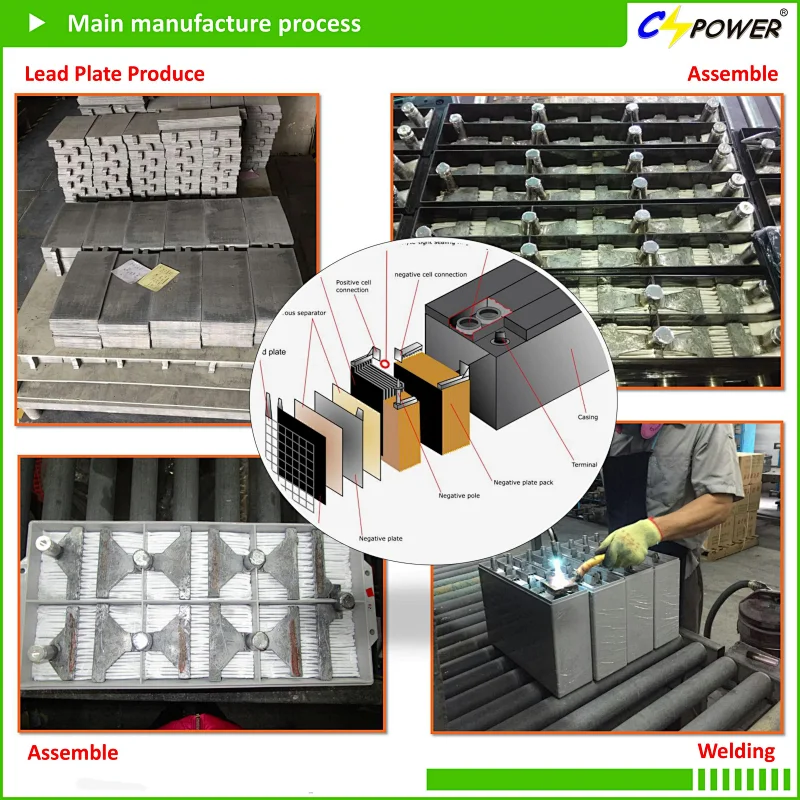

Factory Show

402 Solar battery factory.PNG

CSPOWER BATTERY TECH CO.,LTD is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
