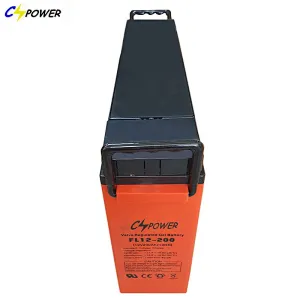

CSPOWER 12v 175ah for Solar Wind Power Backup deep cycle Slim Gel Battery
CSPOWER 12v 175ah for Solar Wind Power Backup deep cycle Slim Gel Battery
CSPOWER 12v 175ah for Solar Wind Power Backup deep cycle Slim Gel Battery
CSPOWER 12v 175ah for Solar Wind Power Backup deep cycle Slim Gel Battery
CSPOWER 12v 175ah for Solar Wind Power Backup deep cycle Slim Gel Battery
CSPOWER 12v 175ah for Solar Wind Power Backup deep cycle Slim Gel Battery
CSPOWER 12v 175ah for Solar Wind Power Backup deep cycle Slim Gel Battery
CSPOWER 12v 175ah for Solar Wind Power Backup deep cycle Slim Gel Battery
CSPOWER 12v 175ah for Solar Wind Power Backup deep cycle Slim Gel Battery
CSPOWER 12v 175ah for Solar Wind Power Backup deep cycle Slim Gel Battery
CSPOWER 12v 175ah for Solar Wind Power Backup deep cycle Slim Gel Battery
CSPOWER 12v 175ah for Solar Wind Power Backup deep cycle Slim Gel Battery
CSPOWER 12v 175ah for Solar Wind Power Backup deep cycle Slim Gel Battery
CSPOWER 12v 175ah for Solar Wind Power Backup deep cycle Slim Gel Battery
CSPOWER 12v 175ah for Solar Wind Power Backup deep cycle Slim Gel Battery
CSPOWER 12v 175ah for Solar Wind Power Backup deep cycle Slim Gel Battery
CSPOWER 12v 175ah for Solar Wind Power Backup deep cycle Slim Gel Battery

CSPOWER 12v 175ah for Solar Wind Power Backup deep cycle Slim Gel Battery

Model NO.
FL12-175
Delivery:
EXW,FCA,FOB,CIF,CFR
Minimum order quantity:
24 pieces
Supply Ability:
1000000 pieces / Month
Country of Origin:
Shenzhen/Guangzhou/Foshan etc.
Quantity:
  • Place of Origin:CN;GUA
  • Voltage:12v
  • Sealed Type:Sealed
  • Maintenance Type:Free
  • Usage:telecom system,Solar/ wind system, EPS/UPS system etc.
  • Brand Name:CSPOWER/OEM brand
  • Model Number:FL12-175
  • Size:546* 125* 316 * 323.5 (MM)
  • Weight:54kg/PC
  • Nominal Capacity:175Ah

cspower 12v 175ah for Solar Wind Power Backup deep cycle Slim Gel Battery

Product Parameters

12v 175ah for Solar Wind Power Backup deep cycle Slim Gel Battery

FL12-175

Nominal Voltage

12V (6 cells per unit)

Design Floating Life @ 25℃

12 Years

Nominal Capacity @ 25℃

10 hour rate @17.5A,10.8V

175Ah

Capacity @ 25℃

20hour rate (9.28A,10.8V)

185.6Ah

5 hour rate (30.8A,10.5V)

154.0Ah

1 hour rate (111.7A,9.6V)

111.7Ah

Internal Resistance

Full Charged Battery @ 25℃

≤3.1mΩ

Ambient Temperature

Discharge

-20℃~60℃

Charge

-10℃~60℃

Storage

-20℃~45℃

Max.Discharge Current

@ 25℃ 1050A(5s)

Capacity affected by Temperature (10 hour )

40℃

105%

25℃

100%

0℃

85%

-15℃

65%

Self-Discharge@25℃per Month

3%

Charge (Constant Voltage) @ 25℃

Standby Use

Initial Charging Current Less than 43.0A Voltage 13.6-13.8V

Cycle Use

Initial Charging Current Less than 43.0A Voltage 14.4-14.9V

Dimension (mm*mm*mm)

Length(mm) 546±1 Width(mm) 125±1 Height(mm) 316±1 Total Height(mm) 323.5±1

Weight (kg)

Weight(kg) 54.0±3%

More information for full FL series front terminal gel battery, please kindly click here >>

Product's Details

12v 175ah for Solar Wind Power Backup deep cycle Slim Gel Battery

  • Voltage: 12V
  • Capacity: 175Ah
  • Designed floating service life: 15 years @ 25 °C/77 °F.
  • Cycle Life: over 1200 cycles @ 50%DOD
  • Warranty: 36months free replacement warranty
  • Delivery time: 15-30 days depends on quantity
  • Package: 1PC/Carton;28pcs/Pallet;460pcs/20'GP Container

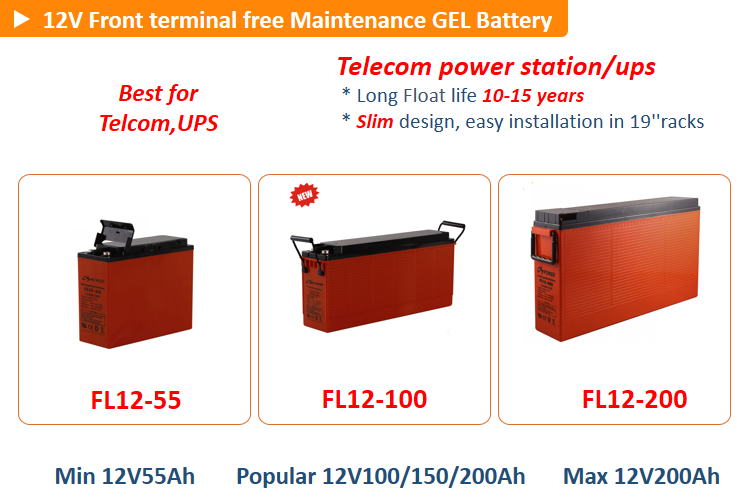

12V FL front terminal solar deep cycle gel battery.PNG

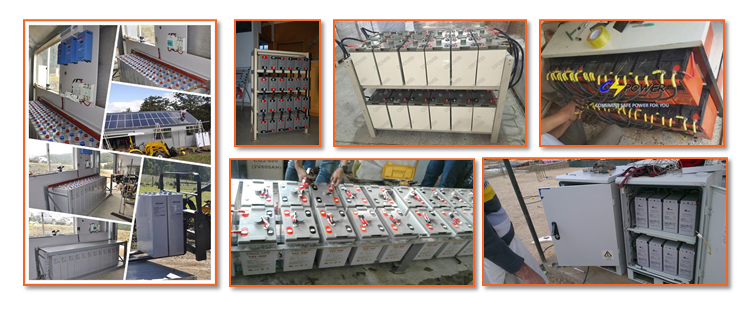

Application

300 Solar battery application.PNG

Applications for 12v 175ah for Solar Wind Power Backup deep cycle Slim Gel Battery

  • Suitable for 19inch and 23inch power cabinet.
  • Used in telecom system including exchange board, microwave station, mobile base station, data center, radio and broadcast station.
  • Great for power supply system of private network or LAN.
  • Used as signal system battery and emergency lighting system battery.
  • Perfect for EPS and UPS system.
  • Solar and wind system

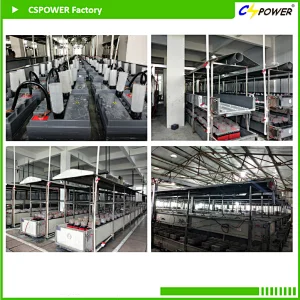

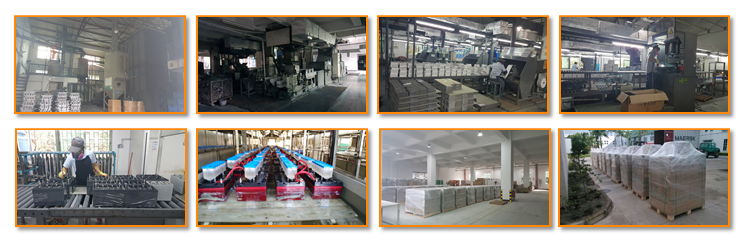

Production

000 Solar battery production.PNG

CSPOWER BATTERY TECH CO.,LTD is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.

Certifications

201 Solar battery Certification.PNG

All our energy storage batteries meet:
ISO9001, ISO14001, OHSAS18001, IEC61427, CE-EMC; CE-LVD and Solar Product Certification, etc.

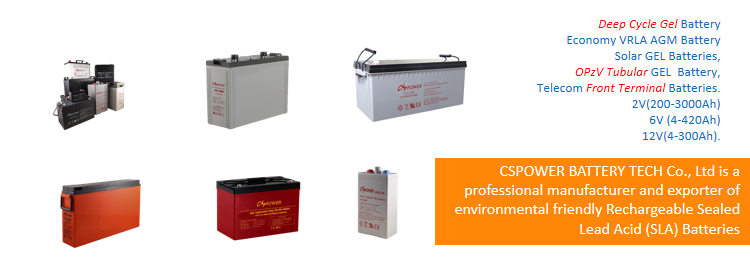

Related Items
