Model NO.
HTL12-26
Delivery:
EXW,FOB,FCA,CIF,CFR
Minimum order quantity:
50 pieces
Supply Ability:
100000 pieces / Month
Country of Origin:
Shenzhen/Guangdong/Foshan
Quantity:
Technical Specs Gel Powerwall Golf Cart
Technical Specs Gel Powerwall Golf Cart has good discharging performance, extended cycle life, and stable performance at high and low temperatures. Technical Specs Gel Powerwall Golf Cart is suitable for a wide range of energy storage applications, particularly renewable solar energy systems. Technical Specs Gel Powerwall Golf Cart has a three-year warranty at an average temperature of 35°C to 40 °C .Deep Cycle usage: 50% DOD, 1500 Cycles work in high/cold temp. area. Adopt Super-C additives lead plates: Deep discharge recovery capability. Use super-C additives lead plates: Deep discharge recovery capability


Technical Specs Gel Powerwall Golf Cart
  • Place of Origin:CN;GUA
  • Voltage:12v
  • Sealed Type:Sealed
  • Maintenance Type:Free
  • Usage:Solar,Wind energy system, UPS system, Mrine system, Golf Cart
  • Brand Name:CSPOWER/OEM brand
  • Model Number:HTL12-26
  • Size:165*126*174*179(mm)
  • Weight:8.7kg/PC
  • Nominal Capacity:26AH
Technical Specs Gel Powerwall Golf Car

HTL12-26

Nominal Voltage

12V (6 cells per unit)

Design Floating Life @ 25℃

15 Years

Nominal Capacity @ 25℃

20 hour rate@ 21.0A, 5.4V

26Ah

Capacity @ 25℃

10 hour rate (37.8A, 5.4V)

23Ah

5 hour rate (66.8A, 5.25V)

20.5Ah

1 hour rate (233.3A, 4.8V)

15.9Ah

Internal Resistance

Full Charged Battery@ 25℃

≤11.5mΩ

Ambient Temperature

Discharge

-25℃~60℃

Charge

-25℃~60℃

Storage

-25℃~60℃

Max.Discharge Current

@ 25℃ 1260A(5s)

Capacity affected by Temperature (10 hour )

40℃

108%

25℃

100%

0℃

90%

-15℃

70%

Self-Discharge@25℃per Month

3%

Charge (Constant Voltage) @ 25℃

Standby Use

Initial Charging Current Less than 6A Voltage 13.6 - 13.8V

Cycle Use

Initial Charging Current Less than 6A Voltage 14.4 - 14.9V

Dimension (mm*mm*mm)

Length 166±1 * Width 126±1 * Height 174±1 (Total Height 174±1)

Weight (kg)

8.5±3%

Application

The HTL series is a high-temperature sealed free maintenance deep cycle GEL battery with a design life of 18-20 years in float use, which is 30% better than a regular Gel battery and 50% longer than a Lead Acid AGM battery.


It complies with IEC, CE, and ISO requirements.


The HTL series battery maintains high consistency for enhanced performance and stable standby service life owing to updated valve controlled technology and high purity raw GEL materials. It's designed especially for use in high- and low-temperature conditions.

Technical Specs Gel Powerwall Golf Cart

  • BTS Stations
  • Solar & Wind energy system
  • UPS system
  • Mrine system
  • Golf Cart&Electric Wheels
  • Other power system

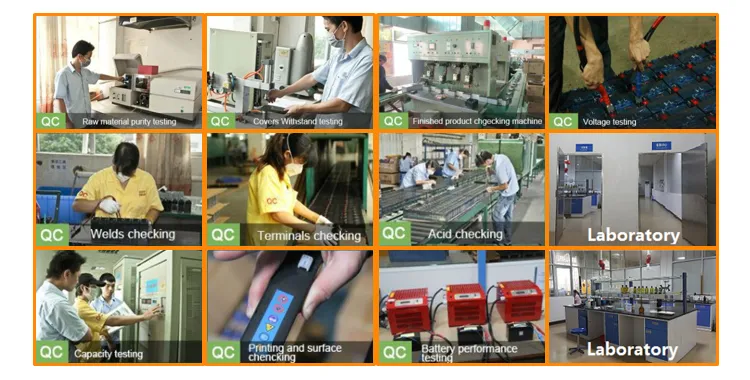

Technical Specs Gel Powerwall Golf Cart Process

200 Solar battery qc.PNG

CSPOWER VRLA BATTERIES CERTIFICATIONS:

201 Solar battery Certification.PNG

All our energy storage batteries meet ISO9001, ISO14001, OHSAS18001, IEC61427, CE-EMC; CE-LVD and Solar Product Certification, etc.

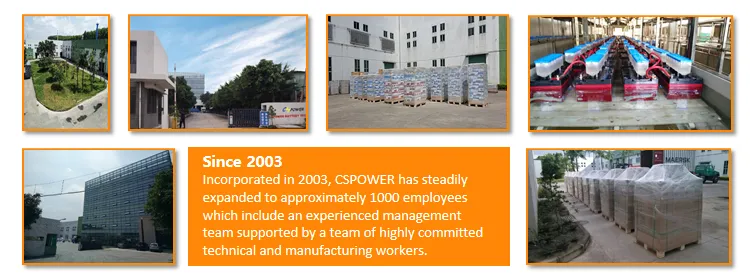

Factory Show

400 Solar battery factory.PNG

CSPOWER BATTERY TECH CO.,LTD is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.

FAQ

Q: Can you print my logo on the battery cover?

A: Yes, OEM is available,we can print your logo on the battery case freely.

Q: Can I order the batteries with other colors that I want ?

A: Yes. Any special color that you would prefer to, welcome to discuss with us.

Q: How long is your delivery time?

A: Usually it takes about 10-20 days for production varies with products. Urgent delivery it in 5days

Q: What is your warranty policy?

A: We provide 1 ~ 5 years different free replacement warranty according to different battery series.

Q: Can we visit your factory ?

A: Welcome to visit our factroy any time when you're free. :)
