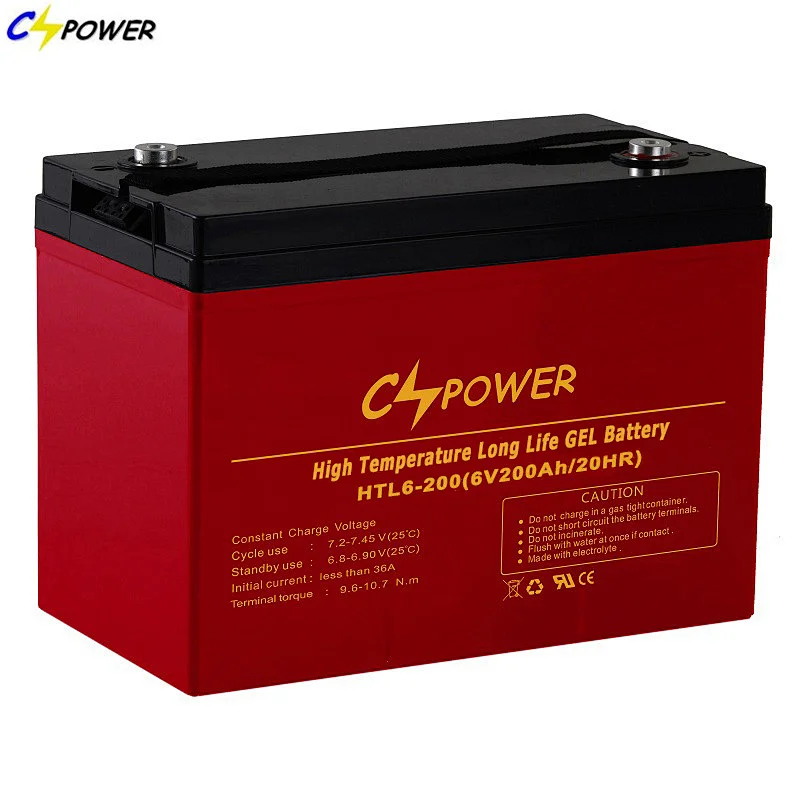

Deep Cycle Gel  6v 200ah Motive Power Storage Solar Battery
Deep Cycle Gel  6v 200ah Motive Power Storage Solar Battery
Deep Cycle Gel  6v 200ah Motive Power Storage Solar Battery
Deep Cycle Gel  6v 200ah Motive Power Storage Solar Battery
Deep Cycle Gel  6v 200ah Motive Power Storage Solar Battery
Deep Cycle Gel  6v 200ah Motive Power Storage Solar Battery
Deep Cycle Gel  6v 200ah Motive Power Storage Solar Battery
Deep Cycle Gel  6v 200ah Motive Power Storage Solar Battery
Deep Cycle Gel  6v 200ah Motive Power Storage Solar Battery
Deep Cycle Gel  6v 200ah Motive Power Storage Solar Battery
Deep Cycle Gel  6v 200ah Motive Power Storage Solar Battery
Deep Cycle Gel  6v 200ah Motive Power Storage Solar Battery
Deep Cycle Gel  6v 200ah Motive Power Storage Solar Battery
Deep Cycle Gel  6v 200ah Motive Power Storage Solar Battery
Deep Cycle Gel  6v 200ah Motive Power Storage Solar Battery
Deep Cycle Gel  6v 200ah Motive Power Storage Solar Battery
Deep Cycle Gel  6v 200ah Motive Power Storage Solar Battery

Deep Cycle Gel 6v 200ah Motive Power Storage Solar Battery

Model NO.
HTL6-200 deep cycle battery
Delivery:
EXW,FCA,FOB,CIF,CFR
Minimum order quantity:
24 pieces
Supply Ability:
100000 pieces / Month
Country of Origin:
Shenzhen/Guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Sealed Type:Sealed
  • Maintenance Type:Free
  • Certification:UL
  • Certification:ce
  • Usage:Folklift, Golf buggies,ups battery, caravan battery , inverter battery
  • Brand Name:CSPOWER
  • Model Number:HTL6-200 deep cycle battery
  • Weight:30.3kgs deep cycle battery

Rechargeable Bateria 6V 200ah Maintenance Free Deep Cycle Gel Solar Battery

Deep Cycle Gel 6v 200ah Motive Power Storage Solar Battery

--- For solar power station/Folklift/Golf buggies
1. 3 years warranty of solar battery at 35°C average
2. Able to operate at 60°C
3. Cycle usage: 50% DOD, 1500cycles, 30% DOD 2200cycles.
4. Solar battery design Floating Life 25°C: 20 years
5. Self-discharge is 2% ~ 3% per month.
Product Overviews

HTL 6V GEL battery (10).jpg

Product Description
HTL6-200
Nominal Voltage6V (3 cells per unit)
Design Floating Life @ 25℃20 Years
Nominal Capacity @ 25℃20 hour rate @ 21.0A, 5.4V200Ah
Capacity @ 25℃10 hour rate (37.8A, 5.4V)180Ah
5 hour rate (66.8A, 5.25V)159Ah
1 hour rate (233.3A, 4.8V)115.5Ah
Internal ResistanceFull Charged Battery @ 25℃≤3mΩ
Ambient TemperatureDischarge-25℃~60℃
Charge-25℃~60℃
Storage-25℃~60℃
Max.Discharge Current@ 25℃ 600A(5s)
Capacity affected by Temperature (10 hour )40℃108%
25℃100%
0℃90%
-15℃70%
Self-Discharge @ 25℃per Month3%
Charge (Constant Voltage) @ 25℃Standby UseInitial Charging Current Less than 40A Voltage 6.8 - 6.9V
Cycle UseInitial Charging Current Less than 40A Voltage 7.2 - 7.45V
Dimension (mm*mm*mm)Length 306±1 * Width 168±1 * Height 220±1 (Total Height 225±1)
Weight (kg)30.1±3%


The HTL deep cycle gel solar battery adopts the advanced developed nano gel electrolyte with super-C additive plus heavy duty plates design inside. It has a longer service life even deep cycle discharge use and can provide optimum and reliable service under extreme condition such as high temperature and frequent power failure, thus it is highly suited for tropical area in outdoor applications such as Telecom BTS stations and Off-grid PV system.

Features and Advantages of high temperature deep cycle gel battery

1. Able to operate at -20-60°C
2. Integrated design to ensure the best uniformity and reliability
3. Longer life and higher stability under high temp. environment (no air-con needed)
4. Super-C additives: Deep discharge recovery capability, 1600cycles @50%DOD

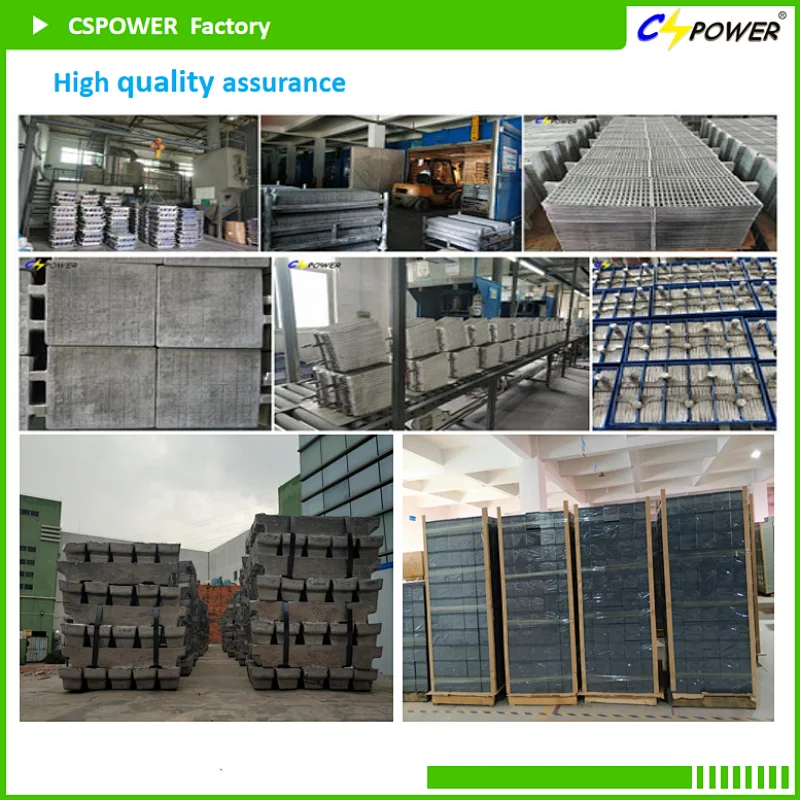

QC process

200 Solar battery qc.PNG

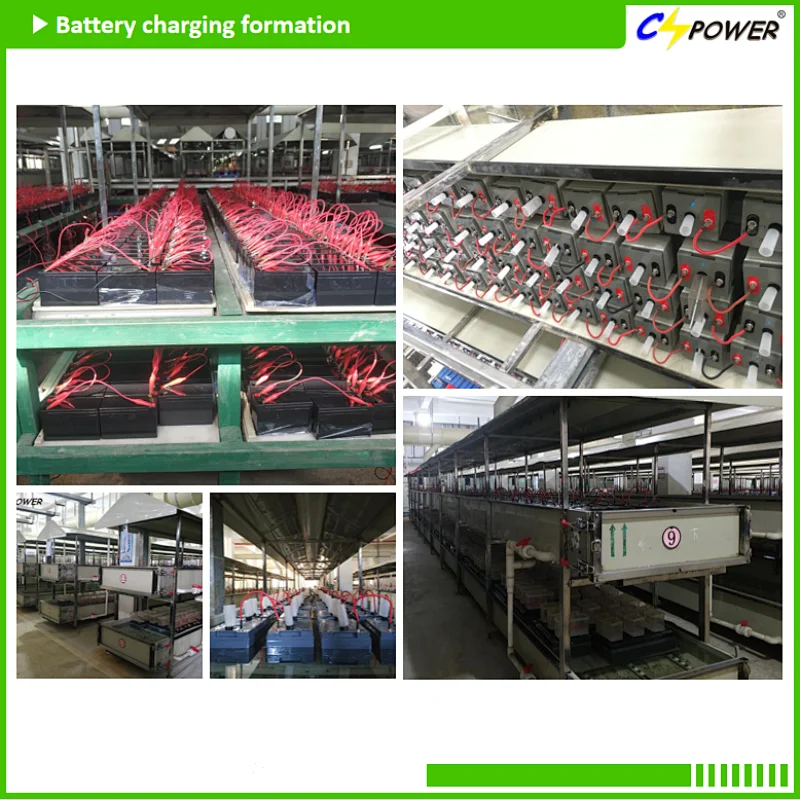

000 Solar battery production.PNG

Company Information

400 Solar battery factory.PNG

Our Services

401 Solar battery factory - 1.PNG

CSPOWER BATTERY TECH CO.,LTD is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.

Q: Can you print my logo on the battery cover?

A: Yes, OEM is available,we can print your logo on the battery case freely. Welcome to send us your logo design and dicuss with us about the details.

Q: How long is your delivery time?

A: Usually it takes about 10-20 days for production varies with products. Urgent delivery it in 5days

Q: What is your warranty policy?

A: We provide 1 ~ 5 years different warranty.

Q: Why Choose CSPOWER?

A: 1) Nearly 13 years leading manufacturer,all production lines in our factory are automatic and imported from Germany.

2) 20000KWH production capacity to guarantee the best deliver time

3) The good construction warranty - 1-5 years free replacement no need return.

4) Comprehensive certificates approval: CE / ISO / IEC

5) The reasonable and most competitive price without sacrifice of quality.

6) A professional experienced team to provide you high-quality service before and after sale.
