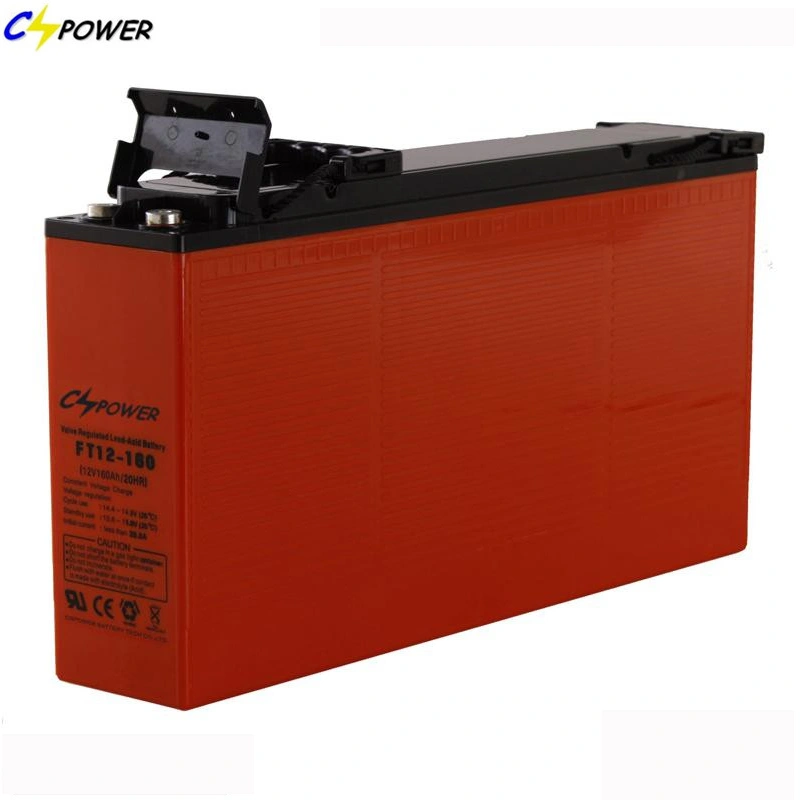

Front Terminal 12V 160AH Front Access Lead Acid VRLA AGM Battery

Model NO.
FT12-160 agm battery
Delivery:
EXW,FCA,FOB,CIF,CFR
Minimum order quantity:
24 pieces
Supply Ability:
100000 pieces / Month
Country of Origin:
Shenzhen/Guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Sealed Type:Sealed
  • Maintenance Type:Free
  • Certification:UL
  • Certification:ce
  • Usage:ups, telecom, wind system etc
  • Brand Name:CSPOWER
  • Model Number:FT12-160 agm battery
  • Weight:44.5kgs agm battery

Front Terminal 12V 160AH Front Access Lead Acid VRLA AGM Battery

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>Contact US


1. Suitable for 19inch and 23inch power cabinet.
2. Used in telecom system including exchange board, microwave station, mobile base station, data center, radio and broadcast station.
3. Suit for power supply system of private network or LAN.
4. Used as signal system battery and emergency lighting system battery.
5. Perfect for EPS and UPS system.
6. Solar and wind system.

FT12-160

Nominal Voltage

12V (6 cells per unit)

Design Floating Life @ 25℃

10 Years

Nominal Capacity @ 25℃

10 hour rate @20.0A,10.8V

160Ah

Capacity @ 25℃

20hour rate (10.6A,10.8V)

169.6Ah

5 hour rate (33.4A,10.5V)

141.0Ah

1 hour rate (121.2A,9.6V)

102.1Ah

Internal Resistance

Full Charged Battery @ 25℃

≤2.9mΩ

Ambient Temperature

Discharge

-15℃~45℃

Charge

-15℃~45℃

Storage

-15℃~45℃

Max.Discharge Current

@ 25℃ 1200A(5s)

Capacity affected by Temperature (10 hour )

40℃

105%

25℃

100%

0℃

85%

-15℃

65%

Self-Discharge@25℃per Month

3%

Charge (Constant Voltage) @ 25℃

Standby Use

Initial Charging Current Less than 50.0A Voltage 13.6-13.8V

Cycle Use

Initial Charging Current Less than 50.0A Voltage 14.4-14.9V

Dimension (mm*mm*mm)

Length(mm) 560±1 Width(mm) 125±1 Height(mm) 316±1 Total Heigth(mm) 316±1

Weight (kg)

Weight(kg) 55.3±3%

  • Voltage: 12V
  • Capacity: 12V 160Ah
  • Designed floating service life: 10 years @ 25 °C/77 °F.
  • Cycle Life: over 750 cycles @ 50%DOD
  • Warranty: 3 years free replacement warranty
  • Delivery time: 15-30 days depends on quantity
  • Package: 1PC/Carton;26pcs/Pallet;448pcs/20'GP Container



Q: Can you print my logo on the battery cover?

A:Yes, OEM is available,we can print your logo on the battery case freely. Welcome to send us your logo design and discuss with us about the details.

Q:How long is your delivery time?

A:Usually it takes about 10-20 days for production varies with products. Urgent delivery it in 5days.

Q: What is your warranty policy?

A: We provide 1 ~ 5 years different warranty.

Q:Why Choose CSPOWER?

A: 1) Nearly 13 years leading manufacturer,all production lines in our factory are automatic and imported from Germany.

2) 20000KWH production capacity to guarantee the best deliver time

3) The good construction warranty - 1-5 years free replacement no need return.

4) Comprehensive certificates approval: CE / ISO / IEC

5) The reasonable and most competitive price without sacrifice of quality.

6) A professional experienced team to provide you high-quality service before and after sale.
