Model NO.
HTL12-20Ah
Delivery:
EXW,FOB,FCA,CIF,CFR
Minimum order quantity:
24 pieces
Supply Ability:
50000000000 pieces / Month
Country of Origin:
shenzhen
Quantity:
Solar Self-Consumption Technical Specs Powerwall Inverter
Solar Self-Consumption Technical Specs Powerwall Inverter has good discharging performance, extended cycle life, and stable performance at high and low temperatures. Solar Self-Consumption Technical Specs Powerwall Inverter is suitable for a wide range of energy storage applications, particularly renewable solar energy systems. Solar Self-Consumption Technical Specs Powerwall Inverter is maintenance-free, carried with valve-sealed construction with no free electrolyte. Adopt Super-C additives lead plates: Deep discharge recovery capability. Deep Cycle usage: 50% DOD, 1500-1600 Cycles work in high/cold temp. area.


Solar Self-Consumption Technical Specs Powerwall Inverter
  • Place of Origin:CN;GUA
  • Sealed Type:Sealed
  • Maintenance Type:Free

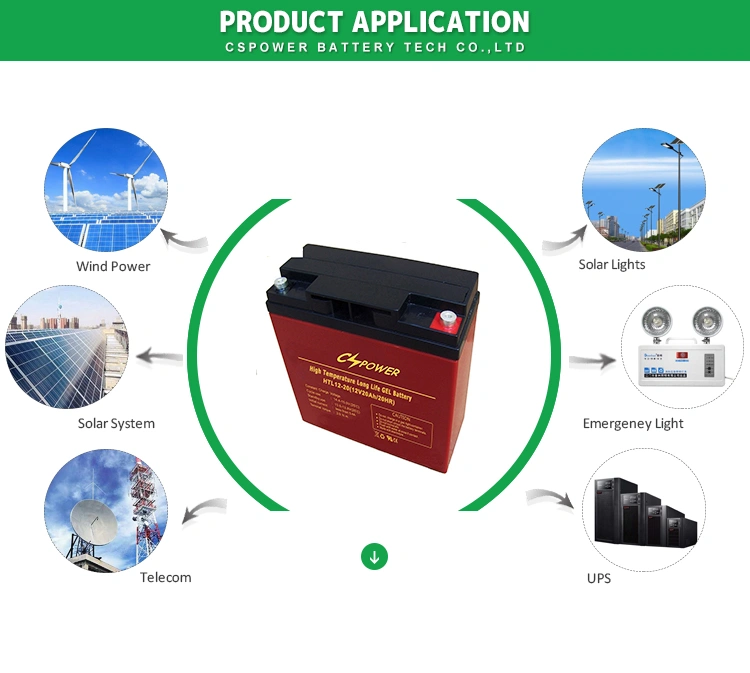

  • Usage:ups, solar, inverter, telecom, back-up
  • Brand Name:CSPOWER
  • Model Number:HTL12-20Ah
  • Weight:6.3

Maintenance free 12V solar deep cycle gel solar battery 20ah for UPS Inverter Solar power system Home

>>>>>>>>>>>>>>>>>>>>>>>Contact US





Solar Self-Consumption Technical Specs Powerwall Inverter Parameters

CSPOWER HTL12-20 High temperature deep cycle gel battery specificaiton

HTL12-20

Nominal Voltage

12V (6 cells per unit)

Design Floating Life @ 25℃

15 Years

Nominal Capacity @ 25℃

20 hour rate@ 21.0A, 5.4V

20Ah

Capacity @ 25℃

10 hour rate (37.8A, 5.4V)

18Ah

5 hour rate (66.8A, 5.25V)

16Ah

1 hour rate (233.3A, 4.8V)

11.1Ah

Internal Resistance

Full Charged Battery@ 25℃

≤12.0mΩ

Ambient Temperature

Discharge

-15℃~45℃

Charge

-15℃~45℃

Storage

-15℃~45℃

Max.Discharge Current

@ 25℃ 120A(5s)

Capacity affected by Temperature (10 hour )

40℃

105%

25℃

100%

0℃

85%

-15℃

65%

Self-Discharge@25℃per Month

3%

Charge (Constant Voltage) @ 25℃

Standby Use

Initial Charging Current Less than 6A Voltage 13.6 - 13.8V

Cycle Use

Initial Charging Current Less than 6A Voltage 14.4 - 14.9V

Dimension (mm*mm*mm)

Length 181±1 * Width 77±1 * Height 167±1 (Total Height 167±1)

Weight (kg)

6±3%

More capacity details for HTL series, kindly CLICKhere

Solar Self-Consumption Technical Specs Powerwall Inverter

Advantages for CSPOWER Power Boat Pontoon Electric Trolling Motor Deep Cycle Battery
1. Three years warranty at 35°C-40°C average
2. Able to operate at -40°C to 60°C
3. Longer life and higher stability under high temp. environment (no air-con needed)
4. Use super-C additives lead plates: Deep discharge recovery capability  5. Cycle usage: 50% DOD, 1500 Cycles work in high/cold temp. area._08.pngHTL12-20.JPG


Q: Can you print my logo on the battery cover?

A:Yes, OEM is available,we can print your logo on the battery case freely. Welcome to send us your logo design and discuss with us about the details.

Q:How long is your delivery time?

A:Usually it takes about 10-20 days for production varies with products. Urgent delivery it in 5days.

Q: What is your warranty policy?

A: We provide 1 ~ 5 years different warranty.

Q:Why Choose CSPOWER?

A: 1) Nearly 13 years leading manufacturer,all production lines in our factory are automatic and imported from Germany.

2) 20000KWH production capacity to guarantee the best deliver time

3) The good construction warranty - 1-5 years free replacement no need return.

4) Comprehensive certificates approval: CE / ISO / IEC

5) The reasonable and most competitive price without sacrifice of quality.

6) A professional experienced team to provide you high-quality service before and after sale.
