Solar Storaging Gel Powerwall Specs Incentive
Solar Storaging Gel Powerwall Specs Incentive

Solar Storaging Gel Powerwall Specs Incentive

Model NO.
HTL12-100Ah
Delivery:
FOB
Minimum order quantity:
10 pieces
Supply Ability:
50000000000 pieces / Month
Country of Origin:
shenzhen
Quantity:
deep cycle lithium battery solar

12V 100Ah deep cycle lithium battery solar has good discharging performance, extended cycle life, and stable performance at high and low temperatures. The deep cycle lithium battery solar is suitable for a wide range of energy storage applications, particularly renewable solar energy systems. The deep cycle lithium battery solar has three-year guarantee at an average temperature of 35°C-40°C with operating temperature range of -40°C to 60°C. The deep cycle lithium battery solar has Longer lifespan and greater stability in high-temperature environments (Perfect to be applied to renewable energy system or hybrid power system at tough condition.) Use lead plates with Super-C additives: Capacity for deep discharge recovery. Use of Deep Cycles: 50% DOD, 1500 Cycles in a high/cold temperature location.


deep cycle lithium battery solar

  • Place of Origin:CN;GUA
  • Sealed Type:Sealed
  • Maintenance Type:Free
  • Usage:ups, solar, inverter, telecom, back-up
  • Brand Name:CSPOWER
  • Model Number:HTL12-100Ah
  • Weight:30.5kg
Solar Storaging Gel Powerwall Specs Incentive
deep cycle lithium battery solar
HTL12-100
Nominal Voltage12V (6 cells per unit)
Design Floating Life @ 25℃20 Years
Nominal Capacity @ 25℃20 hour rate@ 21.0A, 5.4V100Ah
Capacity @ 25℃10 hour rate (37.8A, 5.4V)90Ah
5 hour rate (66.8A, 5.25V)79.5Ah
1 hour rate (233.3A, 4.8V)55.6Ah
Internal ResistanceFull Charged Battery@ 25℃≤5.3mΩ
Ambient TemperatureDischarge-25℃~60℃
Charge-25℃~60℃
Storage-25℃~60℃
Max.Discharge Current@ 25℃ 540A(5s)
Capacity affected by Temperature (10 hour )40℃108%
25℃100%
0℃90%
-15℃70%
Self-Discharge@25℃per Month3%
Charge (Constant Voltage) @ 25℃Standby UseInitial Charging Current Less than 22.5A Voltage 13.6 - 13.8V
Cycle UseInitial Charging Current Less than 22.5A Voltage 13.6 - 13.8V
Dimension (mm*mm*mm)Length 307±1 * Width 169±1 * Height 211±1 (Total Height 216±1)
Weight (kg)30.5±3%
Solar Storaging Gel Powerwall Specs Incentive

12v 100ah solar battery

Solar Storaging Gel Powerwall Specs Incentive

QC/ Certification

high quality 12v 100ah solar battery

China 12v 100ah solar battery

Application

12v 100ah solar battery wholesale12v 100ah solar battery manufacturers

Applications of CSPOWER UPS Free Maintenance Solar Gel Battery 12V (HTL type)
BTS Stations, Solar Wind energy system, UPS system, Golf Cart Electric Wheels, and another power system

CSPOWER 12v 100ah Solar Battery, Strive for Perfection, Time-honored, and Battery Quality is Higher Than the Industry Standard, High-quality Materials, Fine Workmanship, Trustworthy

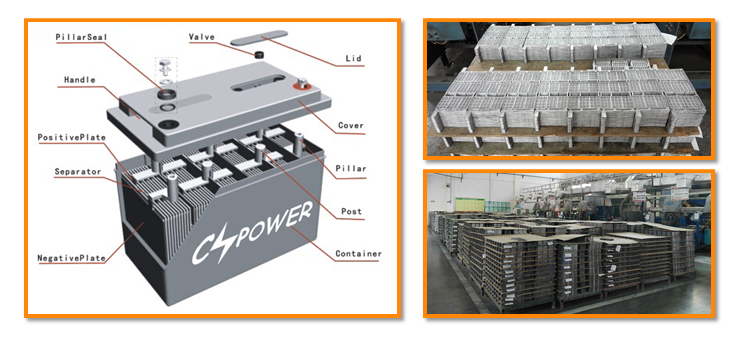

CSPOWER 12v 100ah Solar Battery, Source Manufacturer, Strength Supply, Unlike Other Battery Manufacturers, We Ensure Comprehensive Quality Control. Mesh Casting, Sheet Pasting and Final Assembly Are All Done in Our Own Manufacturing Plant.
