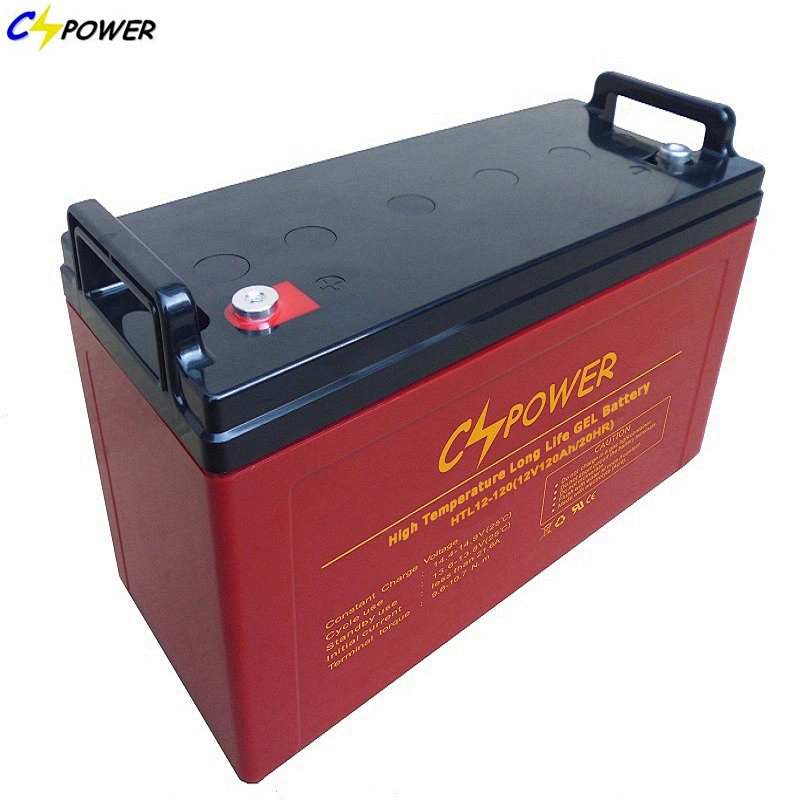

12V 120Ah Cheap Deep Cycle Marine Battery (HTL12-120)
12V 120Ah Cheap Deep Cycle Marine Battery (HTL12-120)
12V 120Ah Cheap Deep Cycle Marine Battery (HTL12-120)
12V 120Ah Cheap Deep Cycle Marine Battery (HTL12-120)
12V 120Ah Cheap Deep Cycle Marine Battery (HTL12-120)
12V 120Ah Cheap Deep Cycle Marine Battery (HTL12-120)
12V 120Ah Cheap Deep Cycle Marine Battery (HTL12-120)
12V 120Ah Cheap Deep Cycle Marine Battery (HTL12-120)
12V 120Ah Cheap Deep Cycle Marine Battery (HTL12-120)
12V 120Ah Cheap Deep Cycle Marine Battery (HTL12-120)
12V 120Ah Cheap Deep Cycle Marine Battery (HTL12-120)

12V 120Ah Cheap Deep Cycle Marine Battery (HTL12-120)

Model NO.
HTL12-120 (Marine Battery)
Delivery:
EXW,FOB,FCA,CIF,CFR
Minimum order quantity:
24 pieces
Supply Ability:
100000 pieces / Month
Country of Origin:
Shenzhen/Guangdong/Foshan
Quantity:
  • Place of Origin:CN;GUA
  • Voltage:12v
  • Sealed Type:Sealed
  • Maintenance Type:Free
  • Usage:Solar,Wind energy system, UPS system, Mrine system, Golf Cart
  • Brand Name:CSPOWER/OEM brand
  • Model Number:HTL12-120 (Marine Battery)
  • Size:407*173*210*233(mm)
  • Weight:39.5kg
  • Nominal Capacity:120AH/20HR

Deep cycle 12v 120ah deep cycle marine battery (HTL12-120)

Battery Features

12V HTL Series high temperature solar deep cycle gel battery.PNG

FEATURES AND BENEFITS FOR HTL BATTERIES
1. Three years warranty at 35°C-40°C average
2. Able to operate at -40°C to 60°C
3. Longer life and higher stability under high temp. environment (no air-con needed)
4. Use super-C additives lead plates: Deep discharge recovery capability
5. Cycle usage: 50% DOD, 1500 Cycles work in high/cold temp. area.

HTL series is specially High-temperature sealed free maintenance deep cycle GEL battery with 18-20 years design life in float service, 30% more than standard Gel battery, and 50% more than Lead Acid AGM battery.

Product Parameters

CSPOWER HTL12-120 High temperature deep cycle gel battery specificaiton

HTL12-120

Nominal Voltage

12V (6 cells per unit)

Design Floating Life @ 25℃

20 Years

Nominal Capacity @ 25℃

20 hour rate@ 21.0A, 5.4V

120Ah

Capacity @ 25℃

10 hour rate (37.8A, 5.4V)

108Ah

5 hour rate (66.8A, 5.25V)

95.5Ah

1 hour rate (233.3A, 4.8V)

69.3Ah

Internal Resistance

Full Charged Battery@ 25℃

≤4.8mΩ

Ambient Temperature

Discharge

-25℃~60℃

Charge

-25℃~60℃

Storage

-25℃~60℃

Max.Discharge Current

@ 25℃ 720A(5s)

Capacity affected by Temperature (10 hour )

40℃

108%

25℃

100%

0℃

90%

-15℃

70%

Self-Discharge@25℃per Month

3%

Charge (Constant Voltage) @ 25℃

Standby Use

Initial Charging Current Less than 27A Voltage 13.6 - 13.8V

Cycle Use

Initial Charging Current Less than 27A Voltage 13.6 - 13.8V

Dimension (mm*mm*mm)

Length 407±1 * Width 174±1 * Height 210±1 (Total Height 233±1)

Weight (kg)

39.5±3%

More capacity details for HTL series, kindly CLICKhere

Certifications

201 Solar battery Certification.PNG

All our energy storage batteries meet:
ISO9001, ISO14001, OHSAS18001, IEC61427, CE-EMC; CE-LVD and Solar Product Certification, etc.

Application

Applications for High temperature deep cycle gel batteries

  • BTS Stations
  • Solar & Wind energy system
  • UPS system
  • Mrine system
  • Golf Cart&Electric Wheels
  • Other power system
Related Items

500 Solar battery prouduct.PNG

CSPOWER Batteries Tags:

  • lead acid battery, AGM battery, GEL battery, OPzV battery,Opzs battery,tubular gel battery,
    valve regulated lead acid battery,VRLA battery, SLA battery,energy sotrage battery
  • long life gel battery, deep cycle deep acid battery, backup energy battery, deep cycle solar
    battery,Maintenance free battery,sealed lead acid battery,rechargeable lead acid
    battery,high rate battery
  • 2V battery,battery pack ,12V battery, 48V battery,6V solar ups battery,battery banks,battery for 48v system
  • solar panel battery,solar power storage battery,solar battery,home use storage
    battery,marine battery,telecom battery, UPS battery,industrial battery,automotive battery,
    spiral lead acid battery,starting lead acid battery, forklift battery,emergency lighting

Contact us for more details >>

Our Service

402 Solar battery factory -1.PNG

CSPOWER BATTERY TECH CO.,LTD is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.

CSPOWER Sevices:

Q: Can you print my logo on the battery cover?
A: Yes, OEM is available,we can print your logo on the battery case freely. Welcome to send us your logo design and dicuss with us about the details.

Q: How long is your delivery time?
A: Usually it takes about 10-20 days for production varies with products. Urgent delivery it in 5days

Q: What is your warranty policy?
A: We provide 1 ~ 5 years different warranty.
