Model NO.
CS12-230 ( Solar Battery)
Delivery:
EXW,FOB,FCA,CIF,CFR
Minimum order quantity:
24 pieces
Supply Ability:
100000 pieces / Month
Country of Origin:
Shenzhen/Guangzhou/Foshan
Quantity:
  • Place of Origin:CN;GUA
  • Voltage:12v
  • Sealed Type:Sealed
  • Maintenance Type:Free
  • Usage:UPS systems, Inverter;Solar&Wind; Emergency Power Systems;Telecom
  • Brand Name:CSPOWER/ OEM Brand
  • Model Number:CS12-230 ( Solar Battery)
  • Size:522*240*219*224 (mm)
  • Weight:60.5kg/PC
  • Nominal Capacity:230AH

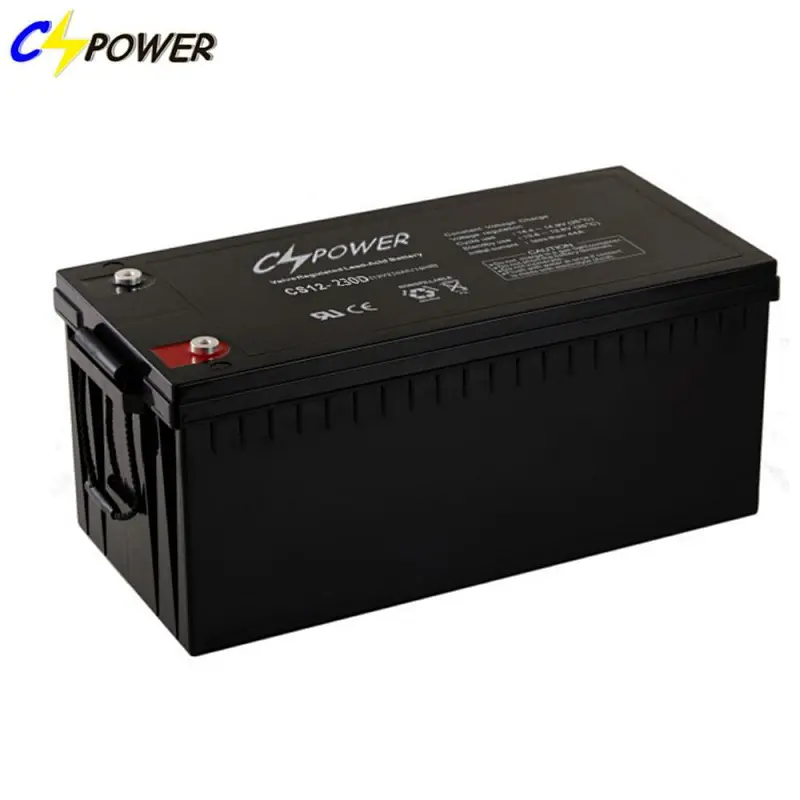

12V 230AH AGM SLA Deep Cycle 10 year life Battery

CSPOWER CS12-230 VRLA Deep Cycle AGM Battery specificaiton

CS12-230

Nominal Voltage

12V (6 cells per unit)

Design Floating Life @ 25℃

10 Years

Nominal Capacity @ 25℃

10 hour rate @ 23.0A,10.8V

230Ah

Capacity @ 25℃

20 hour rate (12.1A, 10.8V)

242Ah

5 hour rate (38.9A, 10.5V)

195.4Ah

1 hour rate (142.8A,9.6V)

142.8Ah

Internal Resistance

Full Charged Battery @ 25℃

≤2.1mΩ

Ambient Temperature

Discharge

-15℃~45℃

Charge

-15℃~45℃

Storage

-15℃~45℃

Max.Discharge Current

@ 25℃ 1380A(5s)

Capacity affected by Temperature (10 hour )

40℃

105%

25℃

100%

0℃

85%

-15℃

65%

Self-Discharge@25℃per Month

3%

Charge (Constant Voltage) @ 25℃

Standby Use

Initial Charging Current Less than 57.5A Voltage 13.6-13.8V

Cycle Use

Initial Charging Current Less than 57.5A Voltage 14.4-14.9V

Dimension (mm*mm*mm)

Length 522±1 * Width 240±1 * Height 219±1 (Total Height 224±1)

Weight (kg)

60.5±3%

More capacity of CS series Vrla agm battery, please kindly Clickhere

Product Features

12V CS series AGM solar deep cycle battery

12V 230AH AGM SLA Deep Cycle 10 year life Battery

  • 30% more cyclic life through innovation at the PAM additives
  • Long life expectancy of 10 years in floating condition
  • Thick flat plate with high Tin low Calcium alloy
  • Wide operating temperature range from -20 °C to 50°C
  • 2%Low self-discharge rate
  • Very good deep cycle performance: up to 500 cycles @80% DOD
  • Excellent deep discharge recovery capability
QC and Certification

200 Solar battery qc.PNG201 Solar battery Certification.PNG

All our energy storage batteries meet:

ISO9001, ISO14001, OHSAS18001, IEC61427, CE-EMC; CE-LVD and Solar Product Certification, etc.

Product Application

301 Solar battery application.PNG

Applications -- 12V VRLA AGM Batteries


UPS systems, Inverter systems, Solar and Wind, Emergency systems, Security systems,Control System, Medical Equipments, Electric Powered Vehicles, Golf Cars and Buggies, Wheel Chairs, Power Tools, Electric Powered Toys, and so on.

About us

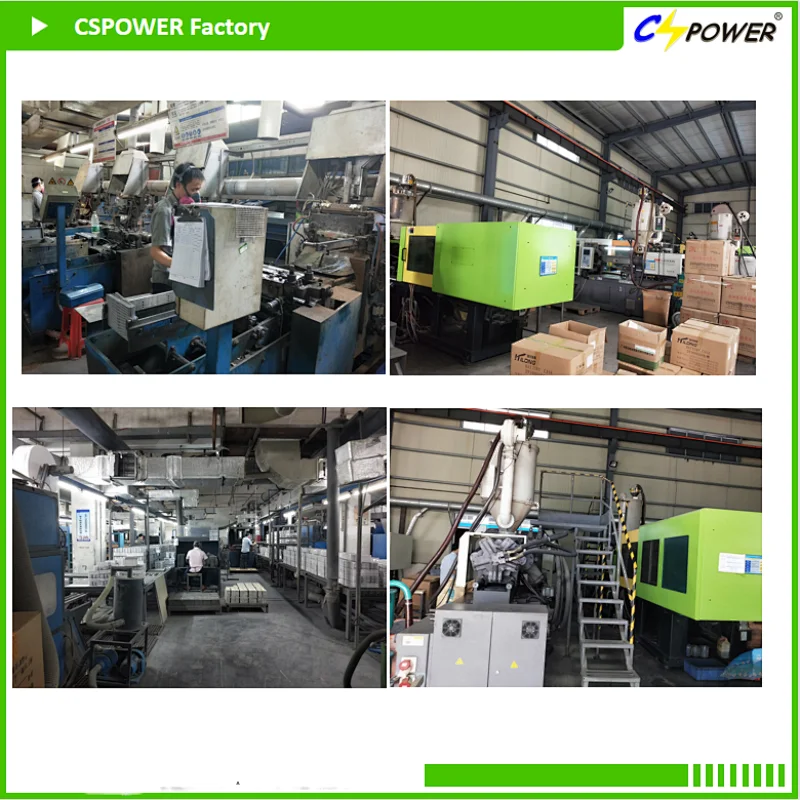

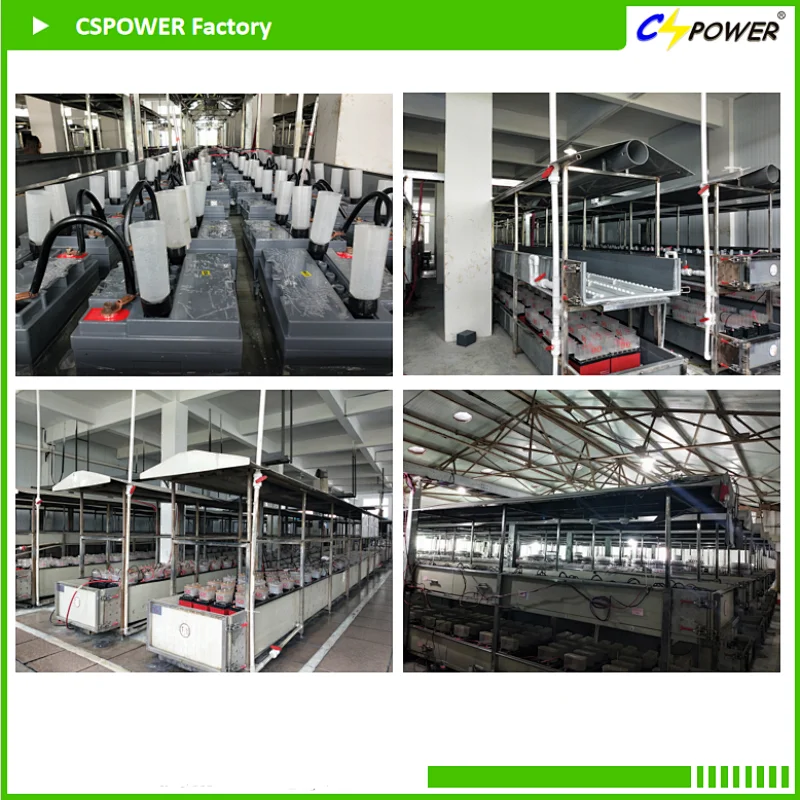

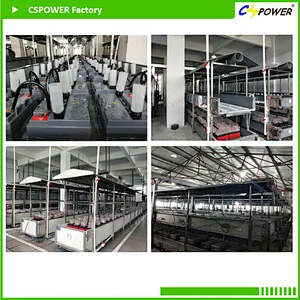

402 Solar battery factory.PNG

CSPOWER BATTERY TECH CO.,LTD is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.

FAQ

Q: Can you print my logo on the battery cover?

A: Yes, OEM is available,we can print your logo on the battery case freely.

Q: Can I order the batteries with other colors that I want ?

A: Yes. Any special color that you would prefer to, welcome to discuss with us.

Q: How long is your delivery time?

A: Usually it takes about 10-20 days for production varies with products. Urgent delivery it in 5days

Q: What is your warranty policy?

A: We provide 1 ~ 5 years different free replacement warranty.

Q: Can we visit your factory ?

A: Welcome to visit our factroy any time when you're free.:)
