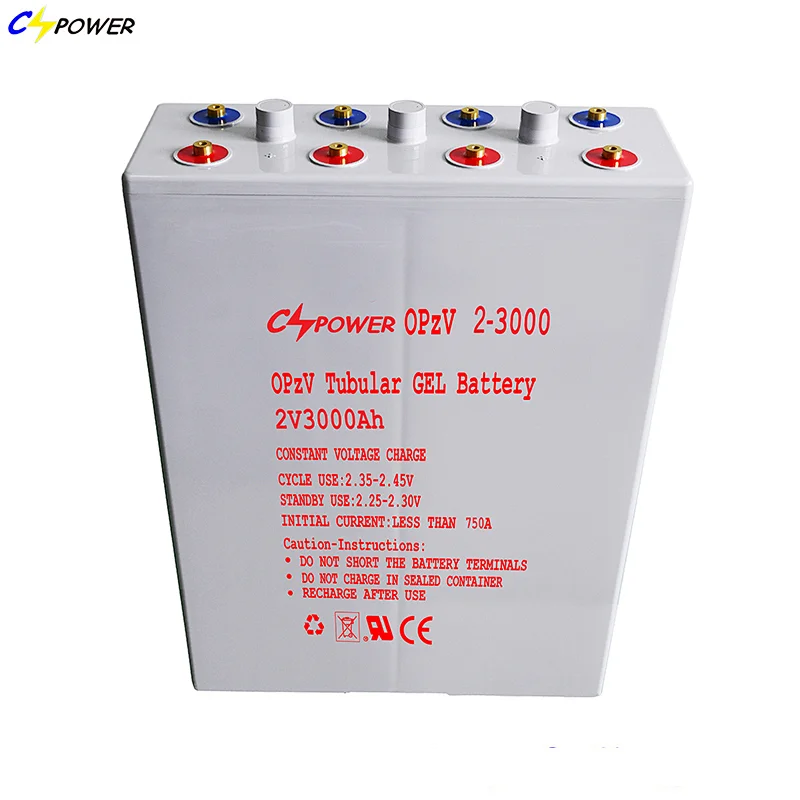

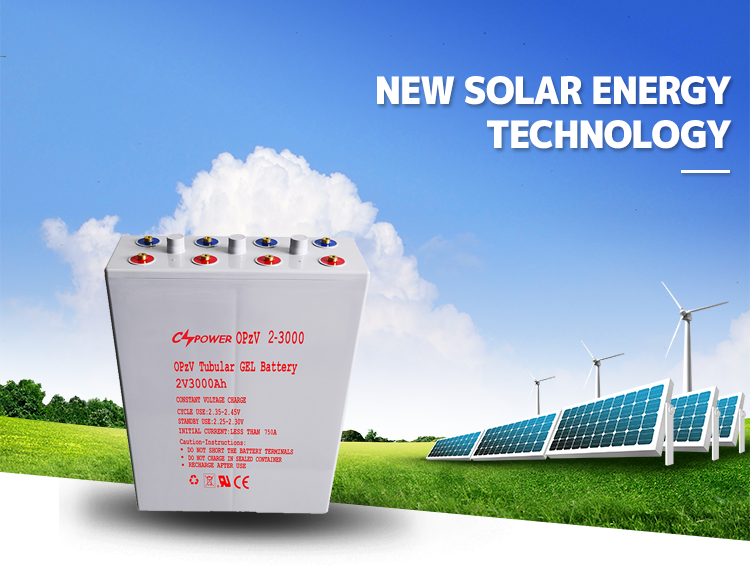

2V 3000Ah OPzV Tubular Gel Solar Power Storage Sealed Lead Acid Rechargeable Battery
2V 3000Ah OPzV Tubular Gel Solar Power Storage Sealed Lead Acid Rechargeable Battery
2V 3000Ah OPzV Tubular Gel Solar Power Storage Sealed Lead Acid Rechargeable Battery
2V 3000Ah OPzV Tubular Gel Solar Power Storage Sealed Lead Acid Rechargeable Battery
2V 3000Ah OPzV Tubular Gel Solar Power Storage Sealed Lead Acid Rechargeable Battery
2V 3000Ah OPzV Tubular Gel Solar Power Storage Sealed Lead Acid Rechargeable Battery
2V 3000Ah OPzV Tubular Gel Solar Power Storage Sealed Lead Acid Rechargeable Battery
2V 3000Ah OPzV Tubular Gel Solar Power Storage Sealed Lead Acid Rechargeable Battery
2V 3000Ah OPzV Tubular Gel Solar Power Storage Sealed Lead Acid Rechargeable Battery
2V 3000Ah OPzV Tubular Gel Solar Power Storage Sealed Lead Acid Rechargeable Battery
2V 3000Ah OPzV Tubular Gel Solar Power Storage Sealed Lead Acid Rechargeable Battery
2V 3000Ah OPzV Tubular Gel Solar Power Storage Sealed Lead Acid Rechargeable Battery
2V 3000Ah OPzV Tubular Gel Solar Power Storage Sealed Lead Acid Rechargeable Battery
2V 3000Ah OPzV Tubular Gel Solar Power Storage Sealed Lead Acid Rechargeable Battery
2V 3000Ah OPzV Tubular Gel Solar Power Storage Sealed Lead Acid Rechargeable Battery

2V 3000Ah OPzV Tubular Gel Solar Power Storage Sealed Lead Acid Rechargeable Battery

Model NO.
OPzV2-3000 OPzV battery
Delivery:
EXW,FOB,FCA,CIF,CFR
Minimum order quantity:
24 pieces
Supply Ability:
100000 pieces / Month
Country of Origin:
Shenzhen/Guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Sealed Type:Sealed
  • Maintenance Type:Free
  • Certification:UL
  • Certification:ce
  • Usage:battery for solar & windsystem, telecom, ups system
  • Brand Name:CSPOWER
  • Model Number:OPzV2-3000 OPzV battery
  • Weight:226 kgs OPzV battery

Sealed 2V 3000ah OPzV Tubular Gel Solar Power Storage Battery


1. Over 20 years design life at floating condition @ 25°C
2. Wide operating temperature range from -40°C to 60°C
3. Tubular positive plate with prolonged cycle life
4. Fumed Silica gel electrolyte
5.Lead Calcium die cast grid with improved corrosion resistance capability
6. Low self-discharge rate and long shelf life
7. Excellent deep discharge recovery capability

CSPOWER Tubular Plate OpzV Battery OPzV2-3000 Specification

OPzV2-3000

Nominal Voltage

2V(Single Cell)

Design Floating Life @ 25℃

25 Years

Nominal Capacity @ 25℃

10 hour rate @300.0A,1.8V

3000Ah

Capacity @ 25℃

20hour rate (157.5A,1.8V )

3150Ah

5 hour rate (510A,1.75V )

2550Ah

1 hour rate (1896A,1.6V )

1896Ah

Internal Resistance

Full Charged Battery @ 25℃

≤0.19mΩ

Ambient Temperature

Discharge

-40℃~70℃

Charge

-0℃~50℃

Storage

-20℃~60℃

Max.Discharge Current

@ 25℃ 12000A(5s)

Capacity affected by Temperature (10 hour )

40℃

105%

25℃

100%

0℃

89%

-15℃

79%

Self-Discharge@25℃per Month

2%

Charge (Constant Voltage) @ 25℃

Standby Use

Initial Charging Current Less than 600.0A Voltage 2.25-2.3V

Cycle Use

Initial Charging Current Less than 600.0A Voltage 2.37-2.4V

Dimension (mm*mm*mm)

Length 576±1 * Width 212±1 * Height 792±1 (Total Height 807±1)

Weight (kg)

226±3%

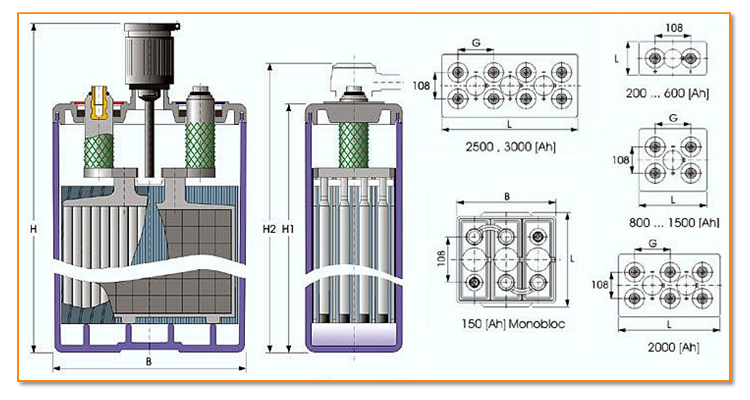

101 Solar battery structure.PNG


Q: Can you print my logo on the battery cover?

A:Yes, OEM is available,we can print your logo on the battery case freely. Welcome to send us your logo design and discuss with us about the details.

Q:How long is your delivery time?

A:Usually it takes about 10-20 days for production varies with products. Urgent delivery it in 5days.

Q: What is your warranty policy?

A: We provide 1 ~ 5 years different warranty.

Q:Why Choose CSPOWER?

A: 1) Nearly 13 years leading manufacturer,all production lines in our factory are automatic and imported from Germany.

2) 20000KWH production capacity to guarantee the best deliver time

3) The good construction warranty - 1-5 years free replacement no need return.

4) Comprehensive certificates approval: CE / ISO / IEC

5) The reasonable and most competitive price without sacrifice of quality.

6) A professional experienced team to provide you high-quality service before and after sale.
