Model NO.
HTL6-330
Price:
USD 159.00-178.00 / pieces
Delivery:
EXW,FOB,FCA,CIF,CFR
Minimum order quantity:
24 pieces
Supply Ability:
100000 pieces / Month
Country of Origin:
Shenzhen/Guangdong/Foshan
Quantity:
  • Place of Origin:CN;GUA

  • Sealed Type:Sealed

  • Brand Name: CSPOWER/OEM brand

  • Maintenance Type:Free

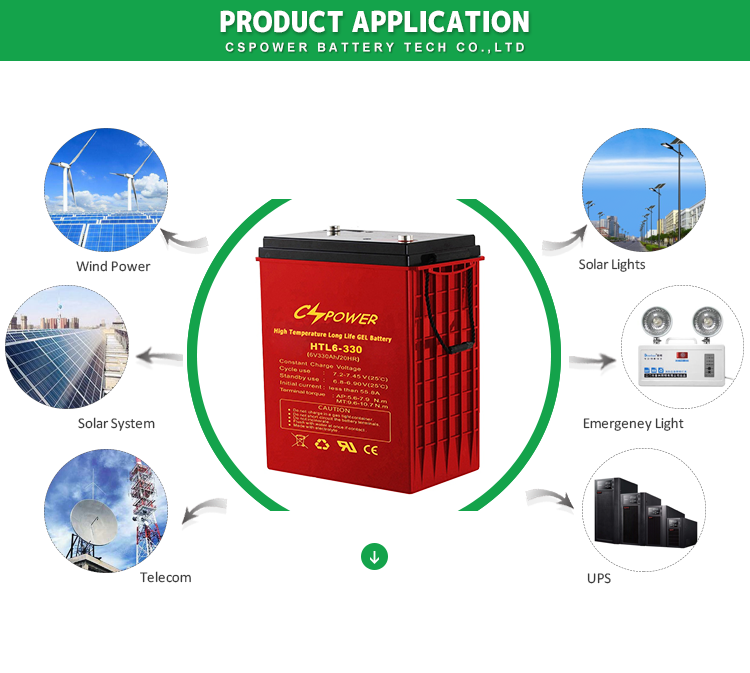

  • Usage: Solar, Wind energy system, UPS system, Marine system, Golf Cart

  • Model Number: HTL6-330

  • Weight:46.9kg

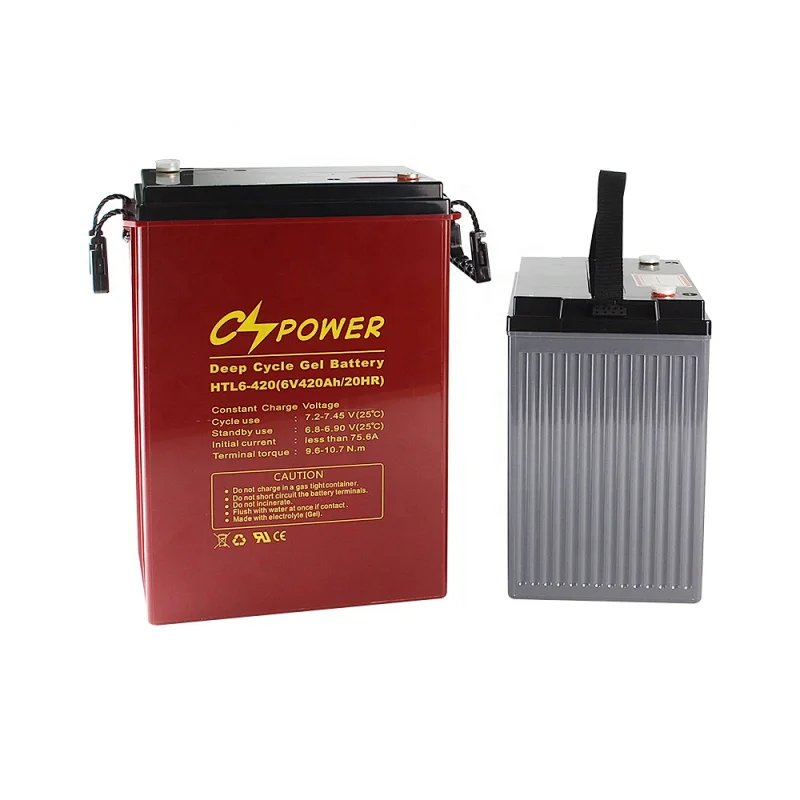

6 volt 330ah 420ah deep cycle Gel batteries for solar inverters system

forklift battery for solar systemhigh quality forklift battery for solar system

1. Three years warranty at 35°C-40°C average
2. Able to operate at -40°C to 60°C
3. Longer life and higher stability under high temp. environment (Perfect to be applied to renewable energy system or hybrid power system at tough condition.)
4. Adopt Super-C additives lead plates: Deep discharge recovery capability
5. Deep Cycle usage: 50% DOD, 1500-1600 Cycles work in high/cold temp. area.

China forklift battery for solar system

Product Parameters

CSPOWER HTL6-330 High temperature deep cycle gel battery specificaiton

HTL6-330

Nominal Voltage

6V (3 cells per unit)

Design Floating Life @ 25℃

20 Years

Nominal Capacity @ 25℃

20 hour rate@ 21.0A, 5.4V

330Ah

Capacity @ 25℃

10 hour rate (37.8A, 5.4V)

297Ah

5 hour rate (66.8A, 5.25V)

262.5Ah

1 hour rate (233.3A, 4.8V)

183.3Ah

Internal Resistance

Full Charged Battery@ 25℃

≤1.6mΩ

Ambient Temperature

Discharge

-25℃~60℃

Charge

-25℃~60℃

Storage

-25℃~60℃

Max.Discharge Current

@ 25℃ 1000A(5s)

Capacity affected by Temperature (10 hour )

40℃

108%

25℃

100%

0℃

90%

-15℃

70%

Self-Discharge@25℃per Month

3%

Charge (Constant Voltage) @ 25℃

Standby Use

Initial Charging Current Less than 66A Voltage 6.8 - 6.9V

Cycle Use

Initial Charging Current Less than 66A Voltage 7.2 - 7.45V

Dimension (mm*mm*mm)

Length 295±1 * Width 178±1 * Height 354±1 (Total Height 360±1)

Weight (kg)

46.8±3%

forklift battery for solar system wholesale

forklift battery for solar system manufacturers

After the Development of Time and the Development of Modern Technology Trends, the Forklift Battery for Solar System Industry Has Also Advanced by Leaps and Bounds. in Recent Years, Our Company Has Also Devoted Itself to the Research and Experiment of Forklift Battery for Solar System, Combined with the Valuable Opinions and Requirements of Customers, After Several Years of Renewal, Perfect Upgrades Time After Time, and Finally Launched a New Generation of Forklift Battery for Solar System, Which Is Safe and Durable, and Has Longer Battery Life.
