Model NO.
CG2-400 gel battery
Delivery:
EXW,FOB,FCA,CIF,CFR
Minimum order quantity:
24 pieces
Supply Ability:
100000 pieces / Month
Country of Origin:
Shenzhen/Guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Sealed Type:Sealed
  • Maintenance Type:Free
  • Certification:UL
  • Certification:ce
  • Usage:olar, inverter, telecom, ups system etc
  • Brand Name:CSPOWER
  • Model Number:CG2-400 gel battery
  • Weight:26.5kgs gel battery

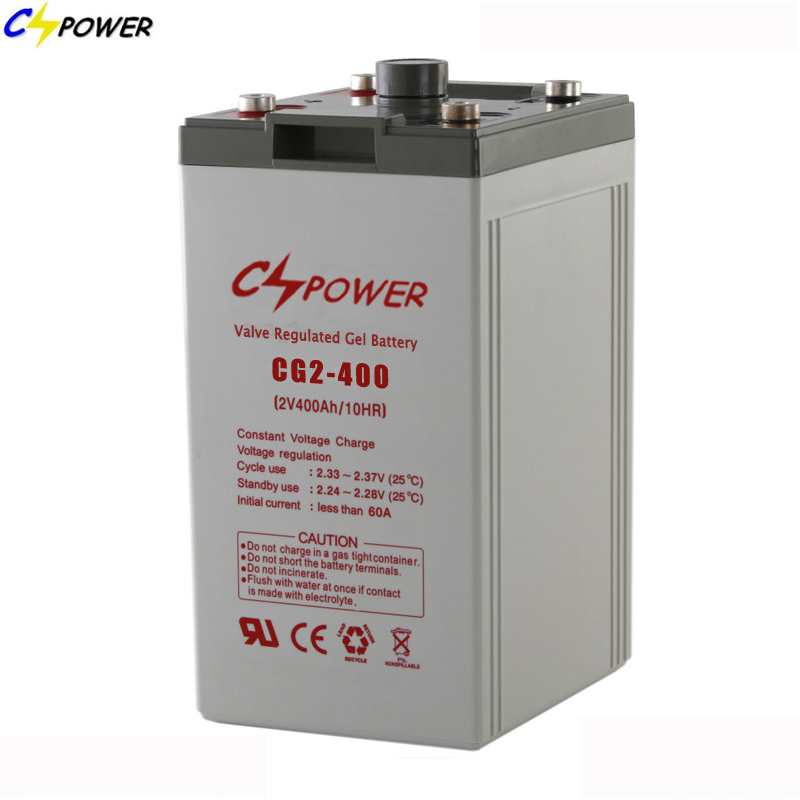

Maintenance Free Solar Cells 2V 400ah Gel Solar Battery

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>


CSPOWER CG2V series pure deep cycle Gel battery is with 15~20years floating design life.It is ideal for standy or frequent cylic discharge applications under extreme environments. By adopting thicker grids, high purity 99.999% lead and patented silicon gel electrolyte, CG2V series offers excellent recovery performance after deep discharge under frequent cyclic discharge use, and can deliver over 1500 cycles at 50% DOD even work in hot or cold area. Suitable for solar, CATV, marine, industry, RV and deep discharge UPS, communication, telecom and so on.

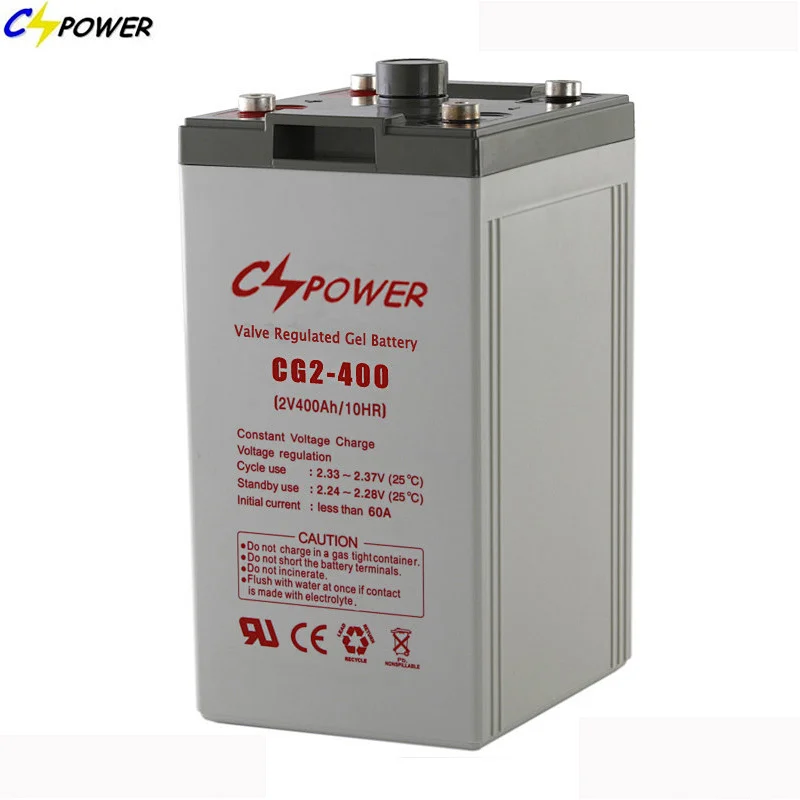

GEL Battery 2V

CG2-400
Nominal Voltage2V(Single Cell)
Design Floating Life @ 25℃15 Years
Nominal Capacity @ 25℃10 hour rate @ 40.0A,1.8V400Ah
Capacity @ 25℃20hour rate (21.2A,1.8V )424Ah
5 hour rate (71A,1.75V )355Ah
1 hour rate (242A,1.6V )242Ah
Internal ResistanceFull Charged Battery @ 25℃≤0.39mΩ
Ambient TemperatureDischarge-20℃~60℃
Charge-10℃~60℃
Storage-20℃~60℃
Max.Discharge Current@ 25℃ 800A(5s)
Capacity affected by Temperature (10 hour )40℃102%
25℃100%
0℃90%
-15℃70%
Self-Discharge @ 25℃per Month3%
Charge (Constant Voltage) @ 25℃Standby UseInitial Charging Current Less than 60A Voltage 2.23-2.27V
Cycle UseInitial Charging Current Less than 60A Voltage 2.33-2.37V
Dimension (mm*mm*mm)Length 211±1 * Width 175±1 * Height 330±1 (Total Height 366±1)
Weight (kg)26.5±3%

Summary for deep cycle solar battery2V

CSPOWER deep cycle GEL battery is designed for frequent cyclic charge and discharge applications under extreme environments. By combining the newly developed Nano Silicone Gel electrolyte with high density paste, the Solar range offers high recharge efficiency at very low charge current. The acid stratification is highly reduced by adding Nano Silicone Gel.

GEL Structure

Features for telecom battery, Long life GEL Battery

1. This stationary battery comes with a superior gel electrolyte where sulfuric acid is evenly mixed with silica fume and acid layering does not exist.

2. The electrolyte is gel like and immobile, which enables no leakage and uniform reaction of battery plates.

3. Serving as perfect power supply equipment, the front access lead acid battery is designed with slim shape. Front access terminal connection is convenient for installation and maintenance, and space serving.

4. Radial type grid design and tight assembly technology enable prominent high rate discharge performance for our GEL VRLA battery.

5. Due to a unique design, the electrolyte volume of this battery can not reduce in use, and it requires no watering during service life.

6. Special anti-corrosion grid alloy is utilized so that the energy storage device comes with more than 12years of design life at 25degree.

7. High purity raw materials ensure super low battery self discharge.

8. Thanks to the use of gas recombination technology, our industrial battery boasts extremely high seal reaction efficiency and yields no acid mist, thus friendly and pollution-free to the environment.

9. By means of special design and high reliable sealing technology, the battery is well sealed, thus ensuring definite safety.


Q: Can you print my logo on the battery cover?

A:Yes, OEM is available,we can print your logo on the battery case freely. Welcome to send us your logo design and discuss with us about the details.

Q:How long is your delivery time?

A:Usually it takes about 10-20 days for production varies with products. Urgent delivery it in 5days.

Q: What is your warranty policy?

A: We provide 1 ~ 5 years different warranty.

Q:Why Choose CSPOWER?

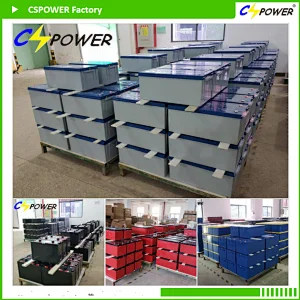

A: 1) Nearly 13 years leading manufacturer,all production lines in our factory are automatic and imported from Germany.

2) 20000KWH production capacity to guarantee the best deliver time

3) The good construction warranty - 1-5 years free replacement no need return.

4) Comprehensive certificates approval: CE / ISO / IEC

5) The reasonable and most competitive price without sacrifice of quality.

6) A professional experienced team to provide you high-quality service before and after sale.
