Model NO.
OPzV2-1200
Delivery:
EXW,FCA,FOB,CIF,CFR
Minimum order quantity:
24 pieces
Supply Ability:
100000 pieces / Month
Country of Origin:
Shenzhen port
Quantity:
  • Place of Origin:CN;GUA
  • Sealed Type:Sealed
  • Maintenance Type:Free

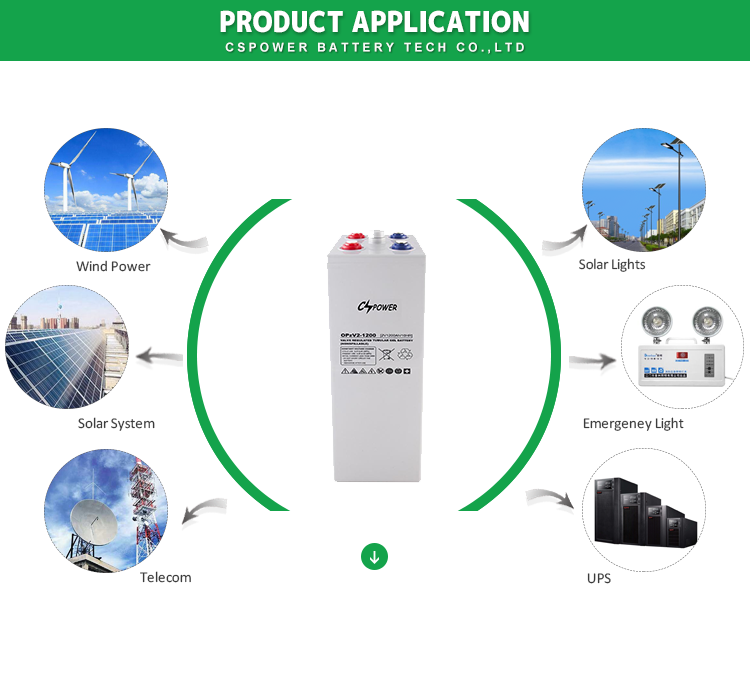

  • Usage:ups, solar, inverter, telecom
  • Brand Name:CSPOWER/OEM brand
  • Model Number:OPzV2-1200
  • Weight:92.5kg

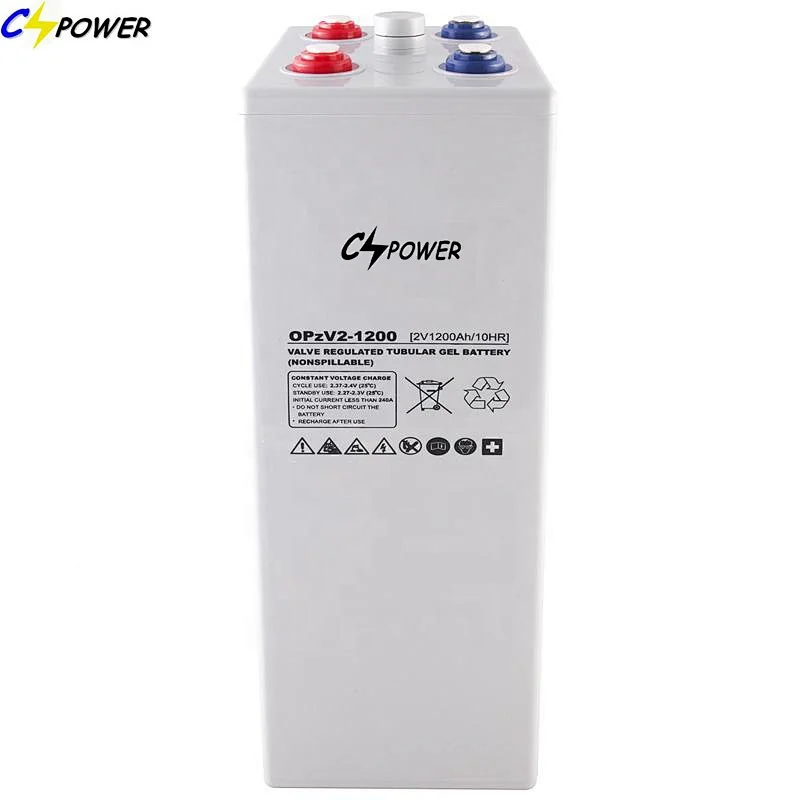

OPzV 2V 1200AH Solar Batteries Pure Gel Deep Cycle Battery For Solar Energy System

2v 1200ah batterydeep cycle battery 2v 1200ah2v 1200ah tubular gel battery

1. Over 20 years design life at floating condition @ 25°C
2. Wide operating temperature range from -40°C to 60°C
3. Tubular positive plate with prolonged cycle life
4. Fumed Silica gel electrolyte
5.Lead Calcium die cast grid with improved corrosion resistance capability
6. Low self-discharge rate and long shelf life
7. Excellent deep discharge recovery capability
lead acid battery solar battery 2v 1200ah
Product Description

OPzV2-1200

Nominal Voltage

2V(Single Cell)

Design Floating Life @ 25℃

25 Years

Nominal Capacity @ 25℃

10 hour rate @120.0A,1.8V

1200Ah

Capacity @ 25℃

20hour rate (63A,1.8V )

1260Ah

5 hour rate (204A,1.75V )

1020Ah

1 hour rate (758.4A,1.6V )

758.4Ah

Internal Resistance

Full Charged Battery @ 25℃

≤0.25mΩ

Ambient Temperature

Discharge

-40℃~70℃

Charge

-0℃~50℃

Storage

-20℃~60℃

Max.Discharge Current

@ 25℃ 4000A(5s)

Capacity affected by Temperature (10 hour )

40℃

105%

25℃

100%

0℃

89%

-15℃

79%

Self-Discharge @25℃per Month

2%

Charge (Constant Voltage) @ 25℃

Standby Use

Initial Charging Current Less than 240.0A Voltage 2.25-2.3V

Cycle Use

Initial Charging Current Less than 240.0A Voltage 2.37-2.4V

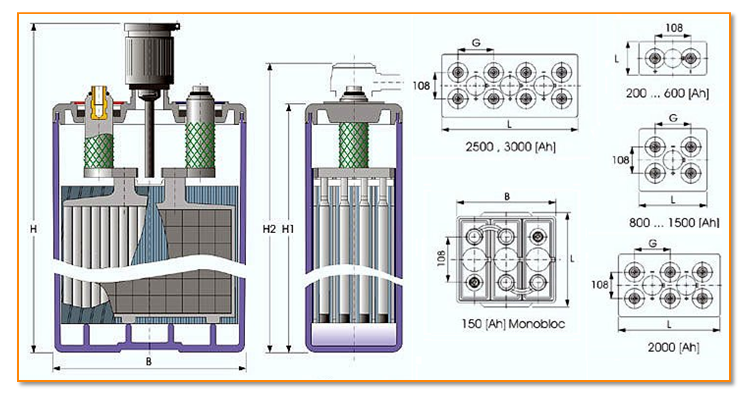

Dimension (mm*mm*mm)

Length 275±1 * Width 210±1 * Height 666±1 (Total Height 681±1)

Weight (kg)

92.5±3%

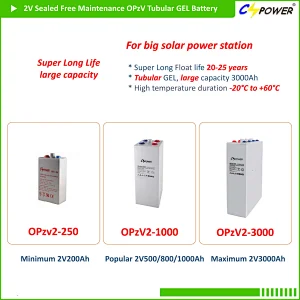

CSPOWER OPzV series Tubular GEL battery is with 25 years floating design life, it is a Valve Regulated Tubular Gel battery that adopts immobilized GEL and Tubular Plate technology to offer high reliability and performance. The Battery is designed and manufactured according to DIN standards and with die-casting positive grid and patent formula of active material. OPzV series exceeds DIN standard values with more than 25 years floating design life at 25℃ and is even more suitable for cyclic use under extreme operating conditions.

Solar battery

China Deep Cycle Solar OpzV Batteries1200AH pure gel solar batteryOpzv Tubular Gel Battery

Solar batterySolar battery

Q: Can you print my logo on the battery cover?

A:Yes, OEM is available,we can print your logo on the battery case freely. Welcome to send us your logo design and discuss with us about the details.

Q:How long is your delivery time?

A:Usually it takes about 10-20 days for production varies with products. Urgent delivery it in 5days.

Q: What is your warranty policy?

A: We provide 1 ~ 5 years different warranty.

Q:Why Choose CSPOWER?

A: 1) Nearly 13 years leading manufacturer,all production lines in our factory are automatic and imported from Germany.

2) 20000KWH production capacity to guarantee the best deliver time

3) The good construction warranty - 1-5 years free replacement no need return.

4) Comprehensive certificates approval: CE / ISO / IEC

5) The reasonable and most competitive price without sacrifice of quality.

6) A professional experienced team to provide you high-quality service before and after sale.
