Model NO.
HTL12-150 deep cycle battery
Delivery:
EXW,FOB,FCA,CIF,CFR
Minimum order quantity:
24 pieces
Supply Ability:
100000 pieces / Month
Country of Origin:
Shenzhen/Guangdong/Foshan
Quantity:

deep cycle battery solar panel charger

The deep cycle battery solar panel charger has good discharging performance, extended cycle life, and stable performance at high and low temperatures. The deep cycle battery solar panel charger is suitable for a wide range of energy storage applications, particularly renewable solar energy systems. The deep cycle battery solar kit has a three-year warranty at an average temperature of 35°C. The deep cycle battery solar kit has proven ability to work at 60°C.

deep cycle battery solar kit Cycle usage: 50% DOD for 1500 cycles, 30% DOD for 2400 cycles. Mechanism of solar batteries 25°C Floating Life: 20 years. The rate of self-discharge is 2% to 3% every month.

technical deep loop powerwall

--- For solar power station/Folklift/Golf buggies


  • Place of Origin:CN;GUA

  • Voltage:12v

  • Sealed Type:Sealed

  • Maintenance Type:Free

  • Usage:Folklift, Golf buggies,ups battery, caravan battery , inverter battery

  • Brand Name:CSPOWER

  • Model Number:HTL12-150 deep cycle battery

  • Size:484*171*241*241mm

  • Weight:33.6kgs deep cycle battery

  • Nominal Capacity:150ah

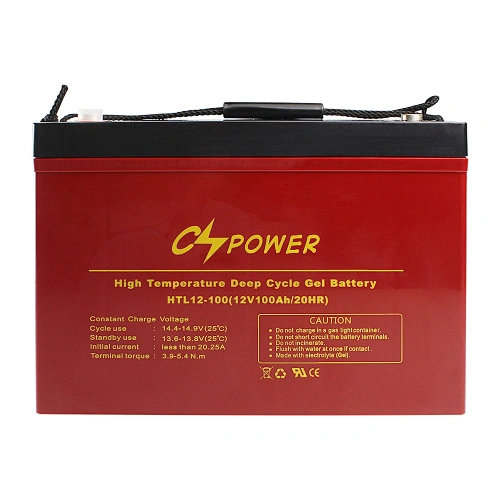

HTL12-100 HTL12-150 HTL12-200 OPzV2-1000

Technical Specs Deep Loop Powerwall Panel

Product Overviews

150ah solar battery

Technical Specs Deep Loop Powerwall Panel Product Description

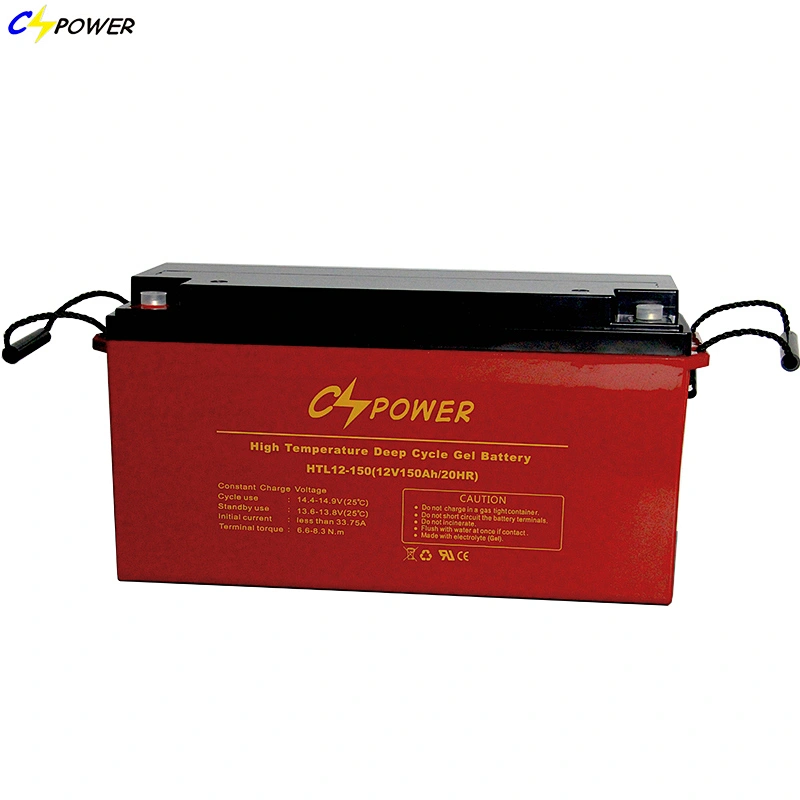

HTL12-150

Nominal Voltage

12V (6 cells per unit)

Design Floating Life @ 25℃

20 Years

Nominal Capacity @ 25℃

20 hour rate @ 21.0A, 5.4V

150Ah

Capacity @ 25℃

10 hour rate (37.8A, 5.4V)

135Ah

5 hour rate (66.8A, 5.25V)

119.5Ah

1 hour rate (233.3A, 4.8V)

86.6Ah

Internal Resistance

Full Charged Battery @ 25℃

≤4mΩ

Ambient Temperature

Discharge

-25℃~60℃

Charge

-25℃~60℃

Storage

-25℃~60℃

Max.Discharge Current

@ 25℃ 800A(5s)

Capacity affected by Temperature (10 hour )

40℃

108%

25℃

100%

0℃

90%

-15℃

70%

Self-Discharge @25℃per Month

3%

Charge (Constant Voltage) @ 25℃

Standby Use

Initial Charging Current Less than 33.75A Voltage 13.6 - 13.8V

Cycle Use

Initial Charging Current Less than 33.75A Voltage 13.6 - 13.8V

Dimension (mm*mm*mm)

Length 484±1 * Width 171±1 * Height 241±1 (Total Height 241±1)

Weight (kg)

45.7±3%

Inside, the HTL deep cycle gel solar battery uses a newly created nano gel electrolyte with super-C additive as well as heavy-duty plates. It does have a longer service life, even if used in deep cycle discharge, and can provide optimum and reliable service in challenging conditions such as high temperatures and frequent power outages, making it ideal for tropical applications such as Telecom BTS stations and off-grid PV systems.

Technical Specs Deep Loop Powerwall Panel

​​​​​​​Features and Advantages of high temperature deep cycle gel battery

1. Operating temperature range of -20°C to 60°C
2. Integrated design for optimal uniformity and durability
3. Longer lifespan and greater stability in high-temperature environments (no air-con needed)
4. Super-C additives: 1600 cycles @ 50% DOD, deep discharge recovery capabilities

200 Solar battery qc.PNG

high quality 150ah solar battery

China 150ah solar battery

150ah solar battery wholesale

CSPOWER 150ah Solar Battery Deep Cycle Panel Batteries
Safe and Durable, Long-lasting Power
Professional R&d and Production, Excellent Quality
Stable Voltage, Safe and Reliable
Good Conductivity, Good Contact with Equipment,
Reduce Current Consumption and Make Power Supply Normal
It Has Good Sealing, Heat Resistance, and Explosion-proof Properties.

CSPOWER 150ah Solar Battery
From Materials to Details, We Only Make Fine Products.
