Model NO.
HTL12-180 deep cycle battery
Delivery:
EXW,FOB,FCA,CIF,CFR
Minimum order quantity:
24 pieces
Supply Ability:
100000 pieces / Month
Country of Origin:
Shenzhen/Guangzhou
Quantity:

Energy Storage Technical Specs Powerwall Panel

Energy Storage Technical Specs Powerwall Panel has good discharging performance, extended cycle life, and stable performance at high and low temperatures. Energy Storage Technical Specs Powerwall Panel is suitable for a wide range of energy storage applications, particularly renewable solar energy systems. Energy Storage Technical Specs Powerwall Panel has a three-year warranty at an average temperature of 35°C to 40 °C. Energy Storage Technical Specs Powerwall Panel has proven ability to operate at 60°C. Cycle usage: 50% DOD for 1500 cycles, 30% DOD for 2400 cycles. Mechanism of solar batteries 25°C Floating Life: 15 years. The rate of self-discharge is 2% to 3% every month.

Energy Storage Technical Specs Powerwall Panel
  • Place of Origin:CN;GUA
  • Sealed Type:Sealed
  • Maintenance Type:Free
  • Certification:UL
  • Certification:ce
  • Usage:ups, solar, inverter, telecom,battery solar
  • Brand Name:CSPOWER
  • Model Number:HTL12-180 deep cycle battery
  • Weight:56.3 kgs deep cycle battery
Energy Storage Technical Specs Powerwall Panel

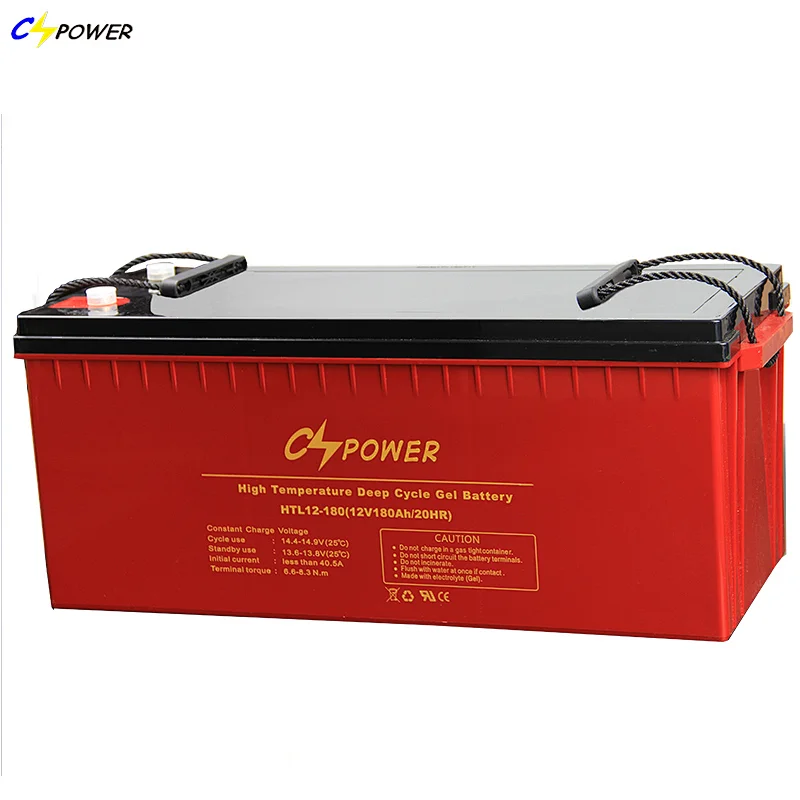

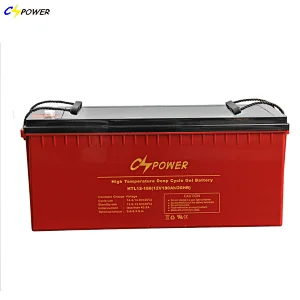

HTL12-180

Nominal Voltage

12V (6 cells per unit)

Design Floating Life @ 25℃

20 Years

Nominal Capacity @ 25℃

20 hour rate @ 21.0A, 5.4V

180Ah

Capacity @ 25℃

10 hour rate (37.8A, 5.4V)

162Ah

5 hour rate (66.8A, 5.25V)

143Ah

1 hour rate (233.3A, 4.8V)

104Ah

Internal Resistance

Full Charged Battery @ 25℃

≤3.5mΩ

Ambient Temperature

Discharge

-25℃~60℃

Charge

-25℃~60℃

Storage

-25℃~60℃

Max.Discharge Current

@ 25℃ 1080A(5s)

Capacity affected by Temperature (10 hour )

40℃

108%

25℃

100%

0℃

90%

-15℃

70%

Self-Discharge @25℃per Month

3%

Charge (Constant Voltage) @ 25℃

Standby Use

Initial Charging Current Less than 40.5A Voltage 13.6 - 13.8V

Cycle Use

Initial Charging Current Less than 40.5A Voltage 13.6 - 13.8V

Dimension (mm*mm*mm)

Length 532±1 * Width 206±1 * Height 216±1 (Total Height 221±1)

Weight (kg)

56.2±3%


Inside, the HTL deep cycle gel battery uses a newly created nano gel electrolyte with super-C additive as well as heavy-duty plates. It has a longer service life, even when used in deep cycle discharge, and can provide optimum and reliable service in difficult conditions such as high temperatures and frequent power outages, making it ideal for tropical applications such as Telecom BTS stations and off-grid PV systems

Energy Storage Technical Specs Powerwall Panel

Energy Storage Technical Specs Powerwall Panel  QC process

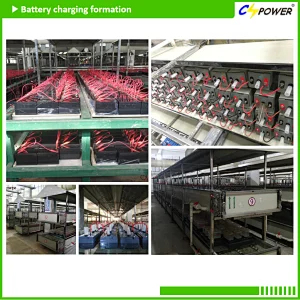

200 Solar battery qc.PNG

000 Solar battery production.PNG

Company Information

400 Solar battery factory.PNG

Our Services

401 Solar battery factory - 1.PNG

CSPOWER BATTERY TECH CO.,LTD is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.

Q: Can you print my logo on the battery cover?

A: Yes, OEM is available,we can print your logo on the battery case freely. Welcome to send us your logo design and dicuss with us about the details.

Q: How long is your delivery time?

A: Usually it takes about 10-20 days for production varies with products. Urgent delivery it in 5days

Q: What is your warranty policy?

A: We provide 1 ~ 5 years different warranty.

Q: Why Choose CSPOWER?

A: 1) Nearly 13 years leading manufacturer,all production lines in our factory are automatic and imported from Germany.

2) 20000KWH production capacity to guarantee the best deliver time

3) The good construction warranty - 1-5 years free replacement no need return.

4) Comprehensive certificates approval: CE / ISO / IEC

5) The reasonable and most competitive price without sacrifice of quality.

6) A professional experienced team to provide you high-quality service before and after sale.

Send Message

*
* clear input
* clear input

Related Products

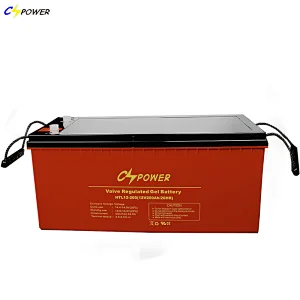

Model NO. HTL12-200 deep cycle battery
