Model NO.
CG12-100 gel battery
Delivery:
EXW,FCA,FOB,CIF,CFR
Minimum order quantity:
24 pieces
Supply Ability:
100000 pieces / Month
Country of Origin:
Shenzhen/Guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Sealed Type:Sealed
  • Maintenance Type:Free
  • Usage:ups, solar, inverter, telecom
  • Brand Name:CSPOWER
  • Model Number:CG12-100 gel battery
  • Weight:29kgs gel battery

Inverter Solar Deep Loop Powerwall Specs


1) Container/Cover: Made of UL94HB and UL 94-0ABS Plastic, fire resistance and water proof.
2) 99.997% pure new lead NEVER use recycle lead.
3) Negative Plates: Use the special PbCa alloy grids, optimize the recombination efficiency and less gassing.
4) High quality AGM separator: Absord acid electrolyte, the best retainer mat for VRLA batteries.
5) Positive plates: PbCa grids minimize corrosion and prolong life.
6) Terminal post: Copper or lead material with maximum conductivity, enhance the high current rapidly.
7) Vent Valve: Allows the release of the excess gas automatically for safety.
8) Three steps of Seal procedures: Ensure battery completely sealed with safety, never leakage and volatile acid, longer life.
9) Silicone Nano GEL electrolyte: Import from Germany Evonik famous brand silicone.
Product Description

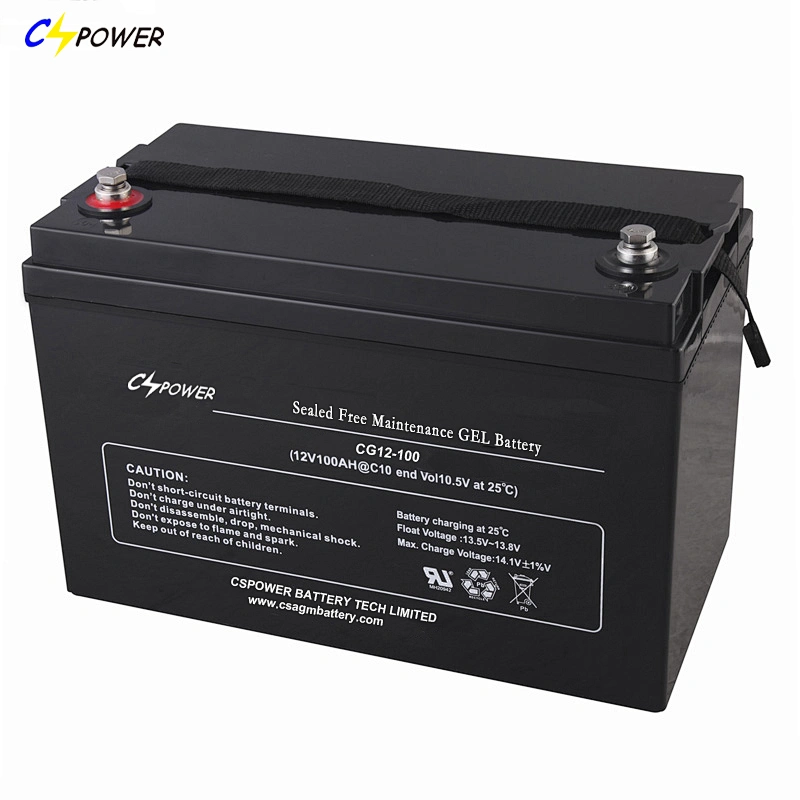

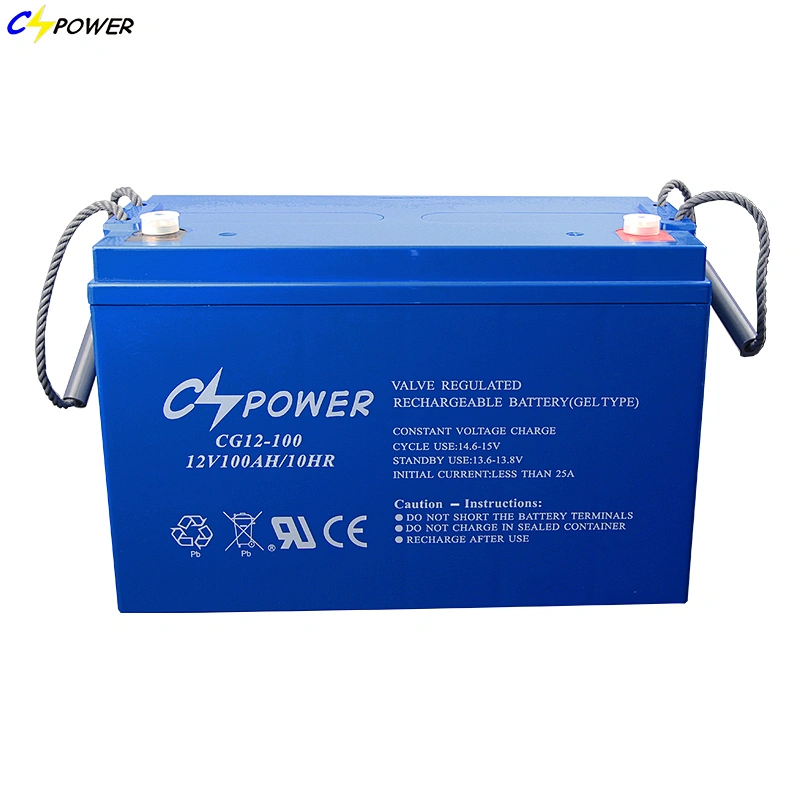

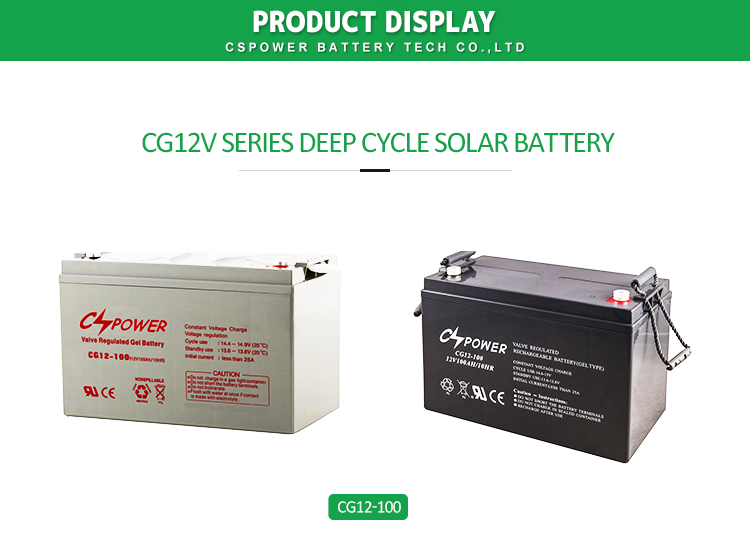

CG12-100

Nominal Voltage

12V (6 cells per unit)

Design Floating Life @ 25℃

15 Years

Nominal Capacity @ 25℃

10 hour rate @10.0A,10.8V

100Ah

Capacity @ 25℃

20 hour rate (5.55A, 10.8V)

111Ah

5 hour rate (18.3A, 10.5V)

91.5Ah

1 hour rate (46.5A,9.6V)

66.5Ah

Internal Resistance

Full Charged Battery @ 25℃

≤5.3mΩ

Ambient Temperature

Discharge

-20℃~60℃

Charge

-10℃~60℃

Storage

-20℃~60℃

Max.Discharge Current

@ 25℃ 600A(5s)

Capacity affected by Temperature (10 hour )

40℃

105%

25℃

100%

0℃

85%

-15℃

65%

Self-Discharge@25℃per Month

3%

Charge (Constant Voltage) @ 25℃

Standby Use

Initial Charging Current Less than 25A Voltage 13.6-13.8V

Cycle Use

Initial Charging Current Less than 25A Voltage 14.4-14.9V

Dimension (mm*mm*mm)

Length 331±1 * Width 174±1 * Height 214±1 (Total Height 219±1)

Weight (kg)

29±3%
