Model NO.
CS12-4
Delivery:
EXW,FCA,FOB,CIF,CFR
Minimum order quantity:
500 pieces
Supply Ability:
100000 pieces / Month
Country of Origin:
Shenzhen/Guangzhou/Foshan
Quantity:
  • Place of Origin:CN;GUA
  • Voltage:12v
  • Sealed Type:Sealed
  • Maintenance Type:Free
  • Usage:UPS,Emergency Lighting , Solar systems;Fire & security systems etc.
  • Brand Name:CSPOWER/ OEM Brand
  • Model Number:CS12-4
  • Size:90*70*101*107 (mm)
  • Weight:1.35kg
  • Nominal Capacity:4Ah

Sealed Free Maintenance 12V 4ah Lead Acid UPS Battery

Battery Features

CS 12V small capacity battery 4ah - 12ah sealead lead acid battery, ups battery.PNG

CSPOWER CS series Sealed free maintenance lead acid batteries are designed with AGM technology, high performance plates and electrolyte to gain extra power output for common power backup system applications widely used in the fields of UPS, Security and Emergency Lighting System.
They are sealed and free maintenance whole life, valve regulated type standby AGM battery, also named by VRLA battery, SLA battery, and SMF battery.

Product Parameters

1. cspower 12v 4ah 20hr sealed lead acid maintenance free sla batterySpecification

CS12-4

Nominal Voltage

12V (6 cells per unit)

Design Floating Life @ 25℃

5 Years

Nominal Capacity @ 25℃

20 hour rate@ 21.0A, 5.4V

4.0Ah

Capacity @ 25℃

10 hour rate (37.8A, 5.4V)

3.8Ah

5 hour rate (66.8A, 5.25V)

3.55Ah

1 hour rate (233.3A, 4.8V)

2.64Ah

Internal Resistance

Full Charged Battery@ 25℃

≤34.0mΩ

Ambient Temperature

Discharge

-15℃~45℃

Charge

-15℃~45℃

Storage

-15℃~45℃

Max.Discharge Current

@ 25℃ 24A(5s)

Capacity affected by Temperature (10 hour )

40℃

105%

25℃

100%

0℃

85%

-15℃

65%

Self-Discharge@25℃per Month

3%

Charge (Constant Voltage) @ 25℃

Standby Use

Initial Charging Current Less than 1.2A Voltage 13.6 - 13.8V

Cycle Use

Initial Charging Current Less than 1.2A Voltage 14.4 - 14.9V

Dimension (mm*mm*mm)

Length 90±1 * Width 70±1 * Height 101±1 (Total Height 107±1)

Weight (kg)

1.35±3%

More capacity details for the small capacity range,please kindly Clickhere

Product Application

301 Solar battery application.PNG

Applications for SLA battery

Uninterruptible power supplies (UPS); Inverter; Emergency Lighting Systems; Solar powered systems; Communication equipment; Fire & security systems; Telecommunication systems; Electronic cash registers; Electronic test equipment; processor based office machines; Control equipment; Electric powered bicycle and wheelchairs; Geophysical equipment; Marine equipment; Medical equipment; Portable cine & video lights; Television& video recorders; Vending machines; Alarm Systems, Computers; Power Tools; Toys; Geophysical Equipment; Vending Machines ; Other standby or primary power supplie

QC and Certification

200 Solar battery qc.PNG201 Solar battery Certification.PNG

All our energy storage batteries meet:

ISO9001, ISO14001, OHSAS18001, IEC61427, CE-EMC; CE-LVD and Solar Product Certification, etc.

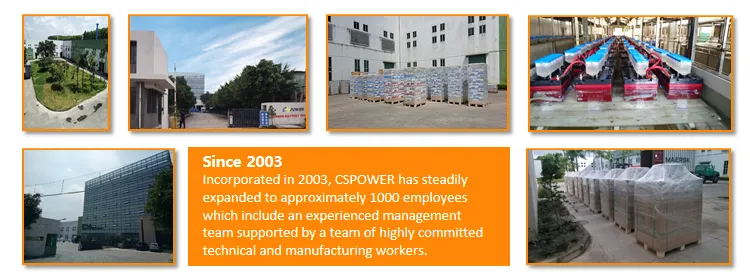

Factory Show

400 Solar battery factory.PNG401 Solar battery factory.PNG

CSPOWER BATTERY TECH CO.,LTD is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.

FAQ

Q: Can you print my logo on the battery cover?

A: Yes, OEM is available,we can print your logo on the battery case freely.

Q: Can I order the batteries with other colors that I want ?

A: Yes. Any special color that you would prefer to, welcome to discuss with us.

Q: How long is your delivery time?

A: Usually it takes about 10-20 days for production varies with products. Urgent delivery it in 5days

Q: What is your warranty policy?

A: We provide 1 ~ 5 years different free replacement warranty according to different battery series.

Q: Can we visit your factory ?

A: Welcome to visit our factroy any time when you're free. :)
